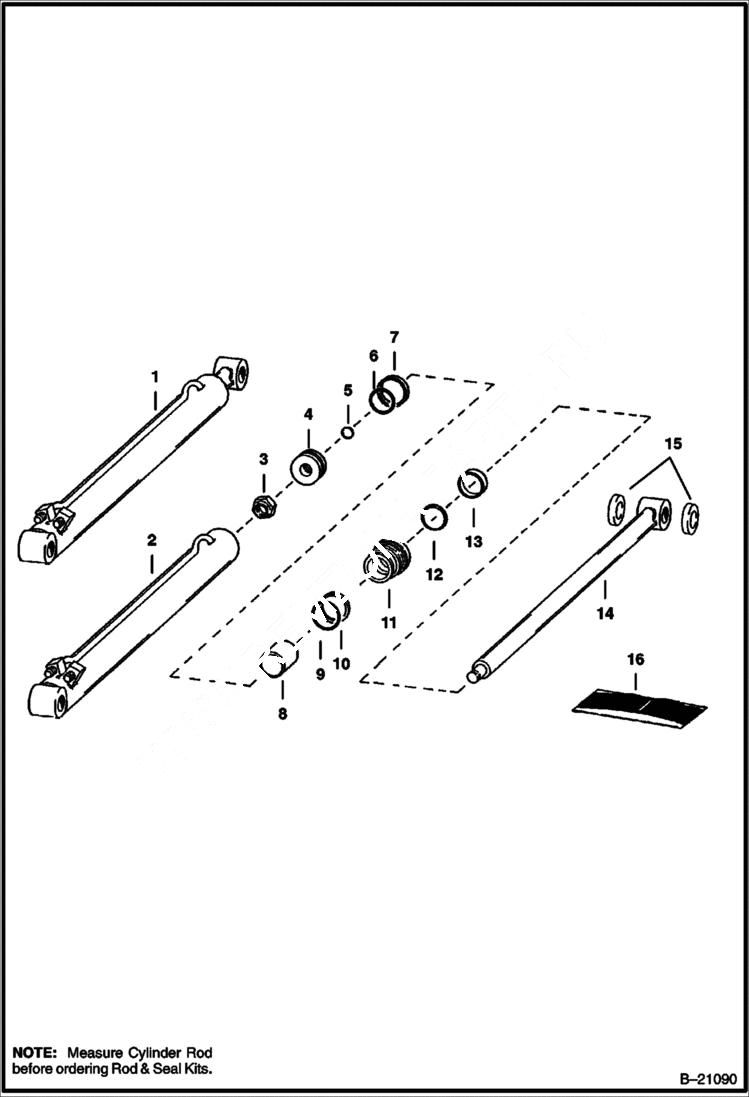

Запчасти Bobcat 800s LIFT CYLINDER (W/1-1/4 Rod) HYDRAULIC SYSTEM

1

CYLINDER NLA - Order 6554825 & (2) 6590841

1

CYLINDER NLA - Order 6554825 & (2) 6590841

2

CASE NLA - Was 6592025 - A

3

92D12

NUT Was 86D000012B - B

4

6543168

PISTON

5

O-RING NSS

6

O-RING NSS

7

RING NSS

8

6543169

SPACER

9

O-RING NSS

10

RING NSS - back-up

11

6543170

HEAD

12

SEAL NSS - v-cup

13

WIPER NSS - rod

14

ROD NLA - Order 6554026 & (2) 6590841

14

6554026

ROD

15

SPACER NLA - Was 6590841 - A

16

6588288

SEAL KIT Ref. 5 - 7, 9, 10, 12 & 13 - Was 6661317 - A
