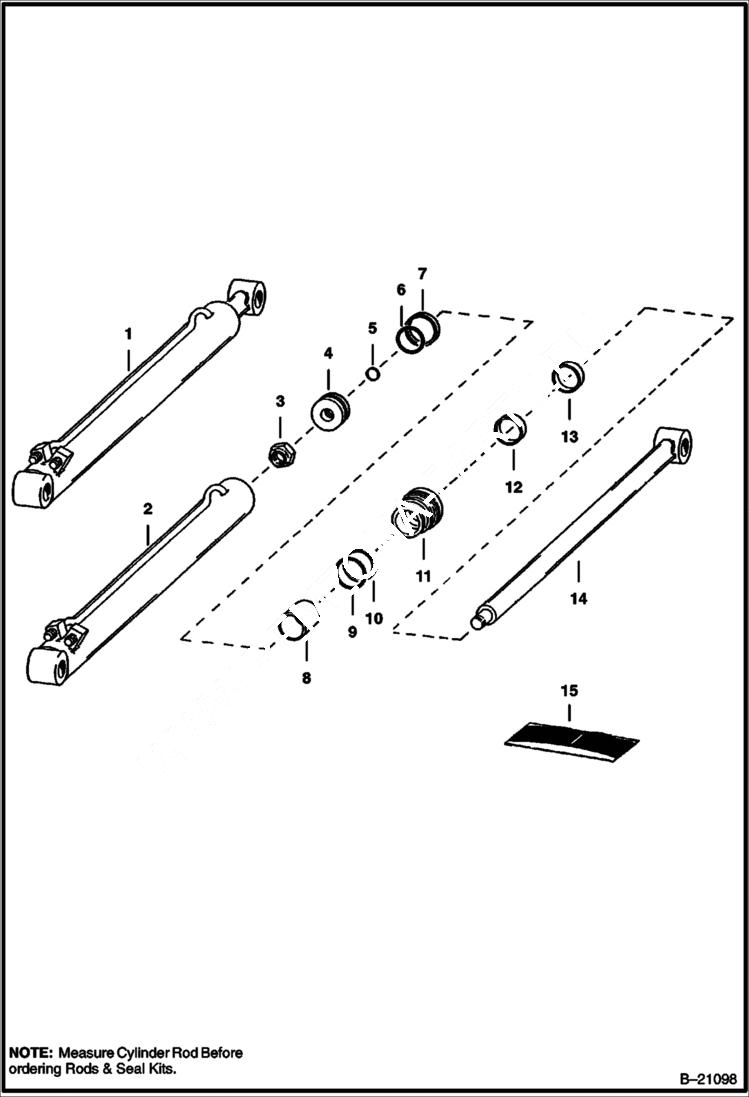

Запчасти Bobcat 800s LIFT CYLINDER (W/1-1/2 Rod - S/N 12001 & Above) HYDRAULIC SYSTEM

1

6554825

CYLINDER

2

CASE NLA - Was 6592025 - A

3

92D12

NUT Was 86D000012B - B

4

6543168

PISTON

5

O-RING NSS

6

25K30126

O RING 10

7

6519328

SEAL piston sealing

8

6555082

SPACER

9

25K60128

O RING 10 Was 54K60128 - B,D

10

73K328

RING back-up - Was 80K328 - B

11

6539236

HEAD Was 6555078 - A

12

6538141

SEAL v-cup

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

6555075

ROD

15

7138073

SEAL KIT W/Ref. 5, 6, 7, 9, 10, 12 & 13 - Was 6589793 - A
