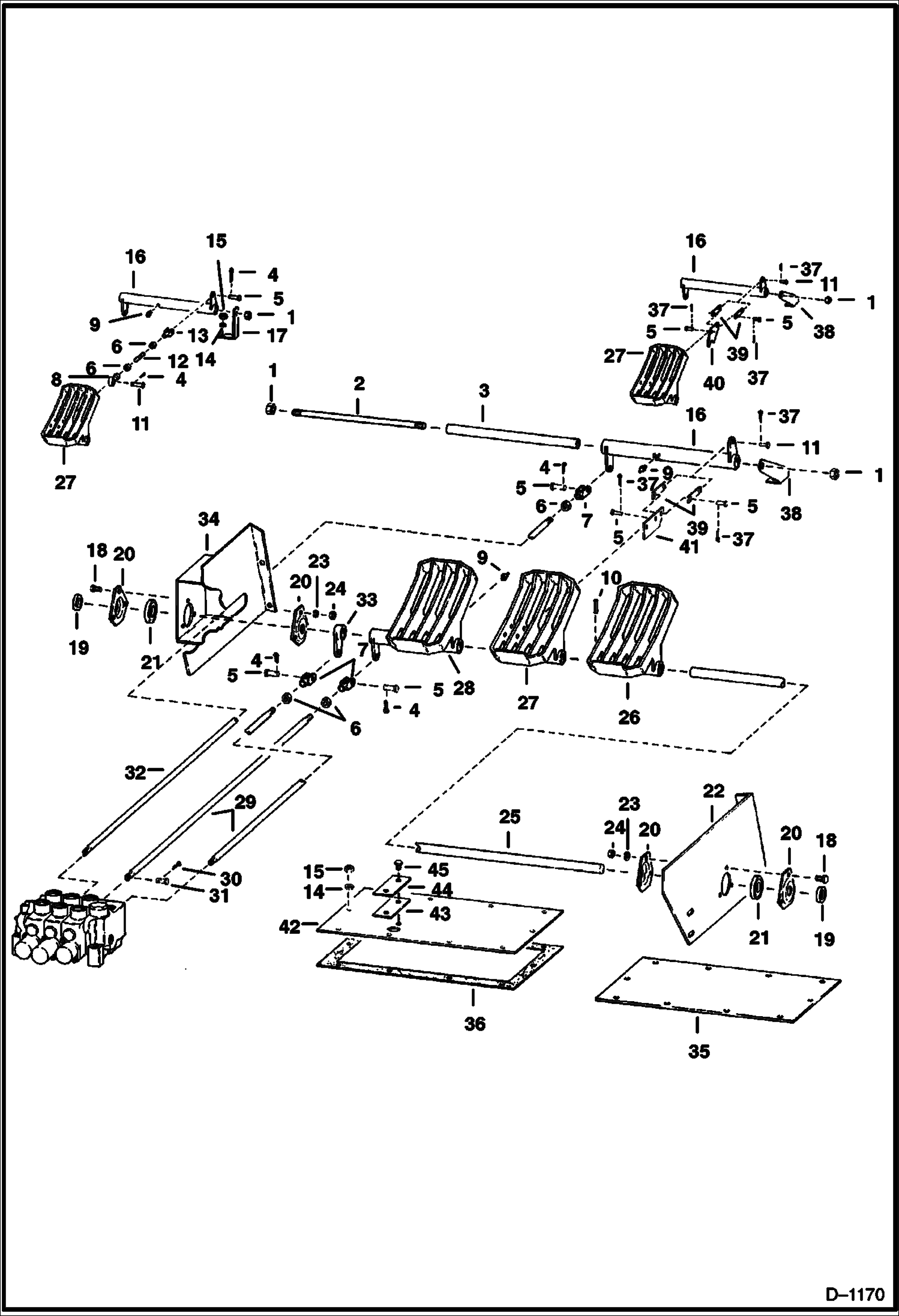

Запчасти Bobcat 800s CONTROL PEDAL ASSEMBLY HYDRAULIC SYSTEM

1

85D8

NUT, 5

2

6542039

ROD

3

6542042

BUSHING

4

1F312

PIN

5

4F6106

PIN

6

8D6

NUT 5

7

2J6208

YOKE

8

6512954

ROD END R.H. threads

9

38H25

FITTING

10

668312

PIN ROLL

11

224391

PIN

12

6542040

ROD

13

6508041

YOKE

14

4E6

WASHER

15

85D6

NUT, 5

16

BRACKET NLA - pivot - Order 6542042 & 6542043

16

6542043

BRACKET pivot

17

6553569

MOUNT

18

17C512

BOLT 5

19

6515095

COLLAR

20

6515096

FLANGE

21

6515103

BALL BEARING

22

6542052

PANEL side - R.H.

23

4E5

WASHER

24

85D5

NUT 5

25

6542045

SHAFT

26

6503996

PEDAL Tilt

27

PEDAL NLA - Was 6591418 - A

28

6542050

PEDAL Lift

29

6543337

ROD control

30

1F308

PIN, COTTER

31

1304227

PIN

32

6543338

ROD

33

6503999

ARM pivot

34

6542053

PANEL side - L.H.

35

PLATE NLA - floor - Order Ref. 42-45

36

GASKET NLA - Was 6562441 - A

37

1F416

PIN Was 1F000412B - D

38

6553569

MOUNT

39

6553568

LINK

40

6553570

PLATE

41

PLATE NLA - Was 6591417 - A

42

PLATE NLA - floor - Was 6563252 - A

43

GASKET NLA - Was 6563254 - A

44

GASKET NLA - Was 6563253 - A

45

84G3712

BOLT 5
