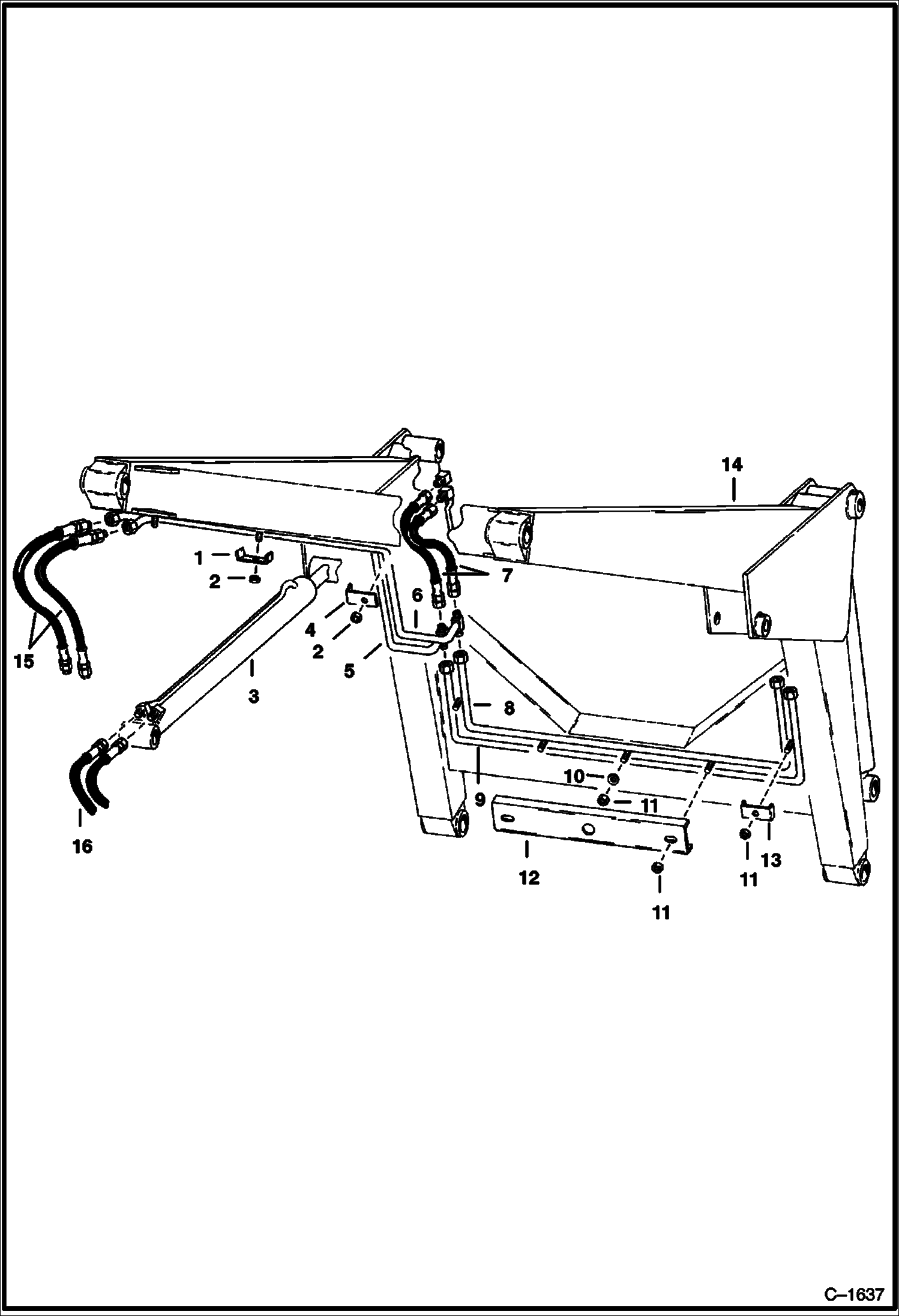

Запчасти Bobcat 800s LIFT ARM HYDRAULICS HYDRAULIC SYSTEM

1

6543241

CLAMP tube

2

85D5

NUT 5

3

CYLINDER See Illustration LIFT CYLINDER/ B21090 See Illustration LIFT CYLINDER/ B21098 LIFT

4

6543240

CLAMP tube

5

6543149

TUBE

6

6543147

TUBE

7

HOSE NLA - Was 6543161 - A

8

6543155

TUBE

9

6543157

TUBE

10

619021

WASHER, 5

11

85D6

NUT, 5

12

6543520

GUARD tube

13

6502203

CLAMP tube

14

CYLINDER See Illustration TILT CYLINDER/ C2079 See Illustration TILT CYLINDER/ B21092 See Illustration TILT CYLINDER/ B21091 TILT - R.H.

14

CYLINDER See Illustration TILT CYLINDER/ C2079 See Illustration TILT CYLINDER/ B21092 See Illustration TILT CYLINDER/ B21091 TILT - L.H.

15

1321719

HOSE

16

6543063

HOSE
