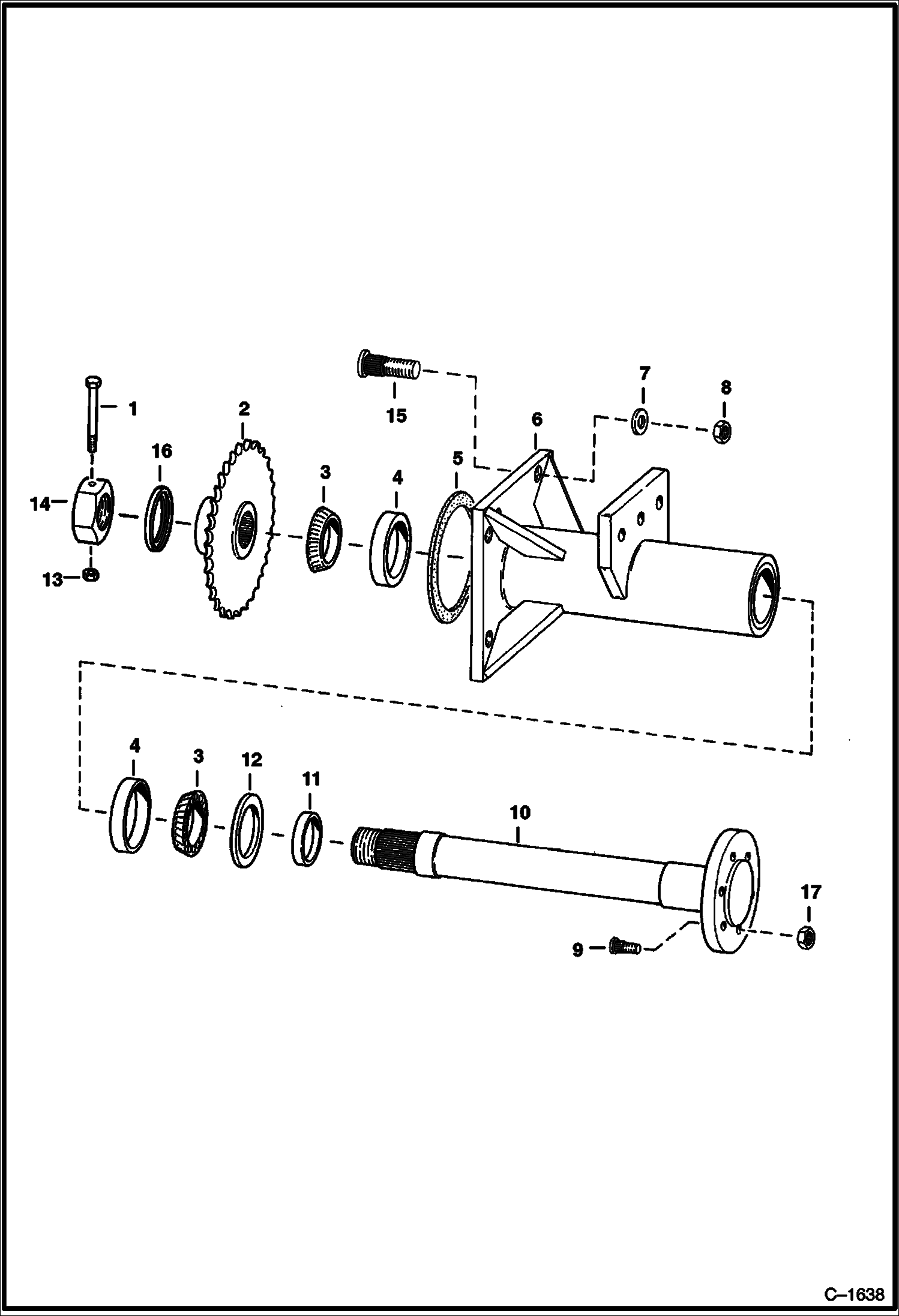

Запчасти Bobcat 800s AXLE DRIVE TRAIN

1

17C464

BOLT

2

6554039

SPROCKET axle

3

1321608

BEARING, CONE cone

4

1321607

CUP, BEARING bearing

5

6590934

GASKET

6

6543644

HOUSING Right Front, Left Rear

6

6543645

HOUSING Left Front, Right Rear

7

27E10

WASHER

8

62D10

NUT

9

6547499

BOLT wheel

10

AXLE NLA - W/Wheel Bolts - Was 6591070 - A

11

6543390

RING 2.75''I.D. - Use With Old Axle

11

6558693

WEAR RING 3.12'' I.D. - Use With New Axle

12

6511965

SEAL

13

85D4

NUT 5

14

NUT NLA - axle - Was 355595 - A

15

BOLT NLA - Was 6591064 - A

16

SPACER NLA - Was 6564259 - A

17

6564669

NUT, 10 wheel
