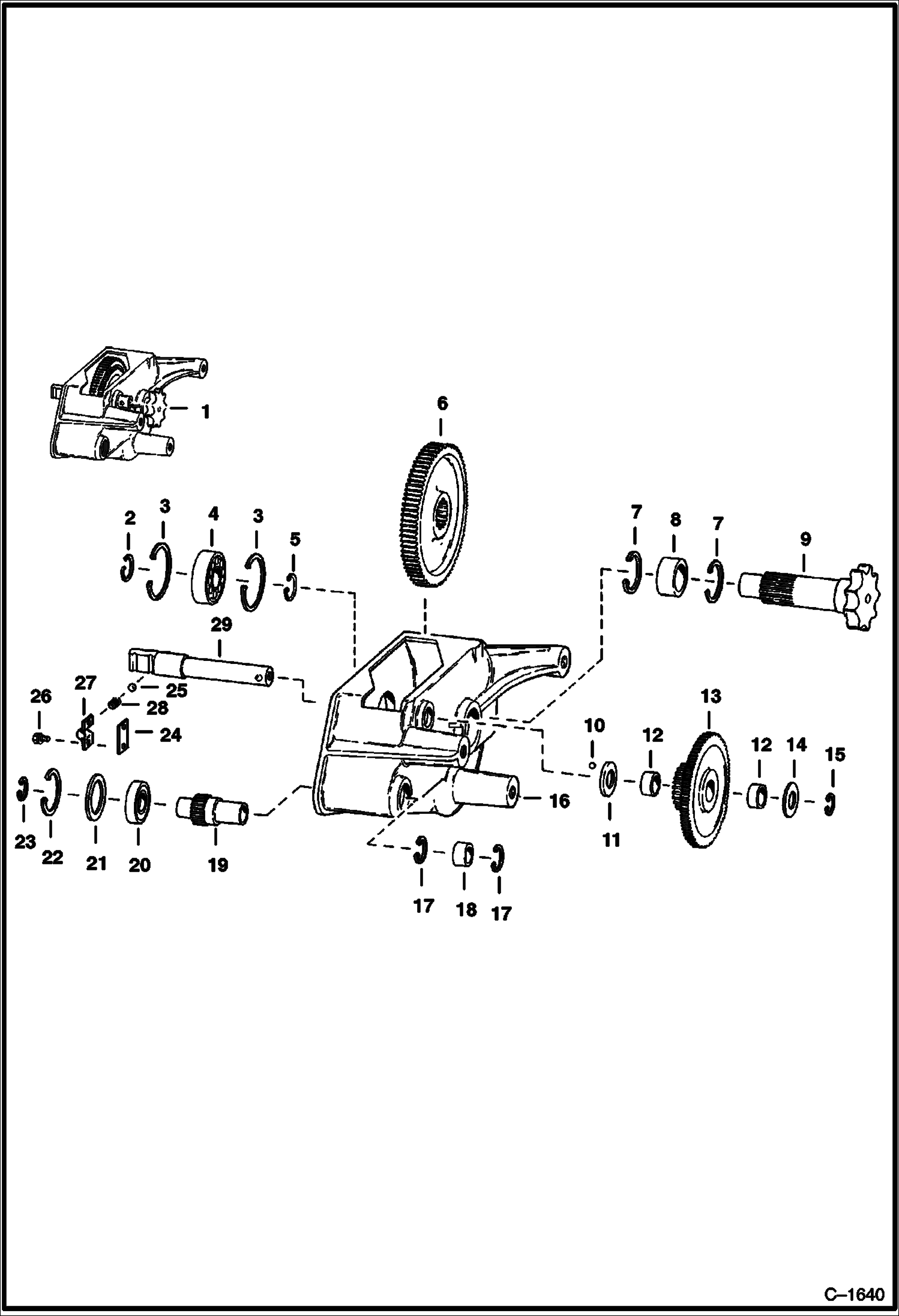

Запчасти Bobcat 800s REDUCTION GEARCASE DRIVE TRAIN

1

GEARCASE NLA - reduction - Order Components - Was 284138 - A

2

659065

RING

3

711022

SNAP RING

4

743439

BEARING

5

RING NLA - Was 223868 - A

6

GEAR NLA - Was 234015 - A

7

SNAP RING NLA - Was 1301040 - A

8

BEARING NLA - Was 763189 - A

9

SHAFT NLA - Was 234016 - A

10

10J8

BALL

11

WASHER NLA - Was 234013B - A

12

BEARING NLA - Was 233347 - A

13

GEAR NLA - Was 234011 - A

14

WASHER NLA - Was 234012 - A

15

RING NLA - Was 1300688 - A

16

234008

HOUSING

17

RING NLA - Was 218374 - A

18

BRG NLA - Was 712372 - A

19

SHAFT NLA - Was 234009B - A

20

BEARING NLA - Was 658039 - A

21

WASHER NLA - Was 234017 - A

22

RING NLA - Was 1321330 - A

23

RET RING NLA - Was 224035 - A

24

SPACER NLA - Was 234018 - A

25

10J18

BALL

26

BOLT NLA - W/lockwasher - Was 233128B - A

27

RETAINER NLA - spring - Was 234014 - A

28

SPRING NLA - Was 205411 - A

29

SHAFT NLA - intermediate - Was 234010 - A
