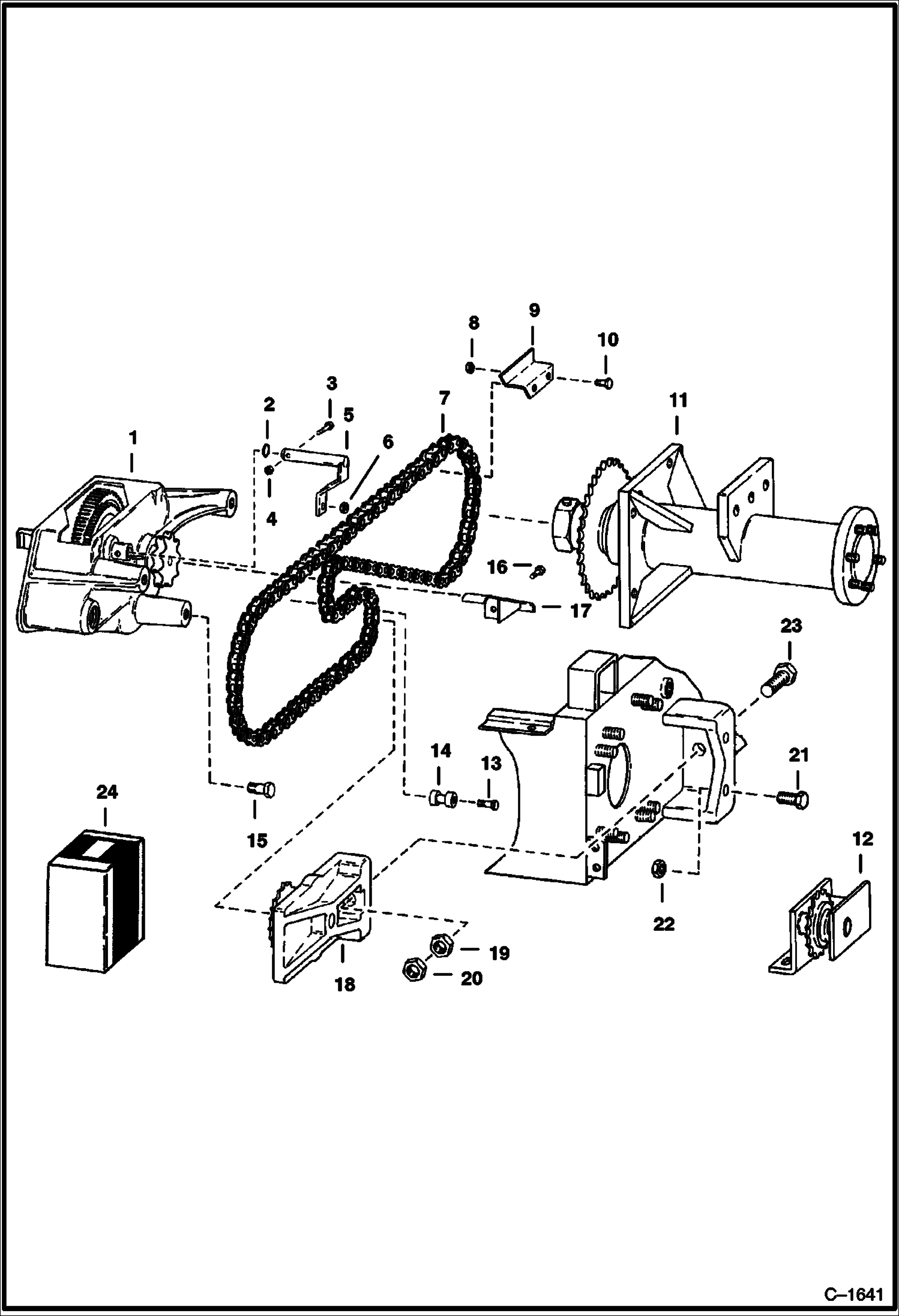

Запчасти Bobcat 800s DRIVE TRAIN DRIVE TRAIN

1

284138B

GEARCASE See Illustration REDUCTION GEARCASE/ C1640 NLA - reduction - Was 284138B - A

2

1524300

SEAL

3

17C428

BOLT

4

81D4

NUT

5

6543406

LEVER

5

LEVER NLA - Was 6590600 - A

6

55D6

NUT Was 6599334 - A

7

6543204

CHAIN

7

6510614

LINK Press Fit - Diamond

7

6591030

LINK Press Fit - Tsubaki

8

60D6

NUT

9

6552556

SUPPORT R.H. - Front & L.H.-Rear

9

6552555

SUPPORT L.H. - Front

10

18C620

BOLT

11

AXLE See Illustration AXLE/ C1638

12

IDLER See Illustration IDLER ASSEMBLY/ B1577

13

18C616

BOLT 5

14

6552558

SUPPORT R.H. - Rear

15

17C1224

BOLT

16

18C610

BOLT

17

6553375

GUIDE chain - R.H.

17

6553376

GUIDE chain - L.H.

18

IDLER See Illustration IDLER ASSEMBLY/ B2593

19

62D16

NUT

20

8D16

NUT

21

17C1232

BOLT

22

85D12

NUT, 5

23

18C1664

BOLT

24

6591051

KIT See Illustration EXTERNAL IDLER KIT/ C2316 EXTERNAL IDLER
