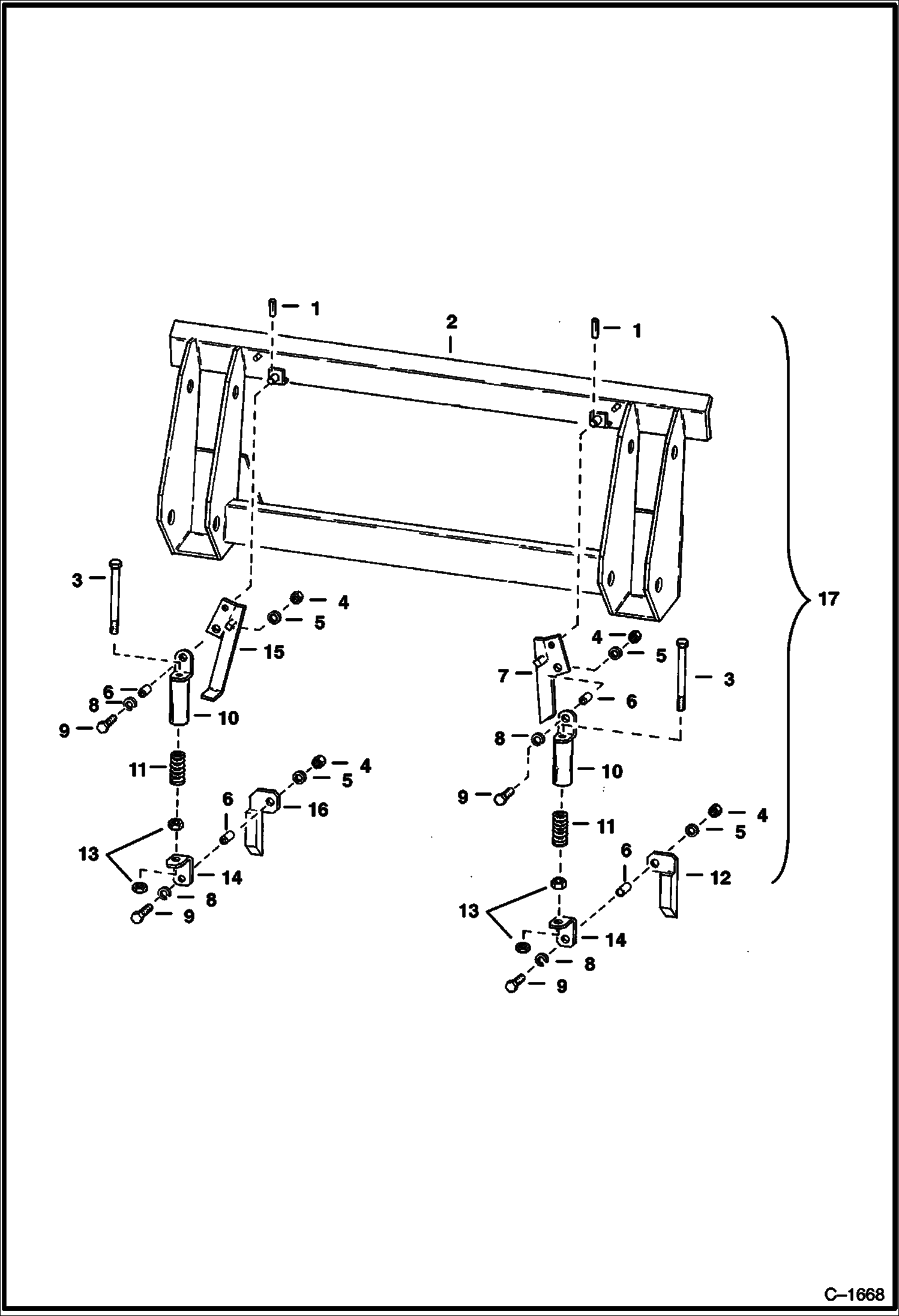

Запчасти Bobcat 800s BOB-TACH (S/N 11999 & Below) MAIN FRAME

1

PIN drive - Was 15J316 - A

2

FRAME See Illustration BOB-TACH/ B21089 NLA - ORDER 6549330

3

17C880

BOLT

4

61D6

NUT 5

5

25E17

WASHER 5

6

6541799

SPACER

7

6544409

LEVER R.H.

8

4E6

WASHER

9

17C624

BOLT 5

10

6541796

BRACKET spring

11

6540263

SPRING

12

6547625

WEDGE R.H.

13

61D8

NUT 5

14

6540262

ANGLE

15

6544408

LEVER L.H.

16

6547628

WEDGE L.H.

17

BOB-TACH NLA - assy. - Order 6549330
