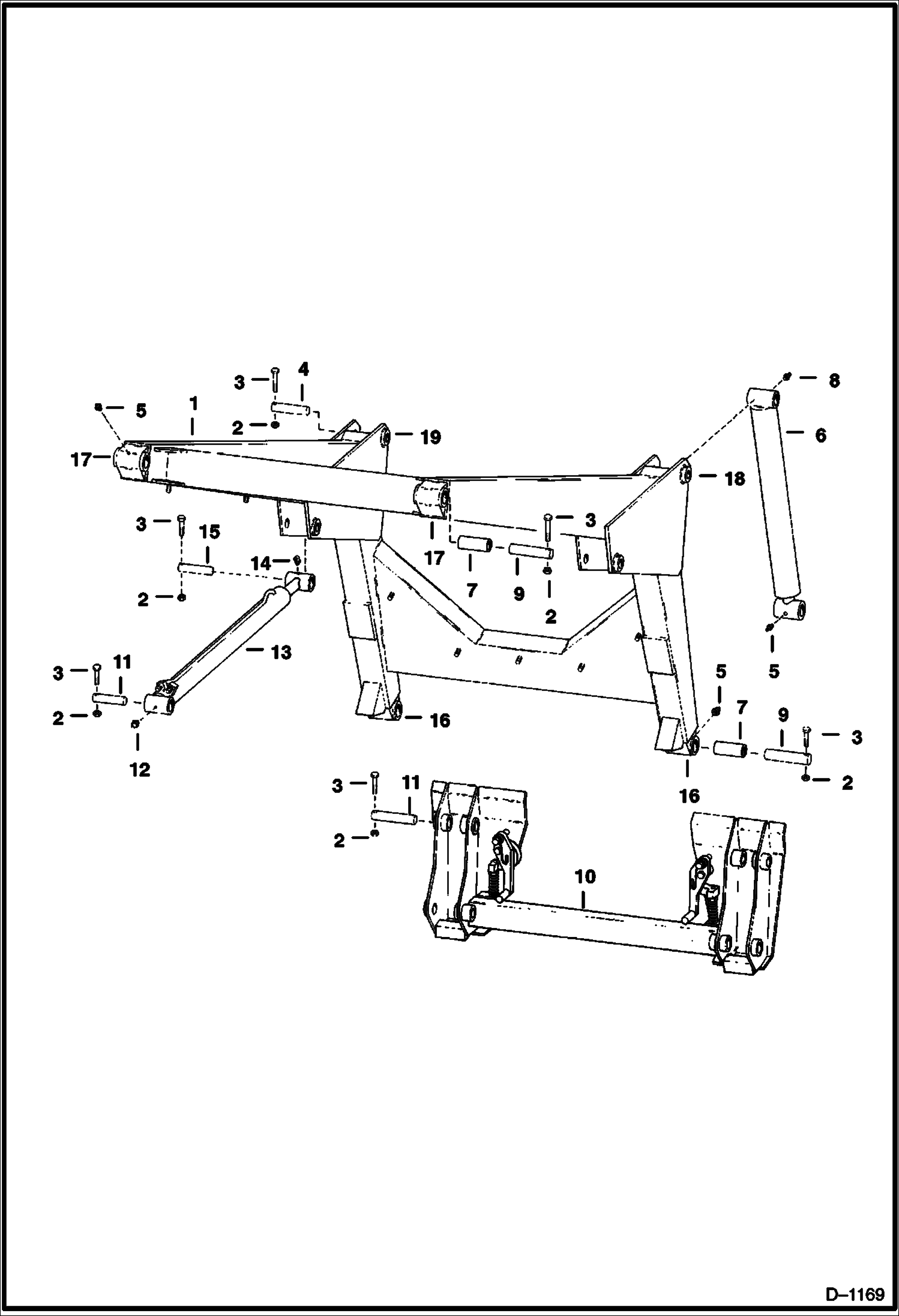

Запчасти Bobcat 800s LIFT ARMS & BOB-TACH MAIN FRAME

1

6554146

LIFT ARM

2

85D6

NUT, 5

3

17C648

BOLT 5

4

6543725

PIN

5

10H35

FITTING, GREASE 10

6

CYLINDER See Illustration TILT CYLINDER/ C2079 See Illustration TILT CYLINDER/ B21091 See Illustration TILT CYLINDER/ B21092 TILT

7

6541229

BUSHING

8

10H25

FITTING, GREASE 5

9

6543716

PIN

10

BOB-TACH See Illustration BOB-TACH/ B21089 See Illustration BOB-TACH/ C1668 NLA

11

6543715

PIN

12

12H15

FITTING, GREASE 5

13

CYLINDER See Illustration LIFT CYLINDER/ B21090 See Illustration LIFT CYLINDER/ B21098 LIFT

14

11H15

GREASE FITTING

15

6554025

PIN

16

6543116

PIVOT W/Ref. 7

17

6543119

PIVOT W/Ref. 7

18

6543719

BUSHING weld-on

19

6543720

BUSHING weld-on
