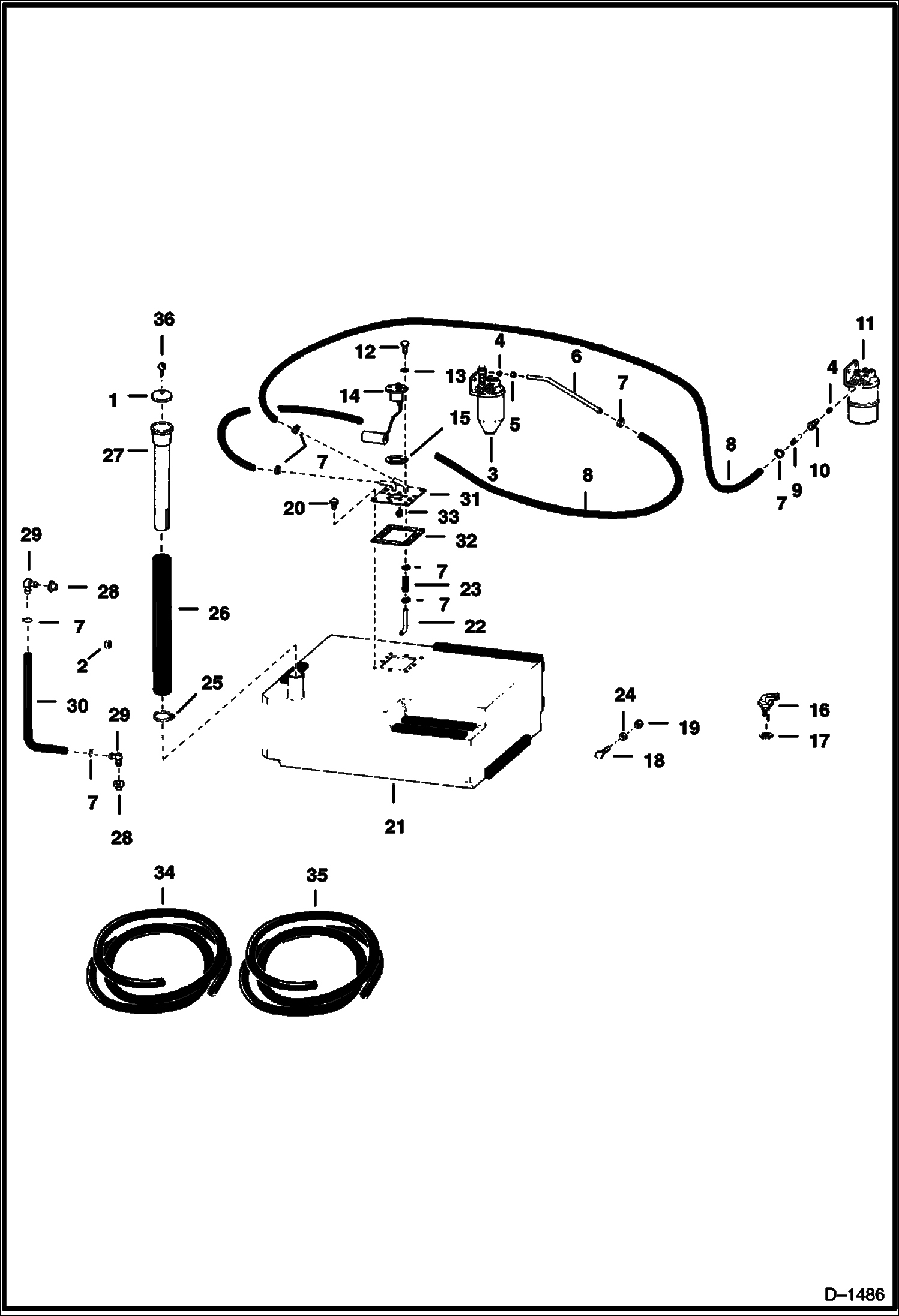

Запчасти Bobcat 800s FUEL SYSTEM MAIN FRAME

1

6515629

FUEL CAP fuel

1

6632468

CAP fuel - Was 6555717 - A

1

CAP NLA - locking - Code GC020 - W/Ref. 36 - Was 6654373 - A

1

6661696

CAP, FUEL LOCKING locking - Code PK510 - W/Ref. 36

2

61D6

NUT 5

3

6515756

FILTER See Illustration FUEL OIL FILTER/ C1801 FUEL

4

57F3

SLEEVE

5

58F3

NUT compression

6

6543392

TUBE

7

42HS04

CLAMP, HOSE Was 6515575 - A

8

HOSE NLA - return - 28'' (711,2 mm) long - Order Ref. 34 - Was 6590537 - A

8

HOSE NLA - return - 48'' (1219,2 mm) long - Order Ref. 34 - Was 6591390 - A

9

6543569

TUBE suction

10

3490354

NUT

11

6513104

TRAP

11

6598739

GASKET Upper

11

6598740

GASKET Lower

12

86G1008

SCREW

12

85G1010

SCREW

13

17E10

WASHER

14

5204933

SENDERKIT fuel level

15

6519201

GASKET

16

6519855

FITTING

17

6504426

GASKET

18

17C820

BOLT

19

81D8

NUT

20

14G1012

CAPSCREW

21

6543051

TANK fuel - Metal

21

TANK See BTI219 NLA - Was 6562110 - A

22

6543259

TUBE

22

TUBE NLA - Was 6591457 - A

23

HOSE NLA - 2'' (50,8mm) long - Order Ref. 34 - Was 6543387 - A

23

HOSE NLA - 3'' (76,2mm) long - Order Ref. 34 - Was 6591302 - A

24

25E22

WASHER

25

42H32

HS CLAMP5

26

6543208

HOSE

26

6555743

HOSE

27

6540232

TUBE

27

6555774

TUBE

28

6553411

BUSHING 0.38'' ID

29

6553412

ELBOW

30

HOSE NLA - 24'' (609,6mm) long - Order Ref. 35 - Was 6553410 - A

31

6555866

COVER

32

6552605

GASKET

33

50D10

LOCKNUT

34

6577821

HOSE bulk - sold per foot

35

6577822

HOSE bulk - sold per foot

36

6654374

KEY Code GC020

36

6587458

KEY Code PK510 - Was 6578458 - D
