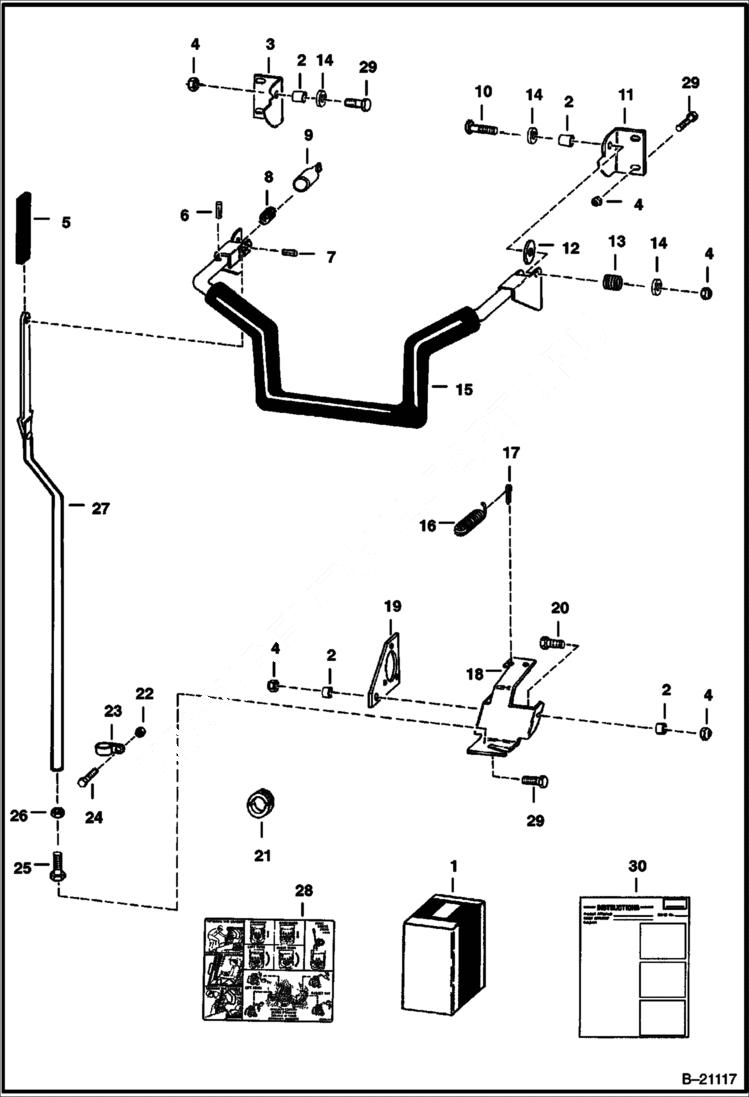

Запчасти Bobcat 800s SEAT BAR KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-30 - Was 6563675 - A

2

6562619

BUSHING

3

6563198

BRACKET

4

85D6

NUT, 5

5

GRIP NLA - Was 6563477 - A

6

14J3716

PIN

7

14J3724

PIN

8

6702430

SPRING, COMPRESSION Was 6563149 - A

9

6563200

PIN

10

17C636

BOLT

11

BRACKET NLA - Was 6563480 - A

12

6562127

WASHER

13

6562126

SPRING

14

27E6

WASHER 5

15

BAR NLA - Was 6563544 - A

16

SPRING NLA - Was 6563016 - A

17

1F612

COT.PIN

18

LOCK NLA - Was 6563479 - A

19

MOUNT NLA - Was 6563478 - A

20

BOLT NLA - carriage bolt - 3/8'' x 1'' - Was 7C000616B - A

21

CLAMP NLA - Was 6563133 - A

22

85D5

NUT 5

23

30H34

CLAMP

24

17C512

BOLT 5

25

17C516

BOLT

26

7D5

NUT

27

ROD NLA -Was 6563197 - A

28

6569022

DECAL

29

17C616

BOLT 5

30

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566231 - A
