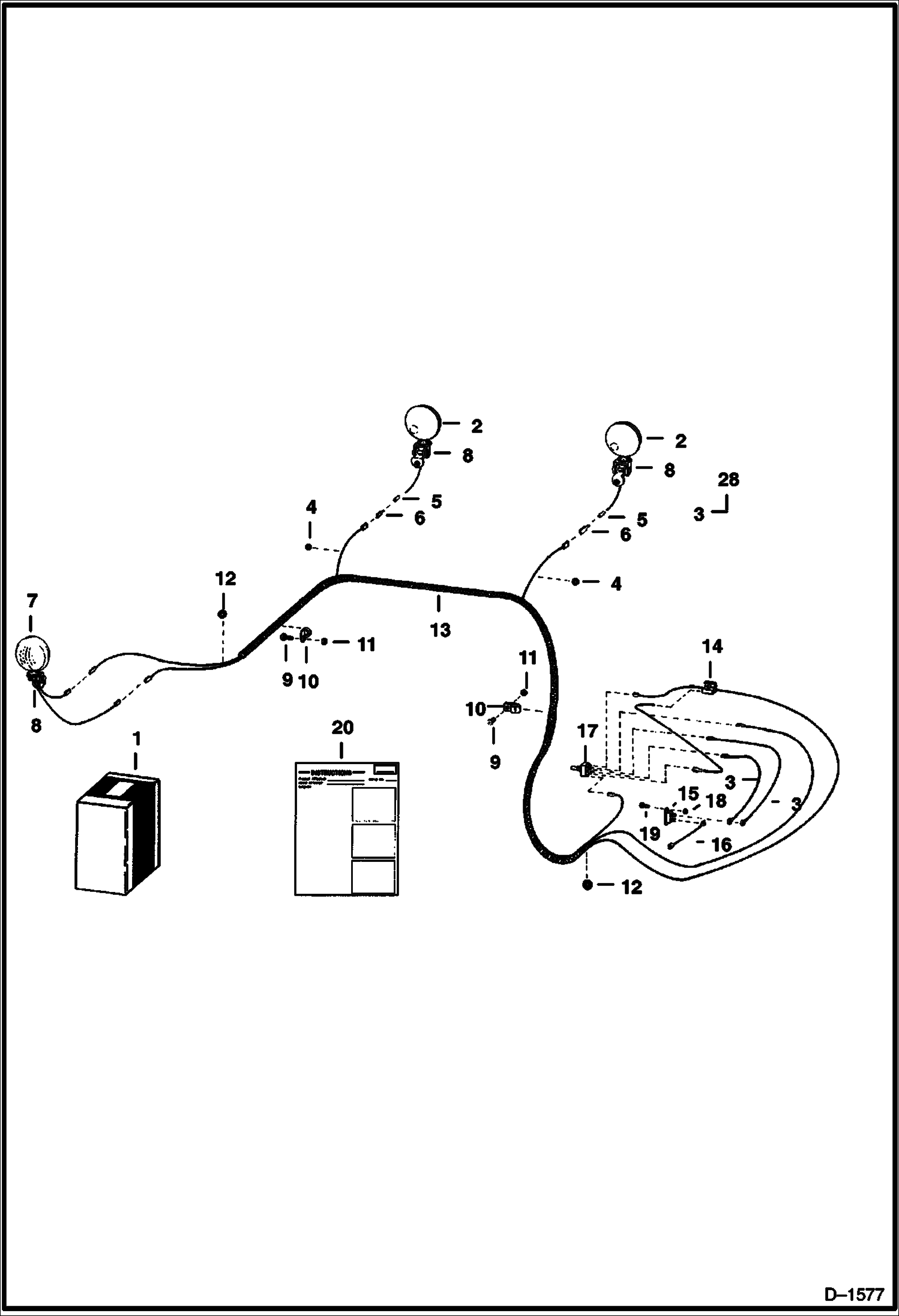

Запчасти Bobcat 800s LIGHT KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2 - 20 - Was 6563474 - A

2

LIGHT NLA - Order 6644980 or 6644961 - Was 6517676 - A

3

6542743

WIRE

4

6557493

GROMMET

5

614142

SLEEVE 10

6

6515131

TERMINAL

7

6519340

LIGHT

7

877752

4411 BULB

7

6655055

BULB Was 506475B - A

8

BRACKET NLA - Was 6547315 - A

9

37C616

BOLT Was 6514537 - A

10

30H27

CLAMP

11

61D6

NUT 5

12

730630

GROMMET

13

6552722

HARNESS

14

6513275

CONNECTOR

15

6519746

BREAKER

16

6542744

WIRE

17

6515522

SWITCH

18

12D10

NUT

19

87G1008

SCREW

20

6566186

INSTRUCTIONS
