FINAL DRIVE IDLER/ADJUSTMENT SPROCKET

Запчасти Bobcat 800s FINAL DRIVE IDLER/ADJUSTMENT SPROCKET ACCESSORIES & OPTIONS

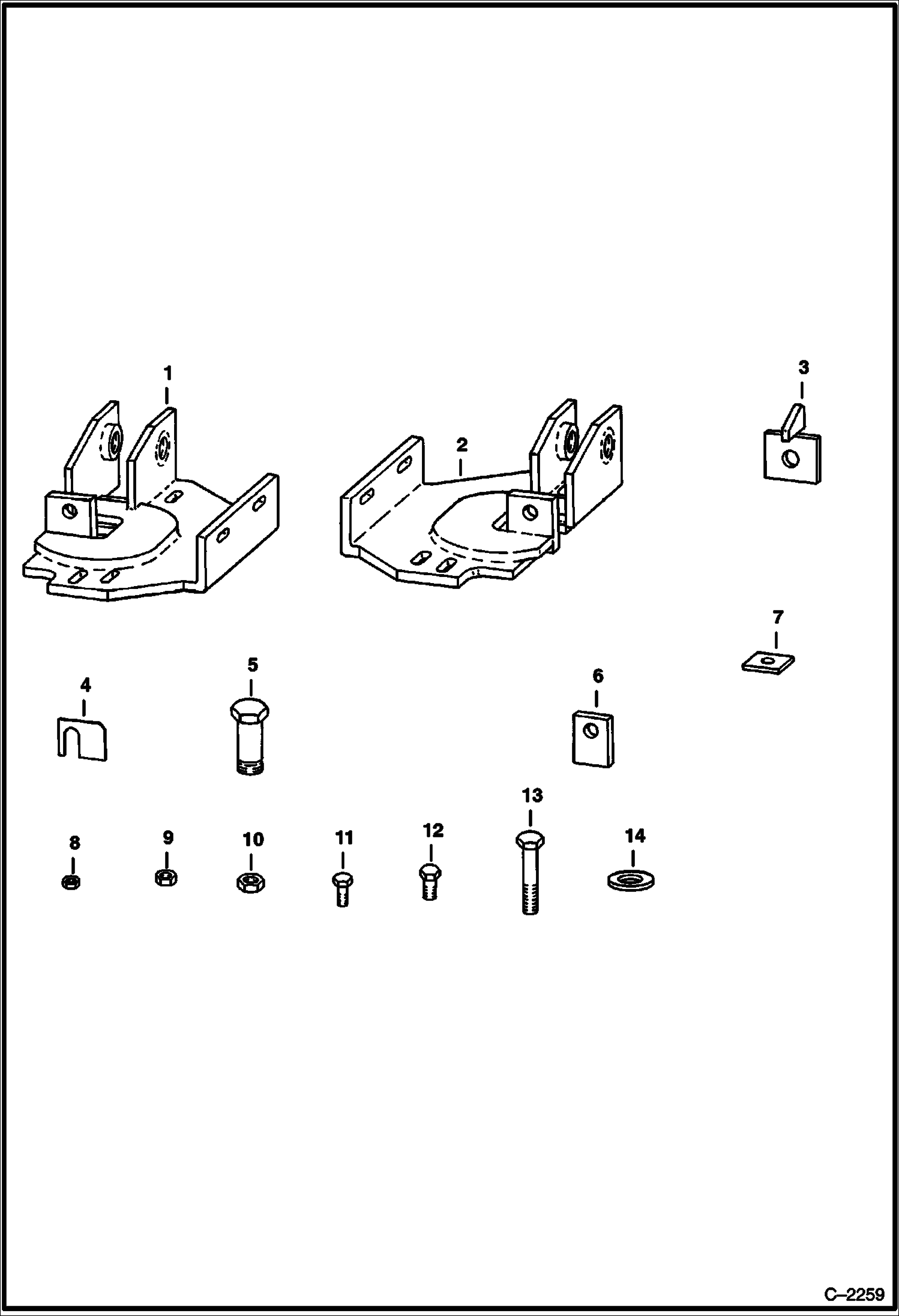

Схема запчастей Bobcat 800s - FINAL DRIVE IDLER/ADJUSTMENT SPROCKET ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IDLER ASSY. See Illustration EXTERNAL IDLER KIT/ C2316 NLA - R.H. - ORDER 6591051

2

IDLER ASSY. See Illustration EXTERNAL IDLER KIT/ C2316 NLA - L.H. - ORDER 6591051

3

6590910

GUIDE chain

4

6590912

SHIM

5

6590906

PIN

6

6590907

SHIM

7

6590903

WASHER

8

61D8

NUT 5

9

61D10

NUT

10

61D12

NUT

11

17C832

BOLT

12

17C1032

BOLT

13

17C1260

BOLT

14

25E22

WASHER
