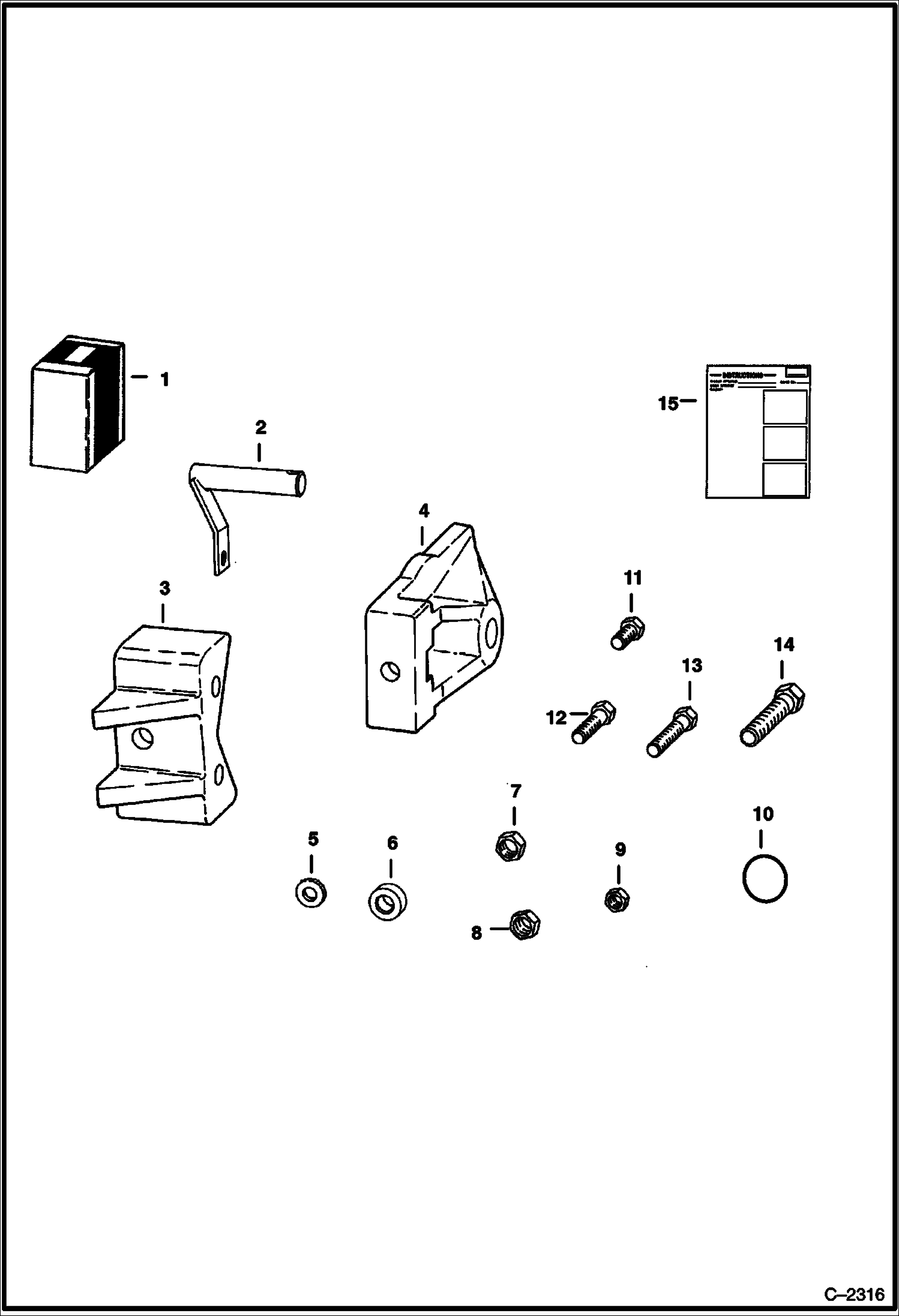

Запчасти Bobcat 800s EXTERNAL IDLER KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2 - 15 - Order Components - Was 6591051 - A

2

LEVER NLA - Was 6590600 - A

3

BLOCK NSS - Order Ref. 1

4

BLOCK NLA - Idler - Was 6590788 - A

5

25E31

WASHER Was 25E000021B - B

6

WASHER NLA - Was 6590599 - A

7

8D16

NUT 1''

8

62D16

NUT jam - 1''

9

81D12

NUT lock

10

25K80428

O RING 10

11

18C1220

BOLT 3/4'' x 1-1/4''

12

17C1232

BOLT 3/4'' x 2''

13

17C1244

BOLT 3/4'' x 2-3/4''

14

18C1664

BOLT 1'' x 4''

15

6556340

INSTRUCTIONS
