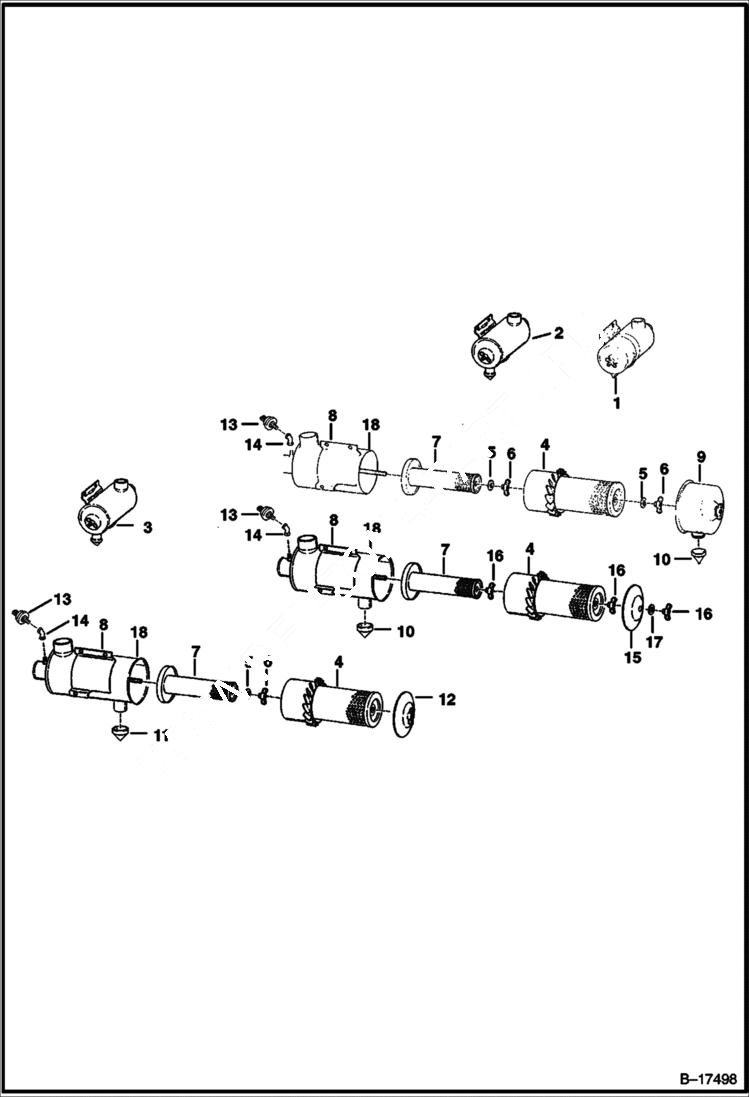

Запчасти Bobcat 700s AIR CLEANER POWER UNIT

1

AIR CLEANER NLA - W/ 1.5'' EVACUATOR VALVE - REF. 4 - 10, 13, 14 & 18 - Order Ref. 2 - WAS 6647788 - A

2

6661400

AIR CLEANER W/ 1.5'' Evacuator Valve - Ref. 4, 7, 8, 10 & 13 - 18

3

AIR CLEANER NLA - W/ 2'' Evacuator Valve - Ref. 4 - 8 & 11 - 14 - Order 6661400 Air Cleaner - Was 6653506 - A

4

6598492

ELEMENT

5

SHIM NLA - Was 888527 - A

6

3291290

NUT

7

6598362

ELEMENT

8

866028

CLAMP

9

6657114

CAP Was 6598493 - B

10

6655938

VALVE, EVACUATOR 38 mm (1.5'') ID

11

6655937

VALVE, EVCACUATOR 2'' (50,8 mm) ID

12

6630941

COVER W/Wing Nut - Was 6655936 - D

13

6660316

SWITCH Was 6651570 - A

14

6725502

ELBOW Was 23F000001B - B

15

6661242

COVER

16

6661243

WING NUT

17

6661244

WASHER

18

TANK NLA
