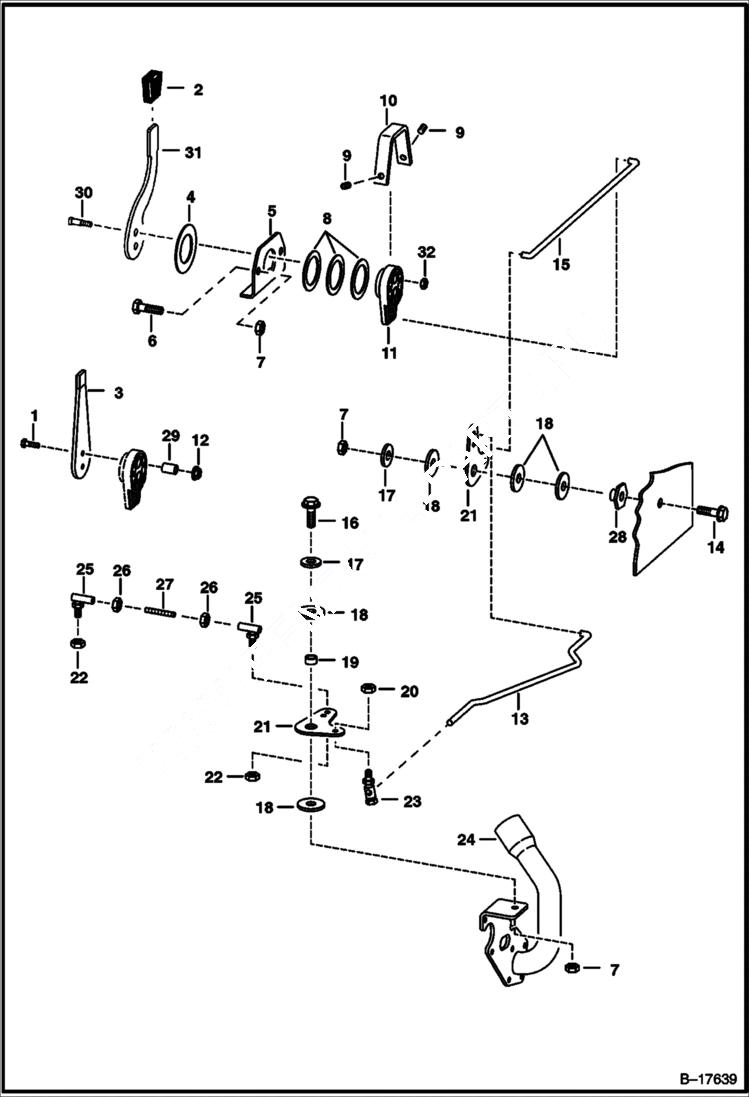

Запчасти Bobcat 700s THROTTLE POWER UNIT

1

17C518

BOLT

2

6564452

GRIP

3

6567911

LEVER

4

6567962

WASHER

5

6576262

MOUNT

6

17C626

BOLT

7

95D6

NUT Was 91D000006B - A

8

6630945

WASHER

9

6706572

SET SCREW Was 15G000512B - B

10

6576261

COVER

11

LEVER NLA - ORDER 6734416 LEVER, (2) OF Ref. 30, 31 & (2) OF REF. 32 - WAS 6703492 - C

11

6734416

LEVER 3-hole rod attachment - Was 6709022 - A

12

57D5

NUT Was 57D000006B - B

13

6703465

ROD

14

84G3724

BOLT

15

6703466

ROD

16

84G3716

SCREW 5

17

25E18

WASHER

18

6700170

WASHER plastic

19

6564343

SPACER

20

85D4

NUT 5

21

6578268

BELLCRANK

22

86D4

NUT

23

6557291

BALL JOINT

24

6719048

MOUNT fuel shutoff solenoid & oil fill - Was 6703738 - A

25

6554858

BALL JOINT

26

62D4

NUT

27

6576252

ROD

28

6559479

NUT

29

6703491

SPACER

30

38C610

BOLT shoulder

31

6705452

LEVER

32

85D5

NUT 5
