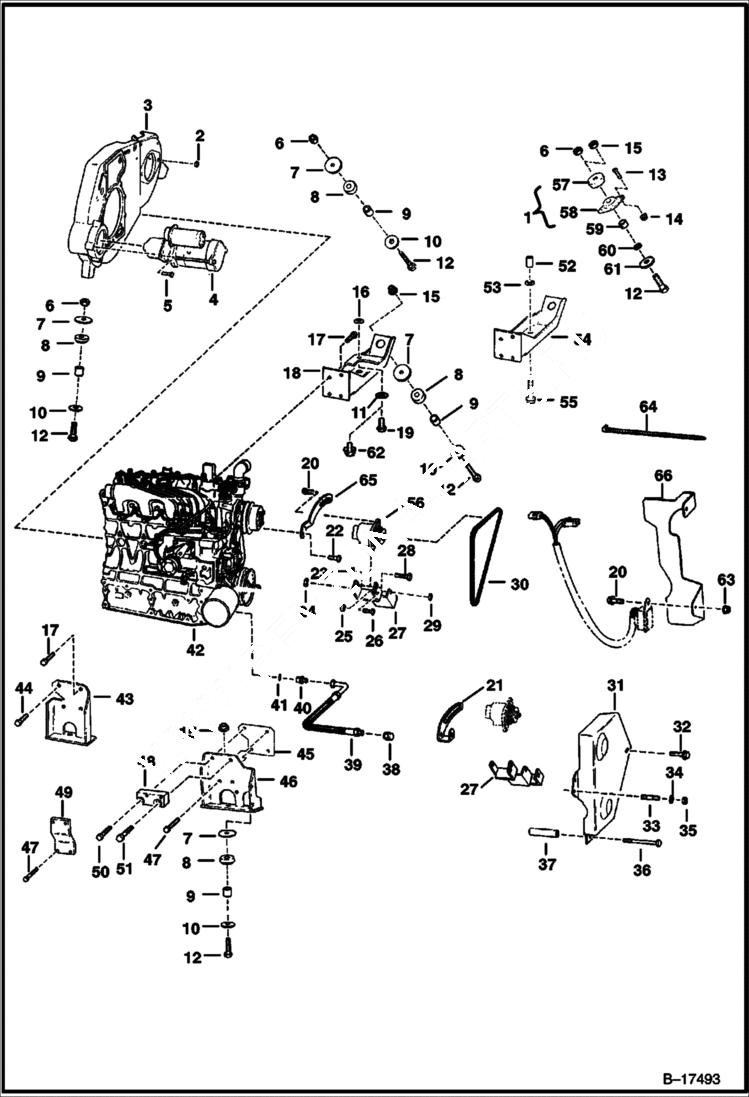

Запчасти Bobcat 700s ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

MOUNT KIT See BTI273 NLA - Ref. 58 - 60 - Was 6722145 - A

2

85D8

NUT, 5

3

6700541

MOUNT

4

STARTER See Illustration STARTER/ D2119

5

35C620

BOLT 5 Was 17C000616B - B

6

6652918

NUT

7

6705106

WASHER

8

MOUNT See BTI273 NLA

8

6661785

MOUNT, ENG

9

BUSHING See BTI273 NLA

9

6706043

SPACER Was 6705105 - A

10

6661787

WASHER

11

742640

WASHER

12

17C844

BOLT

13

25G616

SCREW

14

57D6

NUT 5

15

83D8

NUT 5

16

25E21

WASHER 5 Use 3 maximum

17

6CM1225

BOLT

18

6703585

MOUNT for vertical hardware mounting

18

7104568

MOUNT engine & hyd. pump - for horizontal hardware mounting of hydrostatic pump - Was 6712161 - A

19

17C820

BOLT

20

35C516

BOLT 10

21

6704037

BRACKET Was 6562694 - B

22

1CM870

BOLT

23

57D5

NUT

24

83D6

NUT 5

25

6568877

WASHER

26

1CM890

BOLT

27

6701819

MOUNT

27

6562257

MOUNT

28

17C556

BOLT

29

17C648

BOLT 5

30

6577036

BELT alternator - 45.25''(1149,4 mm) long

30

6704720

BELT, ALT alternator - 46''(1168,4 mm) long

31

SHIELD NLA - Order Ref. 66 & (2) ea. of Ref. 20, 63 & 64 - S/N 5096 13401 & Below also order (2) each of - Use Ref. 64 to fasten engine harness out of the way of alt. belt - Was 6704933 - A

32

84G3710

SCREW

33

6652764

STUD See Illustration GEARCASE/ B13160

34

6EM60

WASHER, SPRING See Illustration GEARCASE/ B13160

35

1DM6

NUT See Illustration GEARCASE/ B13160

36

2CM10120

BOLT

37

6701818

SPACER

38

36K6

CAP

39

6704012

HOSE Was 6572070 - B

40

15K6

ADAPTER

41

79K8

O RING 10

42

ENGINE See Illustration ENGINE & GASKET KITS/ B16450

43

MOUNT NLA - Order Ref. 39 & 46 - Was 6700536 - A

44

5CM1025

BOLT

45

6700535

SPACER

46

6703981

MOUNT W/Ref. 45

47

6CM1230

BOLT

48

6704322

MOUNT fuel filter

49

MOUNT NLA - Order Ref. 47, 48, 50 & 51 - Was 6577731 - A

50

5CM1035

BOLT

51

6CM1235

BOLT

52

6577729

BUSHING

53

25E21

WASHER 5

54

MOUNT NLA - Order 6703585 Mount, 31C000816B Bolt & (3) 25E000021B Washer - Was 6700539 - C

55

31C844

BOLT Was 35C000844B - B

56

ALTERNATOR See Illustration ALTERNATOR/ D1760

57

CUP See BTI273 NLA - snubber - Was 6703733 - A

58

MOUNT See BTI273 NLA - Was NSS - D

59

BUSHING See BTI273 NLA - Was 6704449 - C

60

WASHER See BTI273 NLA - Was 6704448 - C

61

WASHER See BTI273 NLA - Was 6702546 - C

62

BOLT NLA - Orde rRef. 11 & 19 - Was 31C000816B - B

63

83D5

NUT 5

64

6610510

TIE When ordering Ref. 31 for S/N 5096 13401 & Below, also order (2) each of Ref. 20, 63 & 64 - Use Ref. 64 to fasten engine harness out of the way of alternator belt

65

6705711

BRACKET

66

6704918

SHIELD
