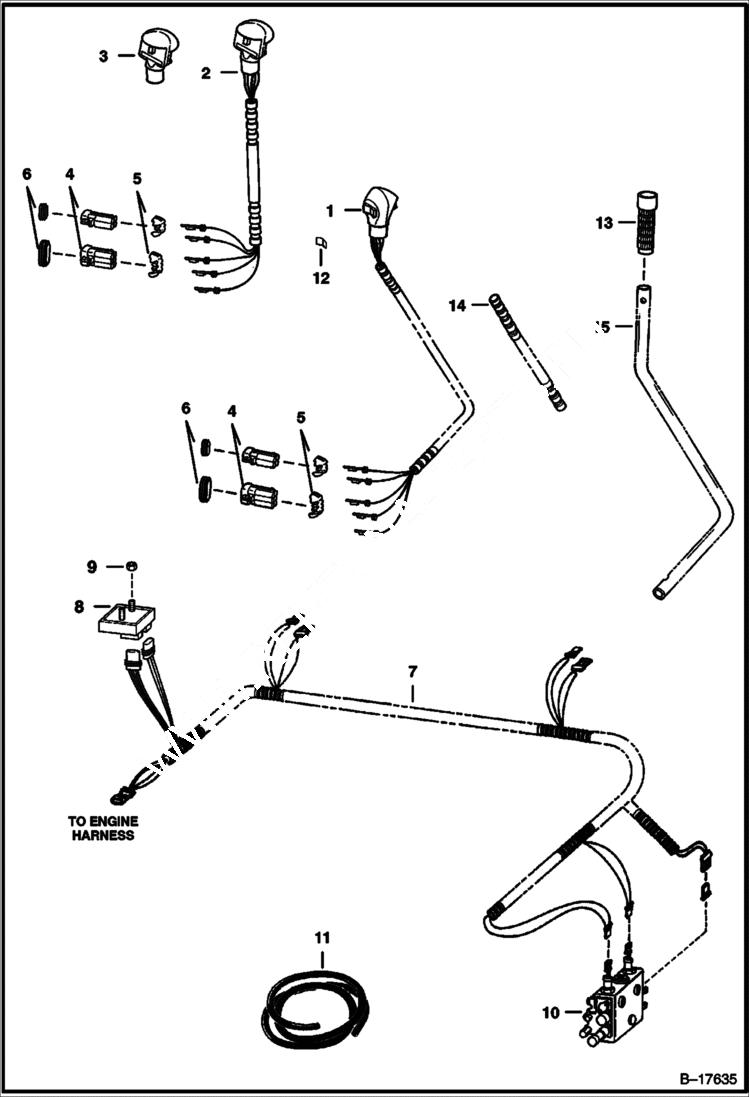

Запчасти Bobcat 700s CONTROLS ELECTRICAL ELECTRICAL SYSTEM

1

6704454

HANDLE ASSY. W/Ref. 12 & 14 - Also Order Ref. 4-6 - WAS 6703845 - A

2

6680414

HANDLE ASSY. R.H. - Also Order Ref. 4-6 - Was 6705921 - A

3

6680415

HANDLE LH blank - Was 6705920 - A

3

6680415

HANDLE L.H. - blank - Use W/ O B.O.S.S. Option - Was 6705920 - A

4

6641179

CONNECTOR 2-pin

4

6640699

CONNECTOR 3-pin

5

6641180

LOCK Use W/ 2-pin connector

5

6640700

LOCK 3-pin

6

6649683

SEAL For Use W/2-pin connector

6

6659553

SEAL For Use W/3-pin connector

7

6702999

HARNESS

8

6671669

MODULE, CONTROL AUX aux. control - Was 6669529 - C

9

85D4

NUT 5 Was 85D000008B - B

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17617 WAS 6534942 - A

11

6584978

CONDUIT bulk - sold per foot - Was 6565528 - D

12

6664315

DECAL switch

13

6702621

GRIP

14

CONDUIT NLA - 36'' (914,4 mm) long - Order Ref. 11

15

LEVER See Illustration HAND CONTROLS/ B17446
