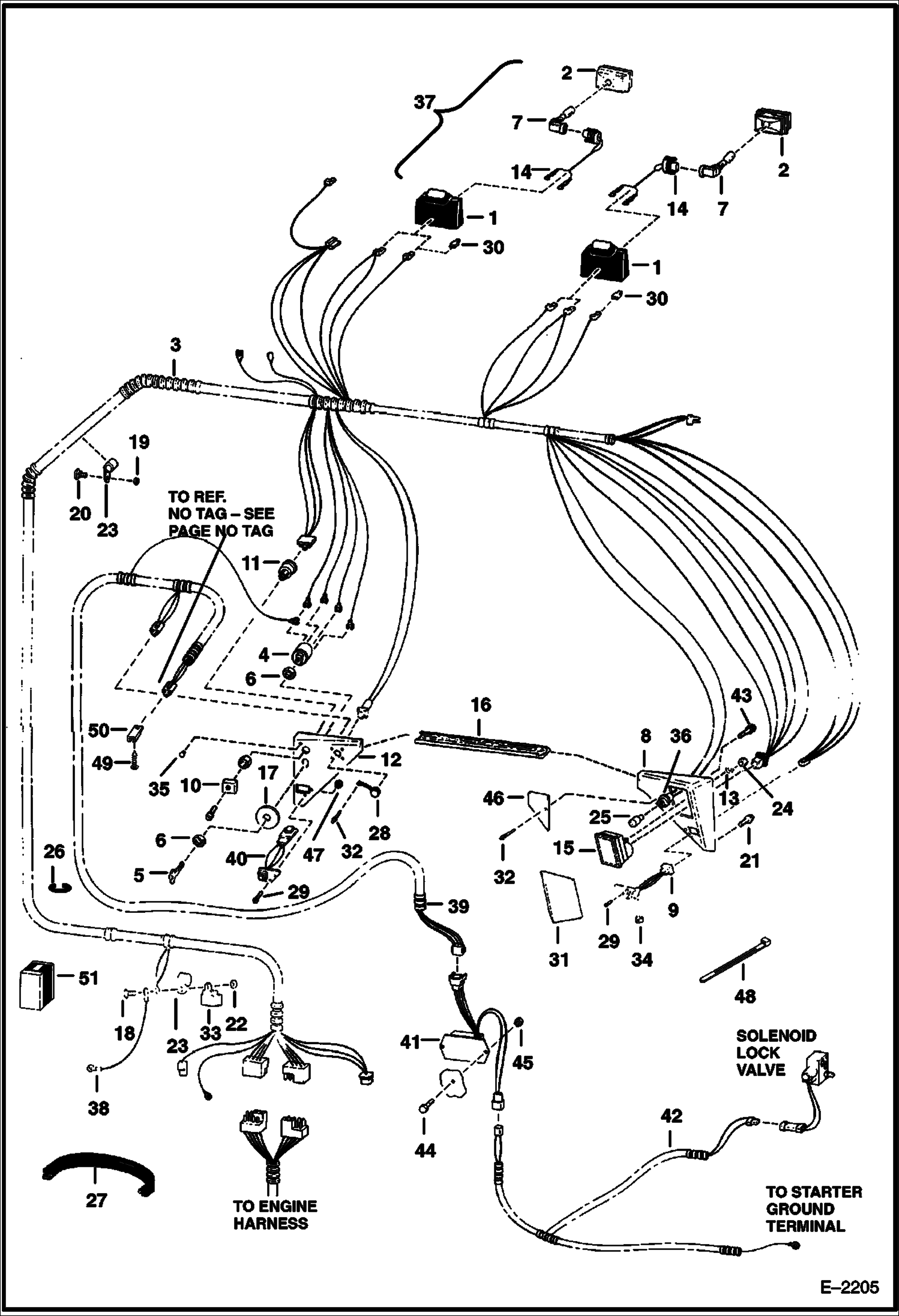

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY (W/ BOSS Option) ELECTRICAL SYSTEM

1

6578824

HOUSING rubber

2

6649478

BULB HOUSING

3

6705136

HARNESS Was 6704407 - A

4

SWITCH See BTI289 NLA - ignition - Order Ref. 51 - Was 6519592 - A

4

6665606

SWITCH ignition - W/Ref. 5 & 6

5

6512809

KEY ignition - For Ref. 4 (NLA/6519592 Switch)

5

KEY NLA - for 6665606 switch - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

6

6674202

NUT For Ref. 4 (6665606 Switch)

7

6667934

BULB Was 6650111 - A

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX aux. controls module - W/Ref. 34 - Was 6700603 - A

10

6599781

KNOB light switch

11

6512808

SWITCH

12

6707111

PANEL L.H.

13

17E8

WASHER

14

6578528

HARNESS light

15

DISPLAY LCD monitor - mounted w/nuts - NLA - order 7131641 kit - Was 6665923

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD monitor NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6578780

CROSSMEMBER plastic - 17.33'' (440,1 mm) long

17

PLATE NLA - ignition key - For Ref. 4 (NLA/6519592 Switch) - Order Ref. 51 - Was 6702263 - A

17

6709028

PLATE ignition key - For Ref. 4 (6665606 Switch)

18

10C412

BOLT

19

83D4

NUT 10 Use W/Ref. 23 (30H54 clamp)

20

35C412

BOLT flanged head cap screw - Was 35C000410B - B

21

6702642

SCREW

22

61D4

NUT 5

23

30H54

CLIP P clamp

23

30H55

CLIP P clamp

24

12D8

NUT

25

6578357

BULB

26

MOULDING NLA - 6'' (152,4 mm) long - Order Ref. 27

27

6630138

MOULDING bulk - Sold Per Foot

28

6651703

CAP

29

6669225

BOLT Was 58G000408B - A

30

6519548

CONNECTOR

31

6700487

SHIELD snap in place

32

6704892

RIVET Was 6658512 - A

33

6651975

SWITCH relay

34

6660594

BUTTON on/off

35

6660955

PLUG

36

6649331

SOCKET light - W/ 6'' leads

37

6577801

LIGHT Ref. 1, 2, 7 & 14

38

6705978

WIRE ground - See S/L Feb 93

39

6707060

HARNESS

40

6664976

SWITCH lift arm control

41

6664977

CONTROLLER

42

6707061

HARNESS

43

35C416

BOLT one in upper corner each panel

44

17C410

BOLT 10

45

85D4

NUT 5

46

6702678

PLATE service codes

47

50D4

NUT

48

6610510

TIE

49

6664221

RETAINER

50

6665000

CLIP

51

6724282

SWITCH KIT Ref. 4, 5 & 17
