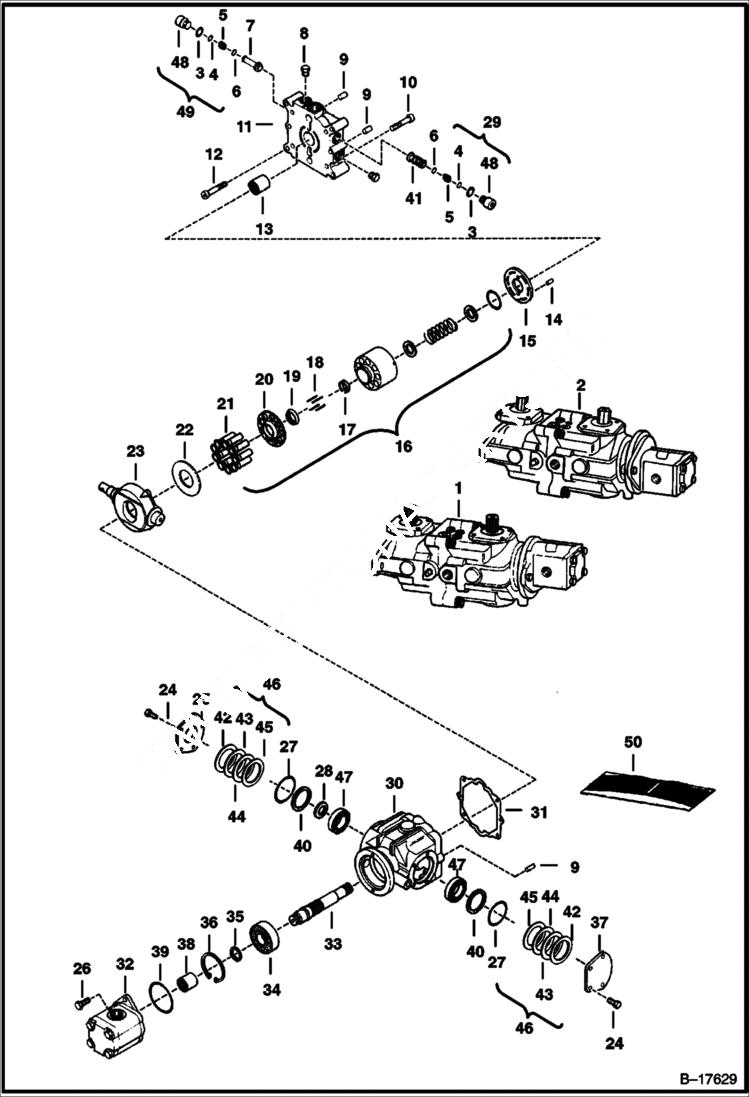

Запчасти Bobcat 700s HYDROSTATIC PUMP (Model M91-35911 & 35916) HYDROSTATIC SYSTEM

1

PUMP See BTI274 NLA - W/GEAR PUMP - M91-35911 - - PUMPS ARE SHOWN IN A RIGHT REAR VIEW. REF 3-48 ARE COMPONENTS OF THE RIGHT HALF OF THE TANDEM PUMP, AND ARE SHOWN IN A RIGHT FRONT VIEW, ROTATED 90 DE

2

PUMP See Illustration HYDROSTATIC PUMP/ D2377 NLA - W/GEAR PUMP - M91-35916 - ORDER 6662349 PUMP ON THIS PAGE OR 6669464 PUMP WAS 6661997 - A

2

6662349REM

PUMP, HYD W/O GEAR PUMP Was 6662349 - A

3

6657028

O-RING

4

79K8

O RING 10

5

SPRING NLA - Order Ref. 29 or 49 - Was 6650656 - A

6

SNAP RING NLA - Order Ref. 29 or 49 - Was 6657071 - A

7

CHECK VALVE NLA - Order Ref. 49 - Was 6650669 - A

8

6657081

PLUG

9

6518460

PIN

10

6650637

BOLT

11

6669405

CAP, END Was 6650653 - A

12

6652018

BOLT

13

6650635

BEARING

14

6650636

PIN

15

6666291

VALVE PLATE Was 6650673 - C

16

6661758

BLOCK ASSY W/Ref. 17-21 - Was 6634311 - C

17

6650630

RETAINER

18

6650629

PIN

19

GUIDE NLA - Order Ref. 16 - Was 6657073 - C

20

GUIDE NLA - Order Ref. 16 - Was 6657072 - C

21

PISTON NLA - Order Ref. 16 - Was 6650632 - C

22

6650627

PLATE thrust

23

SWASH PLATE NLA - Order 6671907 Kit - Was 6659583 - A

23

6671907

SWASH PLATE Ref. 47

24

6650668

BOLT

25

6657067

COVER

26

6650679

BOLT

27

6660814

O-RING Was 6657079 - B

28

6678226

SEAL, OIL Was 6673881 - A

29

6670685

RELIEF VALVE Was 6689601 - A

30

6657077

HOUSING

31

6650634

GASKET

32

PUMP See Illustration GEAR PUMP/ TS1035 GEAR

33

6650645

SHAFT

34

6650640

BEARING

35

6650641

SNAP RING

36

6652019

SNAP RING

37

6657068

COVER

38

6650677

COUPLER

39

6645080

O-RING O.D. of Ref. 32

40

6659582

SPACER

41

RELIEF VALVE NLA - 5000 PSI - Order Ref. 29 - Was 6658300 - A

42

6659578

SHIM 0.003

43

6659579

SHIM 0.005

44

6659580

SHIM 0.01

45

6659581

SHIM 0.02

46

6660815

SHIM KIT Ref. 42 - 45

47

6659584

KIT, BEARING .55 Cup & .71 Bearing - See Note - Was 6660117 - A

47

6669411

BEARING .67 Cup & .83 Bearing - See Note

48

PLUG NLA - Order Ref. 29 or 49 - Was 6657070 - A

49

6670684

CHECK VALVE

50

6658092

SEAL KIT See Illustration HYDROSTATIC PUMP/ B17627 REF. 3, 4, 27, 28, 31 & 39 - ALSO INCLUDES REF. 3-5, 12, 13, 18, 32, 33, 39, 41, 45, 46 & 49
