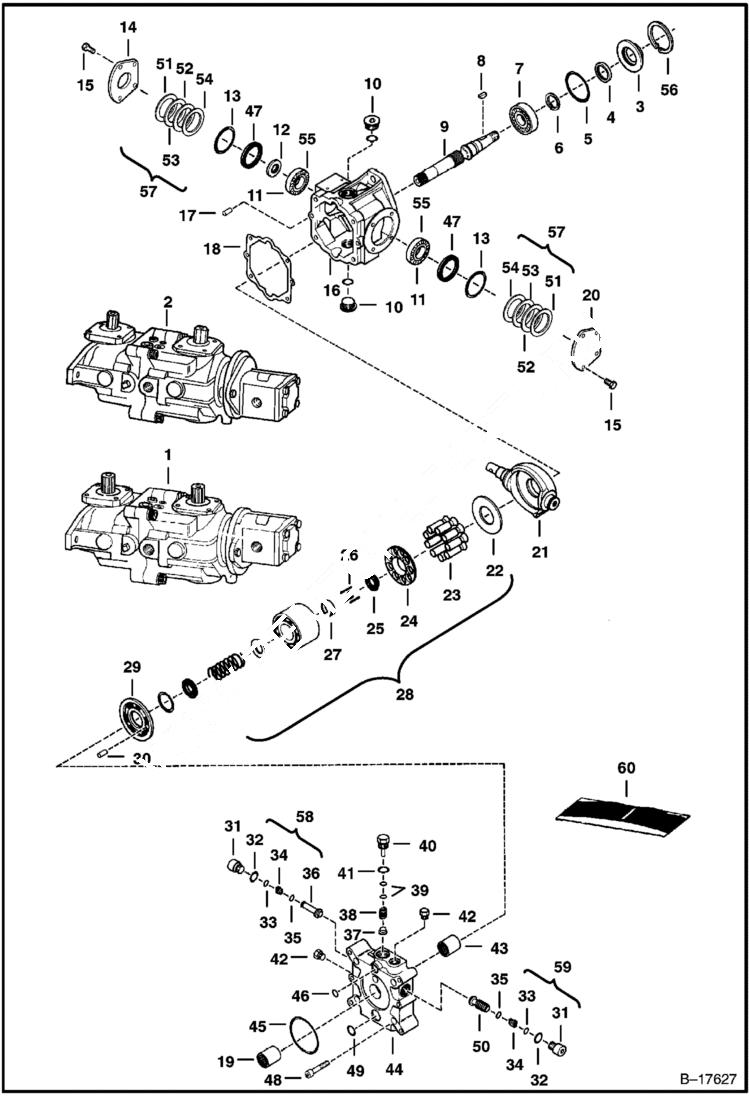

Запчасти Bobcat 700s HYDROSTATIC PUMP (Model M91-35911 & 35916) HYDROSTATIC SYSTEM

1

PUMP See BTI274 NLA - W/Gear Pump - M91-35911 - Was 6659521 - A

2

PUMP See Illustration HYDROSTATIC PUMP/ D2377 NLA - W/GEAR PUMP - M91-35916 - ORDER 6662349 PUMP ON THIS PAGE OR 6669464 PUMP PUMP IS SHOWN IN A RIGHT REAR VIEW - REF 3-56 ARE COMPONENTS OF THE LEFT H

2

6662349REM

PUMP, HYD W/O GEAR PUMP Was 6662349 - A

3

6657074

ADAPTER

4

6650626

SEAL

5

6657079

O-RING Was 6650642 - A

6

6650641

SNAP RING

7

6650640

BEARING

8

6J807

KEY, WOODRUFF

9

6650671

SHAFT W/Ref. 8

10

47K8

PLUG W/ 79K000012B O-Ring

10

79K12

O RING 10

11

6659584

KIT, BEARING Was 6660118 - A

12

6678226

SEAL, OIL Was 6673881 - A

13

6660814

O-RING Was 6657079 - B

14

6657067

COVER

15

6650668

BOLT

16

HOUSING NLA - Was 6657076 - A

17

6518460

PIN

18

6650634

GASKET

19

6650675

COUPLER

20

6657068

COVER

21

SWASH PLATE NLA - Order 6671907 Swash Plate - Was 6659583 - A

21

6671907

SWASH PLATE Ref. 21 & 55

22

6650627

PLATE thrust

23

PISTON NLA - Order Ref. 28 - Was 6650632 - C

24

6657072

RETAINER NLA - Order Ref. 28 - C

25

GUIDE NLA - Order Ref. 28 - Was 6657073 - C

26

6650629

PIN

27

6650630

RETAINER

28

6661758

BLOCK ASSY W/Ref. 23-27 - Was 6634311 - C

29

6666290

PLATE valve - Was 6650672 - C

30

6650636

PIN

31

PLUG NLA - Order Ref. 58 or 59 - Was 6657070 - A

32

6657028

O-RING

33

79K8

O RING 10

34

SPRING NLA - Order Ref. 58 or 59 - Was 6650656 - A

35

SNAP RING NLA - Order Ref. 58 or 59 - Was 6657071 - A

36

CHECK VALVE NLA - Order Ref. 58 - Was 6650669 - A

37

6650652

POPPET charge

38

6658301

SPRING

39

6658302

SHIM .010 mm

39

6650649

SHIM .020 mm

39

6650650

SHIM .050 mm

40

6650648

PLUG

41

79K10

O RING 10

42

6645086

PLUG

43

6650635

BEARING

44

CAP NLA - Use 6669406 - Was 6650670 - A

45

6645081

O-RING Was 6655041 - A

46

6650646

O-RING

47

6659582

SPACER

48

6650637

BOLT

49

6650647

O-RING

50

RELIEF VALVE NLA - 5000 PSI - Order Ref. 59 - Was 6658300 - A

51

6659578

SHIM 0.003

52

6659579

SHIM 0.005

53

6659580

SHIM 0.01

54

6659581

SHIM 0.02

55

6659584

KIT, BEARING .71'' Bearing & .55'' Cup - SEE NOTE - Was 6660117 - A

55

6669411

BEARING .83'' bearing & .67'' Cup - SEE NOTE

56

6652019

SNAP RING

57

6660815

SHIM KIT Ref. 51 - 54

58

6670684

CHECK VALVE

59

6670685

RELIEF VALVE Was 6689601 - A

60

6658092

SEAL KIT See Illustration HYDROSTATIC PUMP/ B17629 REF. 3-5, 12, 13, 18, 32, 33, 39, 41, 45, 46 & 49 - ALSO INCLUDES REF. 3, 4, 27, 28, 31 & 39
