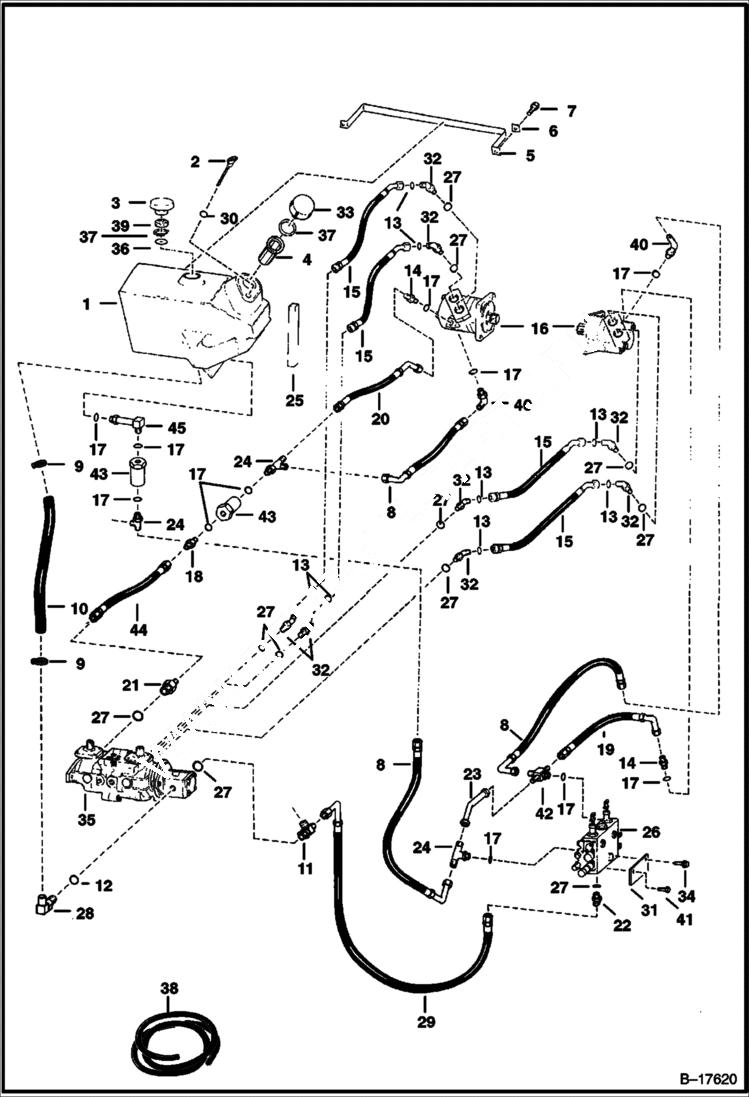

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 5096 12777 & Above) HYDROSTATIC SYSTEM

1

TANK NLA - hydraulic - When replacing Ref. 1 tank on S/N loaders 12777-14858 Order 6706451 tank. Replace 0 hose W/6716626 , (1) of Ref. 9 clamp W/(1) of 6666864 , Ref. 28 elbow W/6714905 - Also order

1

6706451

TANK, HYD .93'' I.D. Suction Outlet

2

6577459

DIPSTICK W/Ref. 30

3

6727475

CAP, OIL HYD breather - Also Order Ref. 37 & 39 - Was 6577785 - A

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6702494

BAND

6

6559447

WASHER

7

84G3712

BOLT 5

8

6578804

HOSE

9

44H16

CLAMP Was 6666865 - A

9

44H20

CLAMP Was 6666864 - A

10

6704617

HOSE 1.00'' (25,4 mm) I.D.

10

6716423

HOSE 1.25'' (31,8 mm) I.D. - Was 6706452 - A

10

6716626

HOSE 1.00'' (25,4 mm) I.D. one end & 1.25'' (31,8 mm) I.D. other end

11

6707103

CONNECTOR See Illustration LIFT CONTROL SYSTEM/ TS1185 Ref. 29 - Also W/Ref. 27 on this Illustration

11

6704693

TEE W/Ref. 27

12

79K16

O RING 10

13

58K018

O-RING 10

14

6660443

RELIEF VALVE 65 PSI

15

6658106

HOSE, HYD ASSY

16

MOTOR KIT See Illustration HYDROSTATIC MOTOR/ D2124

17

79K6

O RING 10

18

15K5

FITTING W/Ref. 17

19

6578327

HOSE

20

6700025

HOSE

21

6578812

ADAPTER W/Ref. 27

22

15K8

FITTING W/Ref. 27

23

6577690

TUBE

24

21K5

TEE See Illustration LIFT CONTROL SYSTEM/ TS1185 Ref. 2 - Also W/Ref. 17 on this Illustration

25

FOAM STRIP NLA - 16.12'' (409,5 mm) long - Order Ref. 38

26

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17617 W/Ref. 22-24 & 34

27

79K12

O RING 10

28

6567883

ELBOW W/Ref. 12 - 1''(25,4 mm) O.D.

28

6714905

ELBOW W/Ref. 12 - 1.25''(31,8 mm) O.D. Was 6707409 - A

29

6662867

HOSE, HYD ASSY Was 6705032 - A

30

25K20010

O RING 10

31

6704680

COVER located outside of main frame

32

6714902

ELBOW W/Ref. 27 - Was 69E000012B - A

33

6728149

CAP , HYD NON VENTED fill - Also Order Ref. 37 - Was 6532508 - A

34

84G3110

SCREW

35

PUMP See Illustration HYDROSTATIC PUMP/ B17627

36

6701552

BAFFLE

37

6700631

GASKET

38

6511855

SEAL self adhesive - bulk - sold per foot

39

6703427

FOAM FILTER

40

17K5

ELBOW W/Ref. 17

41

17C532

BOLT 5

42

6578209

TEE W/Ref. 17

43

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

44

6704787

HOSE

45

6558510

ELBOW W/Ref. 17
