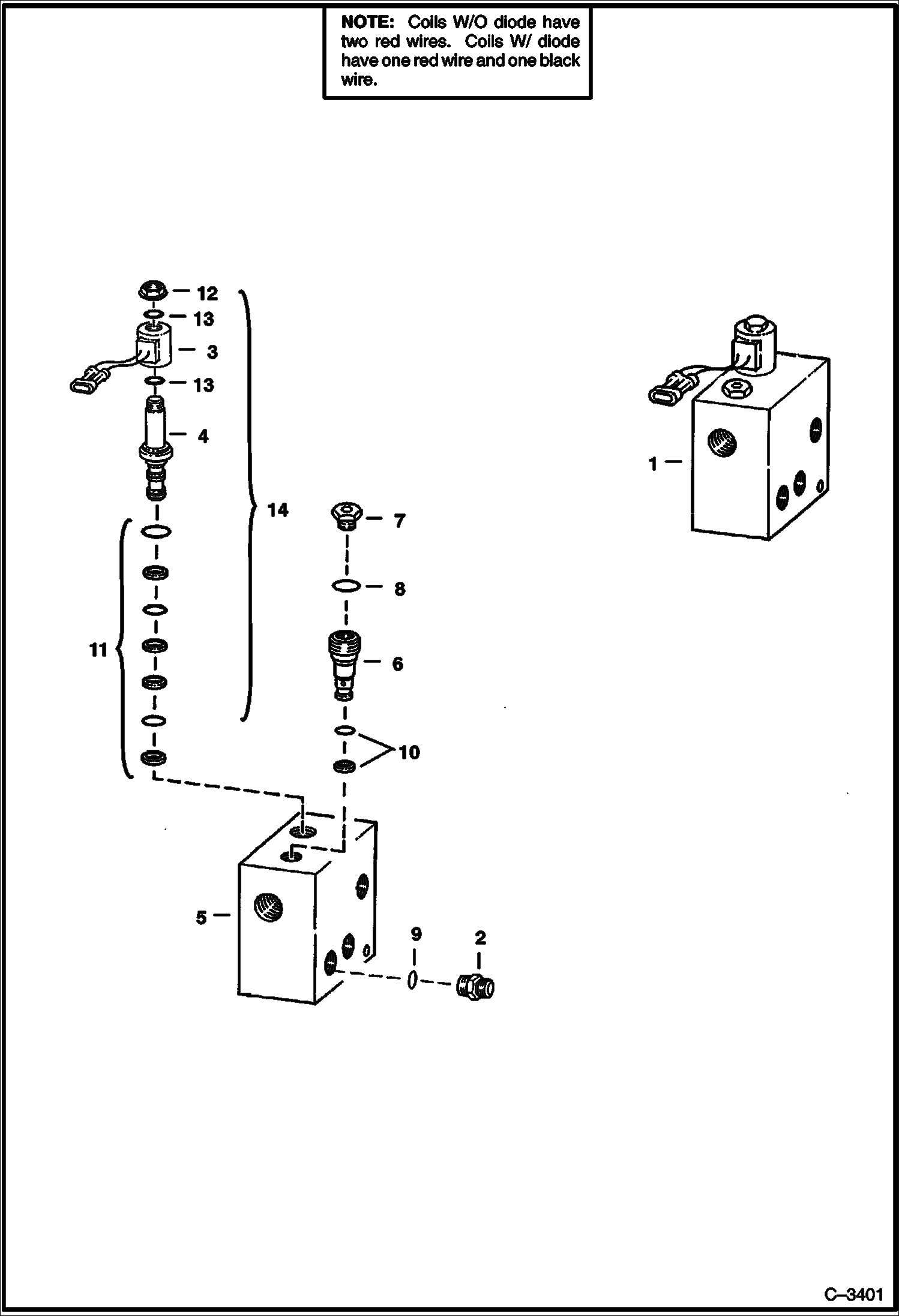

Запчасти Bobcat 700s SOLENOID VALVE HYDRAULIC SYSTEM

1

6664958

VALVE Ref. 2 - 14

2

6665489

ADAPTER

3

COIL NLA - W/O diode - Was 6667138 - A

3

6671025

COIL W/ diode - SEE NOTE

4

6667687

VALVE, STEM SOLENOID Was 6665004 - A

5

BLOCK NSS

6

6665609

CHECK VALVE

7

6667127

PLUG Was 86667127 - D

8

6667131

O-RING

9

6667132

O-RING

10

6665611

SEAL KIT

11

6665487

SEAL KIT

12

6668820

NUT

13

6669076

O-RING

14

6672471

VALVE, SOLENOID W/diode - Was 6672456 - A
