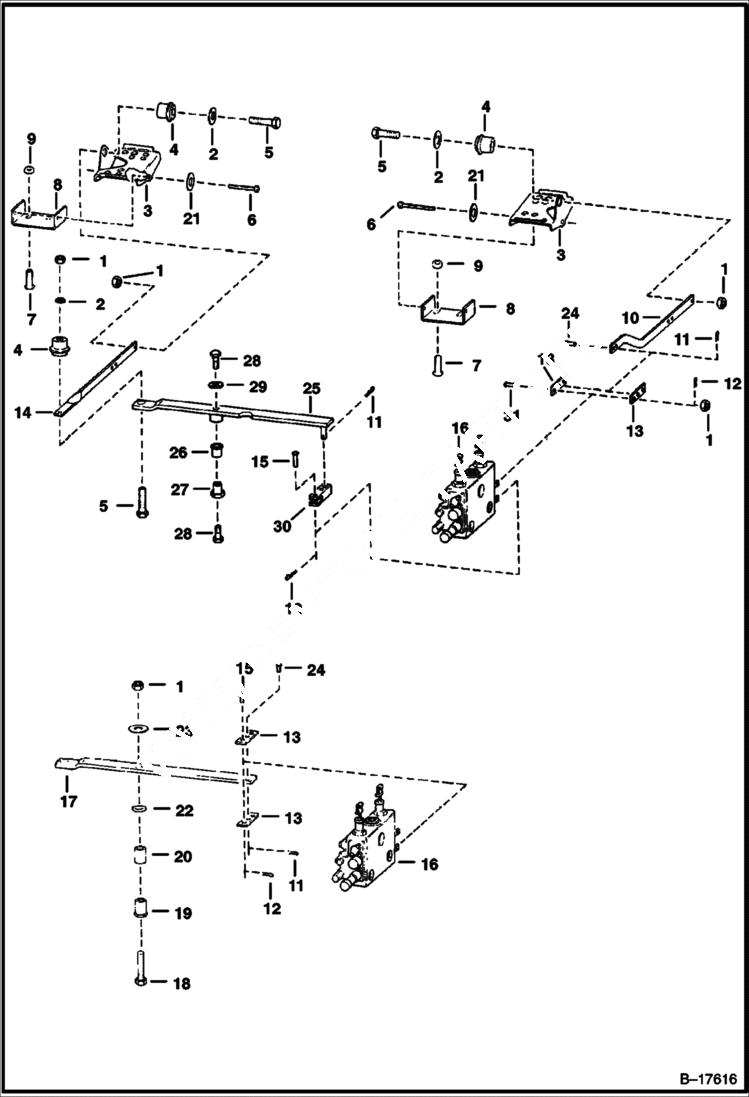

Запчасти Bobcat 700s CONTROL PEDALS HYDRAULIC SYSTEM

1

95D6

NUT Was 91D000006B - A

2

6563914

WASHER

3

7115219

PEDAL Was 6726680 - A

4

6665701

BUSHING, PRESS FIT Was 6630081 - A

5

17C624

BOLT 5 Was 17C000626B - B

6

6564657

PIN

7

7C620

BOLT Was 6704349 - B

8

6726679

MOUNT Was 6564658 - A

9

57D6

NUT 5

10

6577813

BAR

11

1306637

CLIP cotter

12

6513495

COTTER PIN

13

6564544

LINK rectangular

13

6706680

LINK oval - Also Order Ref. 1 & 31 - Was 6564544 - A

14

6576302

BAR

15

6564654

PIN

16

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17617 WAS 6586271 - A

17

6577814

LEVER

17

6577814

LEVER

18

6565067

BOLT

18

6565067

BOLT

19

6577815

RETAINING NUT

19

6577815

RETAINING NUT

20

6569599

BEARING

20

6569599

BEARING

21

25E21

WASHER 5 Use if serrations on pins are too long

22

6569597

WASHER

22

6569597

WASHER

23

616789

WASHER

23

616789

WASHER

24

4F6106

PIN

24

4F6106

PIN

25

6706103

LEVER

25

6706103

LEVER

26

6512026

BUSHING

26

6512026

BUSHING

27

6706104

RETAINING NUT

27

6706104

RETAINING NUT

28

17C612

BOLT 5

28

17C612

BOLT 5

29

619021

WASHER, 5

29

619021

WASHER, 5

30

6706105

YOKE

30

6706105

YOKE

31

17C620

BOLT
