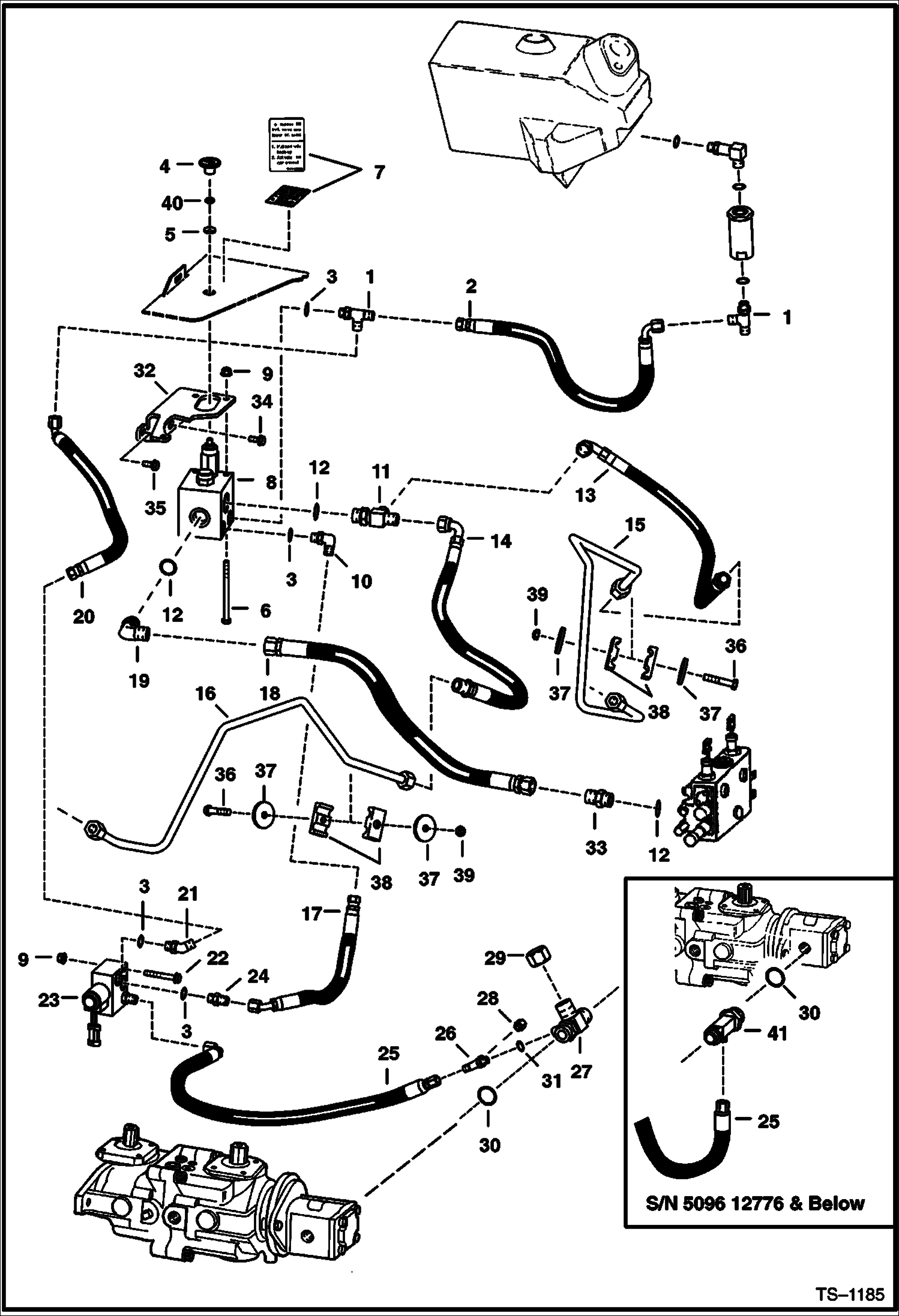

Запчасти Bobcat 700s LIFT CONTROL SYSTEM HYDRAULIC SYSTEM

1

21K5

TEE W/Ref. 3

2

6707105

HOSE

3

79K6

O RING 10

4

KNOB NLA - red round - Was 6664858 - A

4

6737524

KNOB red square

5

6707101

SEAL neoprene

6

17C572

BOLT

7

6706809

DECAL instructions

8

6664850

VALVE See Illustration LIFT LOCK VALVE/ C3386 - lift lock

9

83D5

NUT 5

10

17K5

ELBOW W/Ref. 3

11

6578183

TEE W/Ref. 10

12

79K10

O RING 10

13

6707108

HOSE

14

6707143

HOSE

15

6707128

TUBE

16

6707127

TUBE

17

6707110

HOSE

18

6707109

HOSE

19

17K7

ELBOW W/Ref. 12

20

6707164

HOSE

21

18K5

ELBOW W/Ref. 3

22

35C540

BOLT Was 35C000536B - B

23

6664958

VALVE See Illustration SOLENOID VALVE/ C3401 SOLENOID

24

15K5

FITTING W/Ref. 3

25

6707104

HOSE

26

21K3

CONNECTOR

27

6707103

CONNECTOR W/Ref. 30

28

36K3

CAP

29

36K8

CAP

30

79K12

O RING 10 Was 79K000016B - B

31

79K4

O RING 10

32

6707067

MOUNT

33

15K7

FITTING W/Ref. 13

34

84G3712

BOLT 5

35

84G3112

BOLT 5

36

17C632

BOLT 5

37

872229

WASHER

38

6701892

CLAMP

39

85D6

NUT, 5

40

7D4

NUT

41

6704693

TEE See Illustration REAR AUXILIARY/ TS1092 W/Ref. 30 - Ref. 41 FOR REAR AUX. OPTION CONNECTOR
