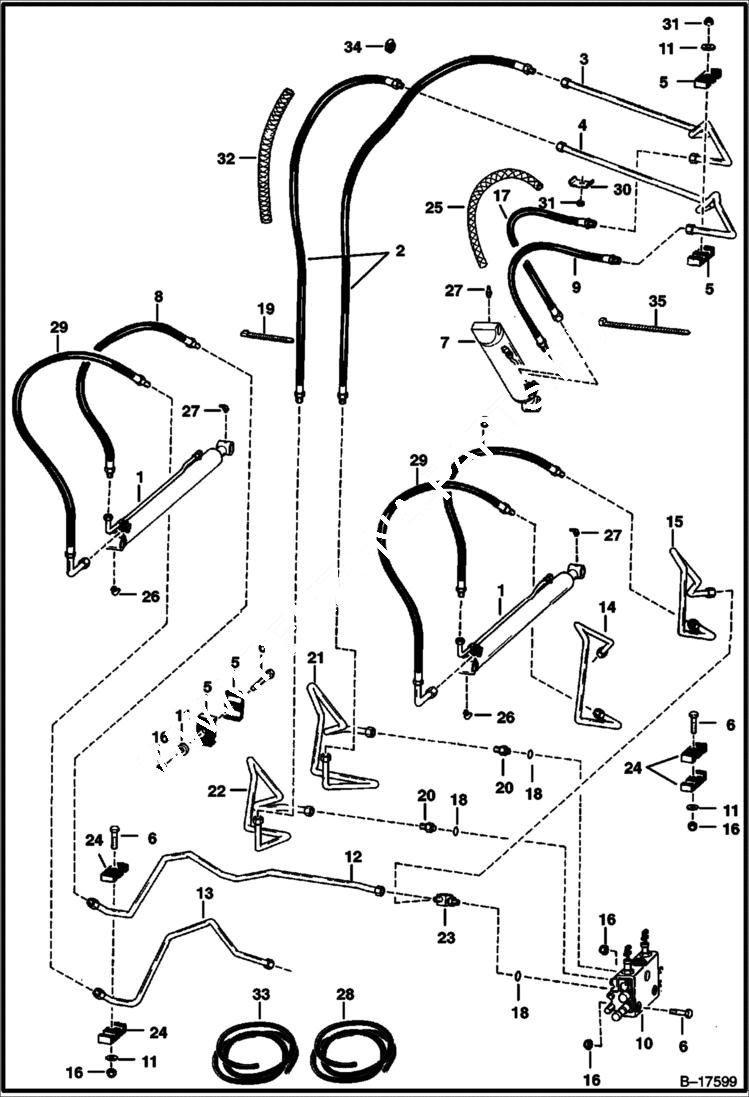

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6537254

CYLINDER See Illustration LIFT CYLINDER/ B17293 LIFT

2

HOSE NLA - Use W/Ref. 32 - Was 6703562 - A

2

6715986

HOSE W/cover

3

TUBE NLA - Order 6703920 Tube & 6703921 Tube - Was 6702637 - A

3

6703920

TUBE

4

TUBE NLA - Order 6703920 Tube & 6703921 Tube - Was 6702638 - A

4

6703921

TUBE

5

6701893

CLAMP

6

17C532

BOLT 5

7

CYLINDER See Illustration TILT CYLINDER/ TS1063 TILT

8

6702674

HOSE

9

6704335

HOSE Was 6578774 - A

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17617 WAS 6586271 - A

11

872229

WASHER

12

6702481

TUBE

13

6707127

TUBE See Illustration LIFT CONTROL SYSTEM/ TS1185

14

6707128

TUBE See Illustration LIFT CONTROL SYSTEM/ TS1185

15

6702479

TUBE

16

85D5

NUT 5

17

6704336

HOSE Was 6578773 - A

18

79K10

O RING 10

19

6700770

STA-STRAP

20

15K7

FITTING W/Ref. 18

21

6702478

TUBE

22

6702477

TUBE

23

6578183

TEE W/Ref. 18

24

6701892

CLAMP

25

COVER NLA - 18''(457,2 mm) long - Order Ref. 28

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

29

6702673

HOSE

30

6502203

CLAMP

31

59D6

NUT

32

COVER NLA - 30''(762 mm) long - Order Ref. 33

33

6705749

SHIELD bulk - Sold Per Foot - 1.85'' (47 mm) I.D. - Was 6651436 - A

34

42H24

CLAMP-5 adjustable hose clamp

35

6610510

TIE
