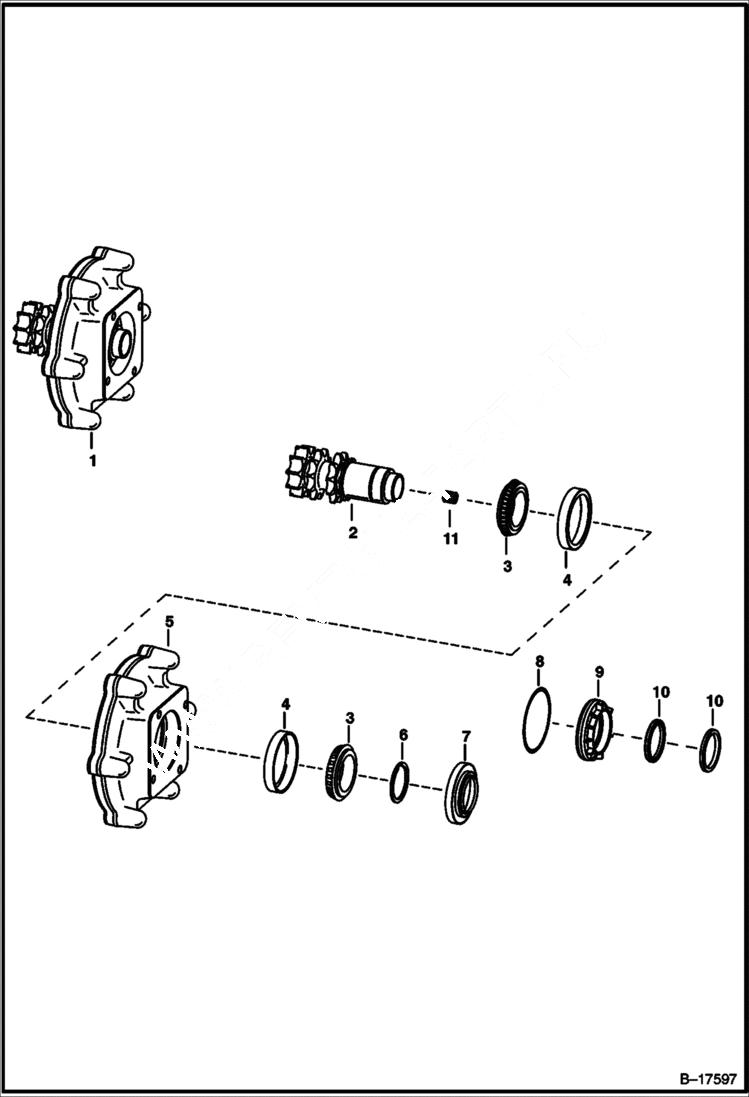

Запчасти Bobcat 700s MOTOR CARRIER (Drive Motor Mount Assy.) DRIVE TRAIN

1

MOUNT ASSY. NLA - drive motor - Ref. 2 - 7 - Order Componets - Was 6705288 - A

2

6705065

SHAFT, TRANS W/snap ring groove

3

6632218

CONE, BEARING

4

6632541

RACE

5

6704492

HOUSING

6

6571851

SNAP RING 0.118'' thickness - Was 6578527 - A

6

6571852

SNAP RING 0.125'' thickness

7

6705847

SEAL, OIL

8

O-RING NLA- Order Ref. 7 - Was 25K040412B - B

9

SEAL ADAPTER NLA - Order Ref. 7 - plastic - Was 6703186 - A

10

SEAL NLA- Order Ref. 7 - Was 6652528 - A

11

PLUG NSS - Was 16F000006B - B
