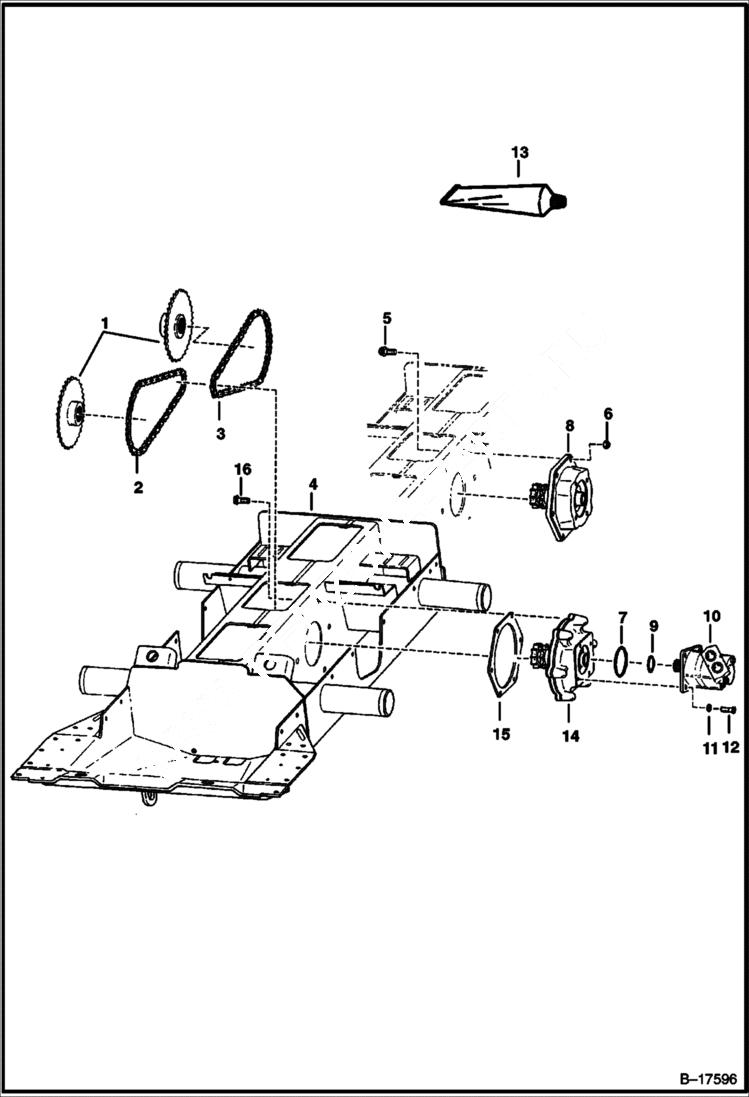

Запчасти Bobcat 700s DRIVE TRAIN DRIVE TRAIN

1

7134137

SPROCKET Was 6577204 - A

2

CHAIN NLA - 68 pitch - hour glass shape link - Diamond - Was 6703915 - A

2

CHAIN NLA - 68 pitch - oval shape link - Diamond - Was 6731217 - A

2

6689652

CHAIN, DRIVE 68 pitch - hour glass shape link - Tsubaki

2

6510171

LINK conn. - hour glass shape - Diamond

2

6675332

LINK conn. - oval shape - Diamond

2

6690709

LINK conn. - hour glass shape - Tsubaki

3

CHAIN NLA - 62 pitch - hour glass shape link - Diamond - Was 6579127 - A

3

CHAIN NLA - 62 pitch - oval shape link - Diamond - Was 6731218 - A

3

6689651

CHAIN, DRIVEX 62 pitch - hour glass shape link - Tsubaki

3

6510171

LINK conn. - hour glass shape - Diamond

3

6675332

LINK conn. - oval shape - Diamond

3

6690709

LINK conn. - hour glass shap - Tsubaki

4

CHAINCASE See BTI313 NLA

4

CHAINCASE See BTI313 NLA - Was 6706916 - A

5

35C1028

BOLT

6

85D10

NUT, 5

7

25K30508

O-RING, 10

8

MOUNT ASSY. See Illustration MOTOR CARRIER/ B17597 NLA - DRIVE MOTOR - Order Ref. 14, 15 & (6) OF Ref. 16 - WAS 6703139 - A

9

25K30202

O RING 10 supplied W/motor

10

MOTOR KIT See Illustration HYDROSTATIC MOTOR/ D2124 W/REF. 9

11

6701097

WASHER .25'' (6,4 mm) thickness - Was 6803867 - A

12

17C828

BOLT

13

6633583

SEALANT, POLYURETHANE 300 ML Use between 4 & 8

14

MOUNT ASSY. See Illustration MOTOR CARRIER/ B17597 NLA - DRIVE MOTOR - Order Components - A

15

6704878

GASKET install W/Rib toward chaincase

16

35C1032

BOLT
