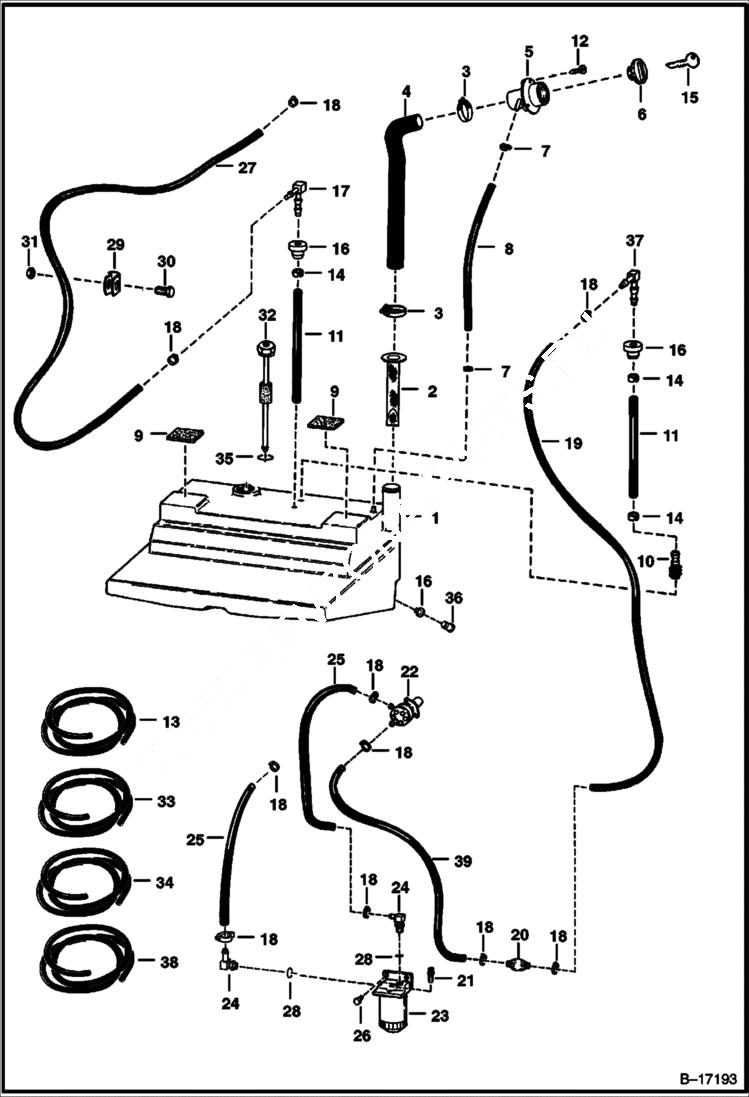

Запчасти Bobcat 700s FUEL SYSTEM MAIN FRAME

1

TANK NLA - Order 6717572 Tank, Ref. 16 (6717402 Bushing) & Ref. 36 (6717401 Plug) -Was 6575897 - A

1

6736659

TANK, FUEL Was 6717572 - A

2

7120881

SCREEN, FILLER Was 6569219 - A

3

42H32

HS CLAMP5 Was 42H000024B - B

4

6702261

HOSE

5

6701449

FILLER TUBE

6

6661114

CAP. DIESEL green - Was 6632468 - A

6

CAP NLA - locking - W/Ref. 15 - Code GC020- Was 6654373 - A

6

6661696

CAP, FUEL LOCKING locking - W/Ref. 15 - Code PK510

7

42H10

HOSECLAM5

8

HOSE NLA - 34'' (863,6 mm)long - Order Ref. 13

9

6578278

PAD self adhesive one side

10

6650239

SCREEN, FUEL PICKUP

11

6576386

HOSE Was NLA - A

12

6706517

SCREW Was 6579119 - A

13

6578172

HOSE bulk - sold per foot

14

6661213

RING, COMPRESSION

15

6654374

KEY Code GC020

15

6587458

KEY Code PK510

16

6553411

BUSHING 0.38'' ID

16

6717402

BUSHING 0.54'' ID

17

6598908

ELBOW

17

6598908

ELBOW

18

42HS04

CLAMP, HOSE Was 6515575 - B

19

HOSE NLA - 35'' (889,0 mm) long - Order Ref. 33

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

6658180

PLUG, BLEED

22

6655216

FUEL PUMP See Illustration FUEL & INJECTION PUMP/ B24707A

23

6667353

FILTER ASSY W/Ref. 21 - Was 6657020 - A

23

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

23

72F1

FITTING

24

ELBOW NLA - W/Ref. 28 - flat boss face - Was 6657083 - A

24

6715183

ELBOW W/Ref. 28 - check boss face to determine correct replacement o-ring

25

HOSE NLA - 13'' (330,2 MM) LONG - Order Ref. 34

26

17C512

BOLT 5 Was 84G003110B - B

27

HOSE NLA - 58'' (1473,2 mm) long - Order Ref. 38

28

79K5

O RING 10 flat boss face

28

99K5

O-RING tapered boss face

29

30H36

CLIP

30

17C612

BOLT 5

31

61D6

NUT 5

32

SENSOR NLA - fuel - W/Ref. 35 (79K-14 O-ring) - Order 6658958 Sensor - Was 6658958 - A

32

6658958

SENSOR fuel - W/Ref. 35 (6717579 Gasket)

33

6577821

HOSE bulk - sold per foot

34

6577822

HOSE bulk - sold per foot

35

79K14

O RING 10 Was 79K000020B - B

35

6717579

GASKET

36

6599645

PLUG, STEEL fuel drain - .5'' O.D.

36

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

37

7101291

ELBOW Was 6681382 - A

38

6578169

HOSE bulk - sold per foot - 0.19'' ID

39

HOSE NLA - 18'' (457,2 mm)long - Order Ref. 33
