Запчасти Bobcat 700s TIMER KIT (Fuel Shutoff Solenoid) ACCESSORIES & OPTIONS

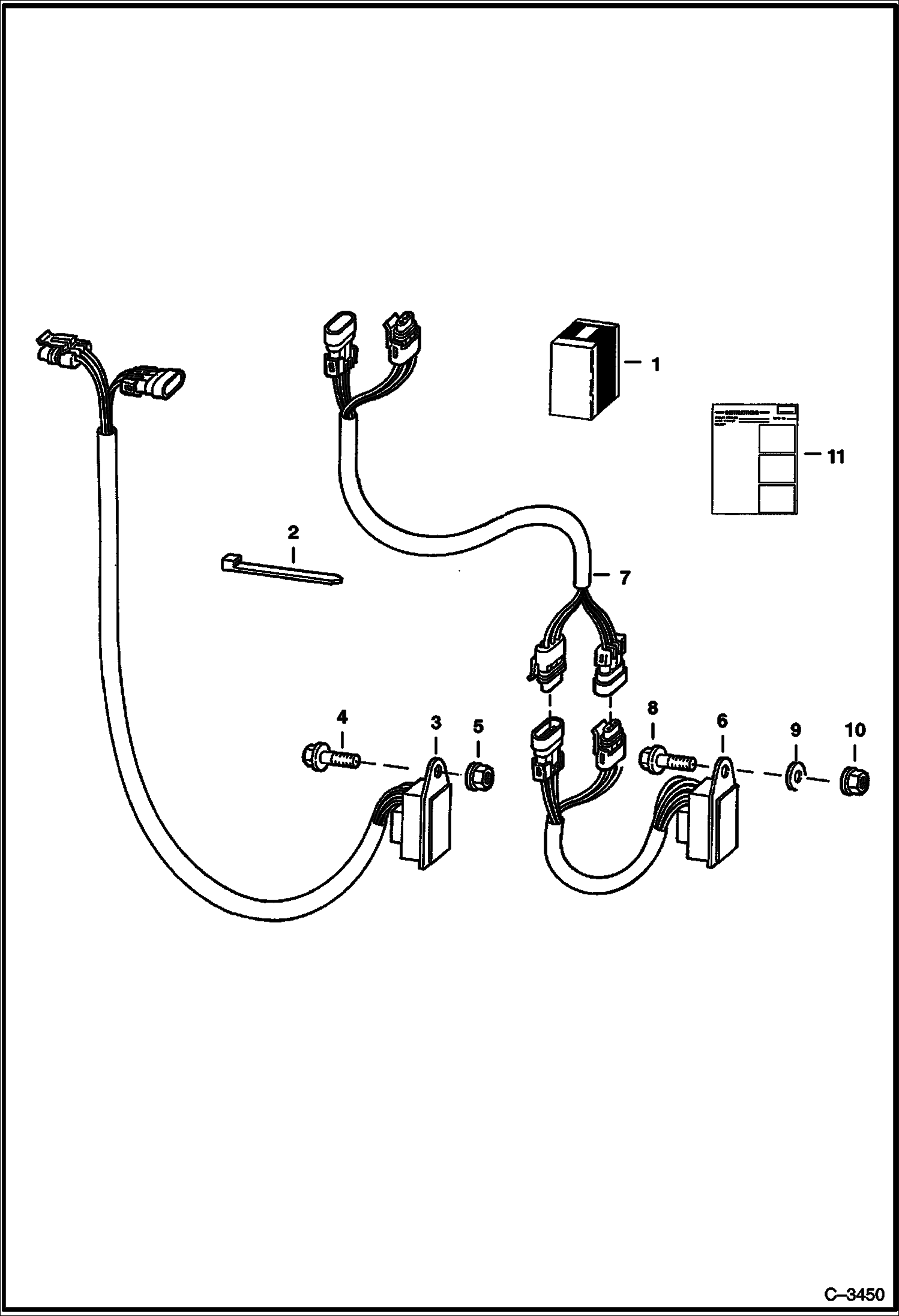

Схема запчастей Bobcat 700s - TIMER KIT (Fuel Shutoff Solenoid) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6705151

KIT timer - Ref. 2 & 6-11

2

6610510

TIE

3

TIMER NLA - solenoid - Order Ref. 1 - Was 6661372 - A

4

35C516

BOLT 10 Not in Kit

5

85D5

NUT 5 Not in Kit

6

6669415

TIMER, SOLENOID

6

6702444

FUSE 25A 5 25 amp Was 6670808 - A

7

6713879

HARNESS 16''(406,4 mm) long

8

35C416

BOLT

9

25E13

WASHER 5

10

83D4

NUT 10

11

6722304

INSTRUCTIONS

Выбрано товаров: 12
