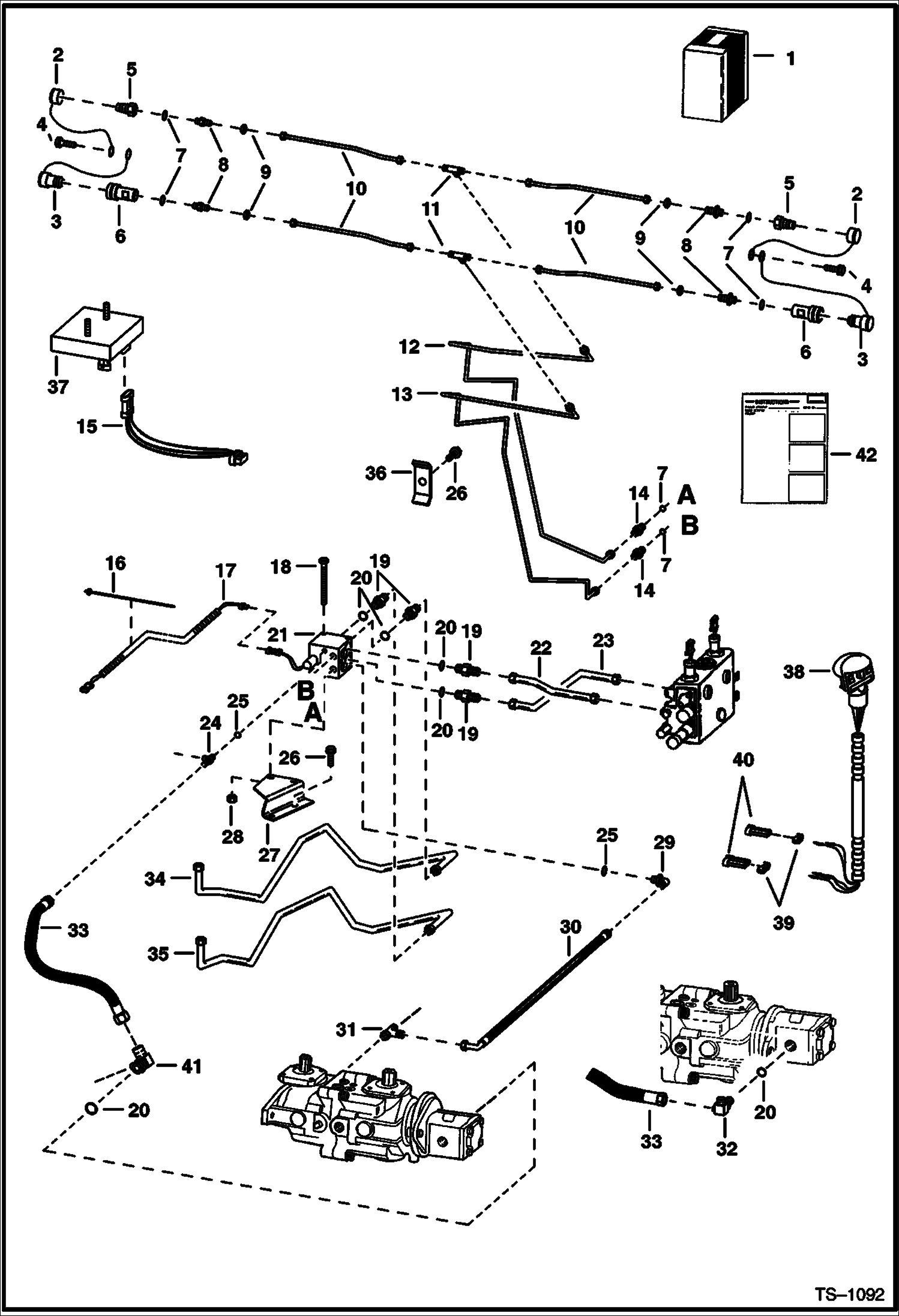

Запчасти Bobcat 700s REAR AUXILIARY ACCESSORIES & OPTIONS

1

6703994

KIT Ref. 2 - 36 & 42- Was SALES - D

1

6706603

KIT Ref. 2 - 40 & 42- Was SALES - D

1

6706603

KIT

2

1513549

CAP

3

1519324

PLUG

4

84G3712

BOLT 5

5

6648969

QUICK COUPLER male

6

6648967

QUICK COUPLER female

6

6655795

SEAL KIT

7

79K6

O RING 10

8

45K5

FITTING

9

86F5

NUT

10

6703993

TUBE

11

10K5

TEE

12

6703992

TUBE

13

6703991

TUBE

14

15K5

FITTING W/Ref. 7

15

6704114

HARNESS

16

6610510

TIE Was 1715312B - A

17

6704203

HARNESS

18

17C676

BOLT

19

15K8

FITTING W/Ref. 20

20

79K12

O RING 10

21

VALVE See Illustration REAR AUXILIARY VALVE/ B12959

22

6703990

TUBE

23

6703989

TUBE

24

21K3

CONNECTOR See Illustration LIFT CONTROL SYSTEM/ TS1185 W/Ref. 25

25

79K4

O RING 10

26

84G3716

SCREW 5

27

6704003

BRACKET

28

83D6

NUT 5 Was 61D000006B - B

29

17K3

ELBOW W/Ref. 25

30

6704212

HOSE

31

13K5

TEE See Illustration HYDROSTATIC CIRCUITRY/ B17620

32

6578256

ELBOW W/Ref. 20

33

6530858

HOSE Was 6539858 - D

34

6703988

TUBE

35

6703987

TUBE

36

6502773

CLAMP

37

MODULE See Illustration CONTROLS ELECTRICAL/ B17635 NOT IN KIT

38

6680414

HANDLE ASSY. R.H. - Also Order Ref. 39 & 40 - Was 6705921 - A

39

6641180

LOCK Use W/ 2-pin connector

39

6640700

LOCK 3-pin

40

6641179

CONNECTOR 2-pin

40

6640699

CONNECTOR 3-pin

41

6704693

TEE See Illustration LIFT CONTROL SYSTEM/ TS1185 W/Ref. 20 - NOT IN KIT

42

6722060

INSTRUCTIONS
