Запчасти Bobcat 700s LIGHT KIT (Front and Rear) ACCESSORIES & OPTIONS

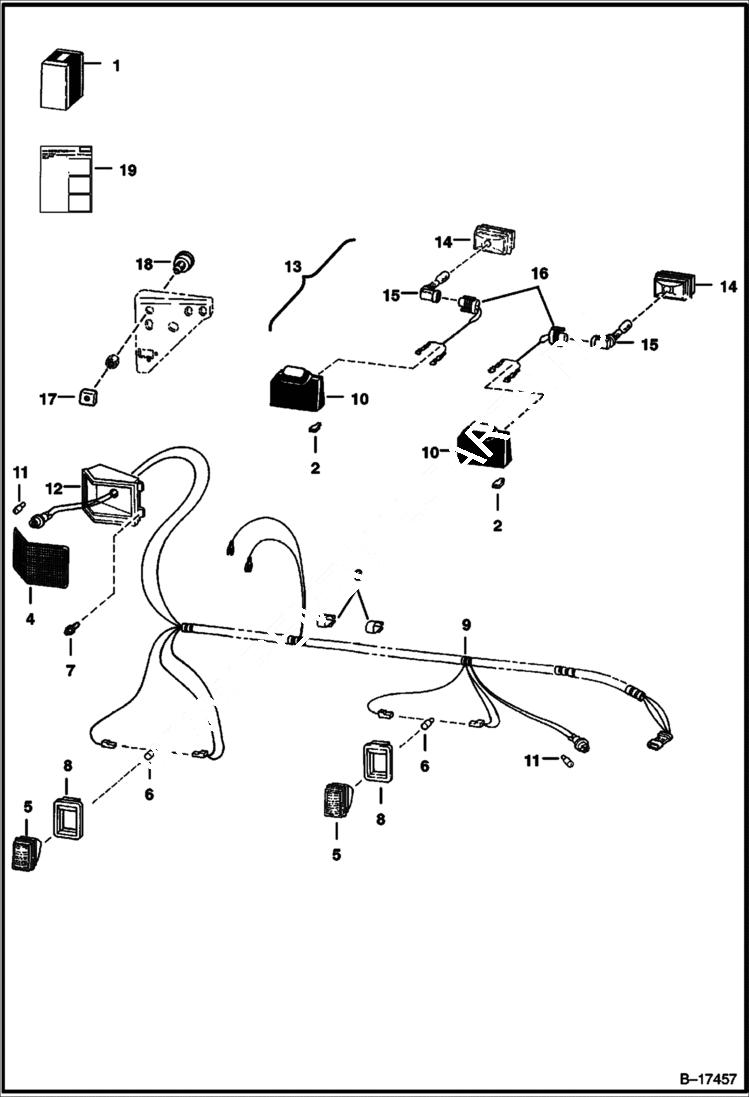

Схема запчастей Bobcat 700s - LIGHT KIT (Front and Rear) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6704751

LIGHT KIT front & rear - Ref. 2-16 & 19

2

6519548

CONNECTOR

3

30H35

CLAMP 10

4

6703797

LENS

5

6661353

LIGHT ASSY w/Ref. 6 - Was 6665922 - B,D

5

6665431

SOCKET threaded bulb

6

898731

1156 BULB

7

6706517

SCREW self tapping - Was 6704400 - A

8

6703796

MOUNT

9

6704232

HARNESS lights

10

6578824

HOUSING rubber

11

6649481

LIGHT, WEDGE BASE

12

6704362

HOUSING light

13

6577801

LIGHT Ref. 10 & 14-16

14

6649478

BULB HOUSING

15

6650111

LAMP

16

6578528

HARNESS light

17

6599781

KNOB See Illustration CAB ELECTRICAL CIRCUITRY/ E2205 See Illustration CAB ELECTRICAL CIRCUITRY/ E2206 LIGHT SWITCH - NOT IN KIT

18

6512808

SWITCH See Illustration CAB ELECTRICAL CIRCUITRY/ E2205 See Illustration CAB ELECTRICAL CIRCUITRY/ E2206 W/Ref. 17 - NOT IN KIT

19

6722198

INSTRUCTIONS

Выбрано товаров: 20
