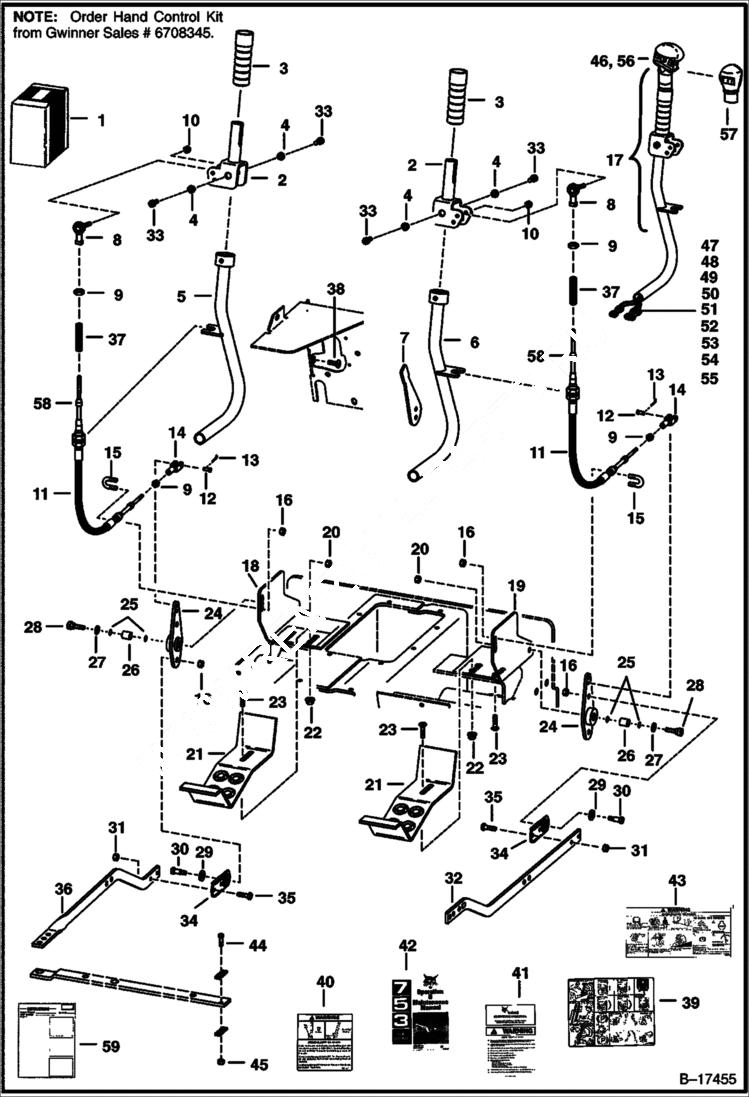

Запчасти Bobcat 700s HAND CONTROL KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-45, 47, 48, 52 & 53 - Cobra style handles - Order individual parts-Was 6703631 - A

1

KIT NLA - Ref. 2-48, 52, 53, 56 & 59 - Multi-switch handles -Order individual parts-Was 6706822 - A

1

KIT NLA - Ref. 2-6, 8-43, 46-56 & 59 - Multi-switch handles - Order individual parts-Was 6708345 - A

2

6702786

LEVER Use W/Ref. 11 - 6658613 cable

2

6707349

LEVER Use W/Ref. 11 - 6666379 cable

3

6702621

GRIP Use W/Ref. 11 - 6658613 cable

3

6707367

GRIP Use W/Ref. 11 - 6666379 cable

4

6702990

BUSHING bronze sleeve

5

6702787

LEVER Use W/Ref. 11 - 6658613 cable

5

6707351

LEVER Use W/Ref. 11 - 6666379 cable

6

6702791

LEVER Use W/Ref. 11 - 6658613 cable

6

6707352

LEVER Use W/Ref. 11 - 6666379 cable

7

6702775

LEVER throttle - not used on 6708345 Kit

8

6631036

JOINT

9

8D4

NUT

10

86D4

NUT

11

6658613

CABLE 31.5'' (800,1 mm) long

11

6666379

CABLE 33.5'' (850,9 mm) long

12

4F4051

PIN

13

6513495

COTTER PIN

14

2J4200

CLEVIS

15

6592766

U-BOLT

16

83D5

NUT 5

17

LEVER ASSY. NLA - R.H. - Cobra style handles - Order (2) ea. of Ref. 2-4, 6, 33, 47, 48, 52-56 & 6666379 cable - Was 6704487 - A

17

LEVER ASSY. NLA - R.H. - Multi-switch style Handles - Order (2) ea. of Ref. 2-4, 6, 33, 47, 48, 52-56 & 6666379 cable - Was 6707099 - A

17

LEVER ASSY. NLA - R.H. - Multi-switch style Handles - W/Ref. 2-4, 6, 33, 47, 48 & 52-56 - Order individual parts - Was 6707365 - A

17

LEVER ASSY. NLA - L.H. - Cobra style handles - Was 6704488 - A

17

LEVER ASSY. NLA - L.H. - Multi-switch style Handles - Was 6707100 - A

17

LEVER ASSY. NLA - L.H. - Multi-switch style Handles - W/Ref. 2-5, 7, 33 & 46-53 - Order individual parts - Was 6707366 - A

18

6706420

MOUNT cable - Was 6702778 - A

19

6706421

MOUNT cable - Was 6702777 - A

20

85D6

NUT, 5

21

6702776

BRACKET

22

57D6

NUT 5

23

37C620

BOLT carriage

24

6706281

BELLCRANK W/Ref. 26 - Was 6704292 - A

25

58K014

O-RING 10

26

6702782

BUSHING bronze - Not in Kit

27

6655781

BEARING thrust

28

38C816

BOLT shoulder

29

6563914

WASHER

30

38C610

BOLT Was 6704285 - A

31

85D4

NUT 5

32

6702774

LINK tilt

33

38C606

BOLT shoulder

34

6658682

BEARING swivel

35

17C410

BOLT 10

36

6702773

LINK lift

37

6658930

BOOT

38

25G612

SCREW socket hex head

39

6703724

DECAL operating

40

6703726

DECAL warning

41

6703678

HANDBOOK KIT W/wire rope

41

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

41

6558310

SLEEVE wire rope

42

6724033

MANUAL operator - Was 6900369 - B,D

43

6703725

DECAL warning

44

38C612

BOLT

45

59D6

NUT

46

6680412

HANDLE ASSY LH - deluxe - multi switch - Was 6707976 - A

46

6640690

PIN

46

6640691

PIN

46

6641176

SEAL

46

6662257

PIN

46

6706568

KIT See Illustration HANDLE KITS/ TS1190 MULTI-SWITCH -L.H. - INCLUDES REF. 46-53

46

6680447

DECAL Was - 6677370 - A

47

6641179

CONNECTOR 2-pin

48

6640699

CONNECTOR 3-pin

49

6641178

CONNECTOR 2-pin

50

6664599

CONNECTOR 3-pin triangle

51

6664800

LOCK 3-pin triangle

52

6640700

LOCK 3-pin

53

6641180

LOCK Use W/ 2-pin connector

54

6641173

CONNECTOR 6-pin

55

6641181

LOCK 6-pin

56

6680413

HANDLE ASSY RH - deluxe - multi switch - Was 6706340 - A

56

6640690

PIN

56

6641176

SEAL

56

6706567

KIT See Illustration HANDLE KITS/ TS1190 RH - multi switch - Ref. 47, 48 & 52-56

57

6704454

HANDLE ASSY. Cobra style

58

6666534

SEAL

59

6722847

INSTRUCTIONS Was 6720917 - A
