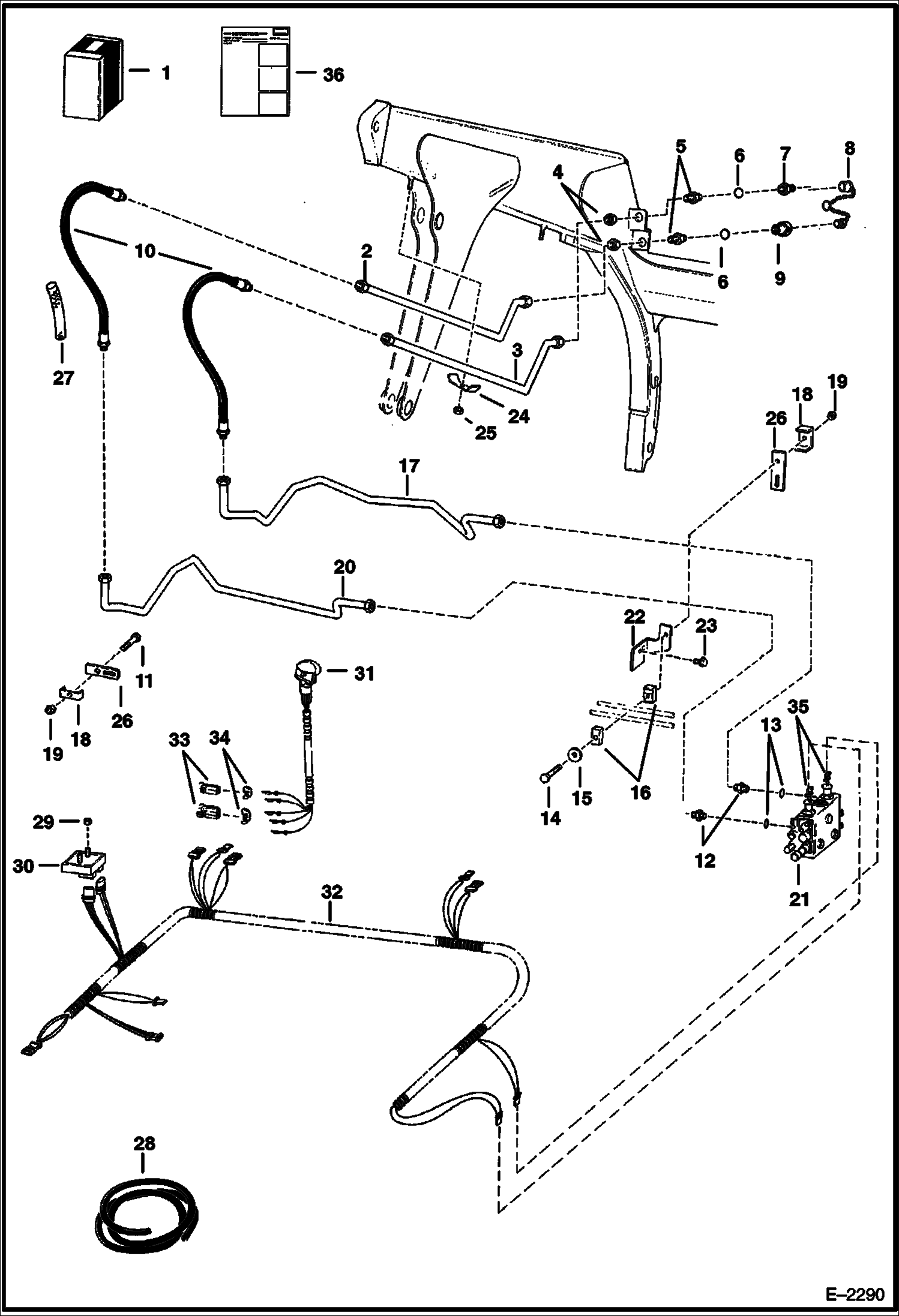

Запчасти Bobcat 700s FRONT AUXILIARY KIT ACCESSORIES & OPTIONS

1

6709073

KIT front aux. - Ref. 2 - 11, 14, 17-20 & 24 - 36 - Also order 6702999 Harness - This Kit is released for Model 773. For this Kit to work on Model 7753 also order 6702999 Harness

2

6704405

TUBE

3

6704404

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG Assy. (Rubber)

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

HOSE NLA - Use W/Ref. 27 - Was 6703814 - A

10

6715930

HOSE W/cover

11

17C536

BOLT

12

15K8

FITTING W/Ref. 13 - Not in Kit

13

79K12

O RING 10 Not in Kit

14

17C548

BOLT

15

872229

WASHER Not in Kit

16

6701892

CLAMP Not in Kit

17

6703922

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

6703923

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17618 NOT IN KIT

22

6704619

MOUNT Not in Kit

23

84G3112

BOLT 5 Not in Kit

24

6502203

CLAMP

25

85D6

NUT, 5

26

6702548

PAD

27

COVER NLA - 30''(762 mm) long - Order Ref. 28

28

6705749

SHIELD bulk - Sold Per Foot - 1.85'' (46,9 mm) I.D. - poly corrugated

29

85D4

NUT 5

30

6671669

MODULE, CONTROL AUX Was 6669529 - C

31

6680414

HANDLE ASSY. 2-switch - Was 6705921 - A

31

6640690

PIN

31

6641176

SEAL

32

6710365

HARNESS for 773 only

32

6702999

HARNESS for 7753 only - Not in Kit

33

6641179

CONNECTOR 2-pin

33

6640699

CONNECTOR 3-pin

34

6641180

LOCK Use W/ 2-pin connector

34

6640700

LOCK 3-pin

35

6717708

COIL, 14 VOLT 14 volt - Was6665759 - A

35

6679961

NUT w/nut

36

6724286

INSTRUCTIONS
