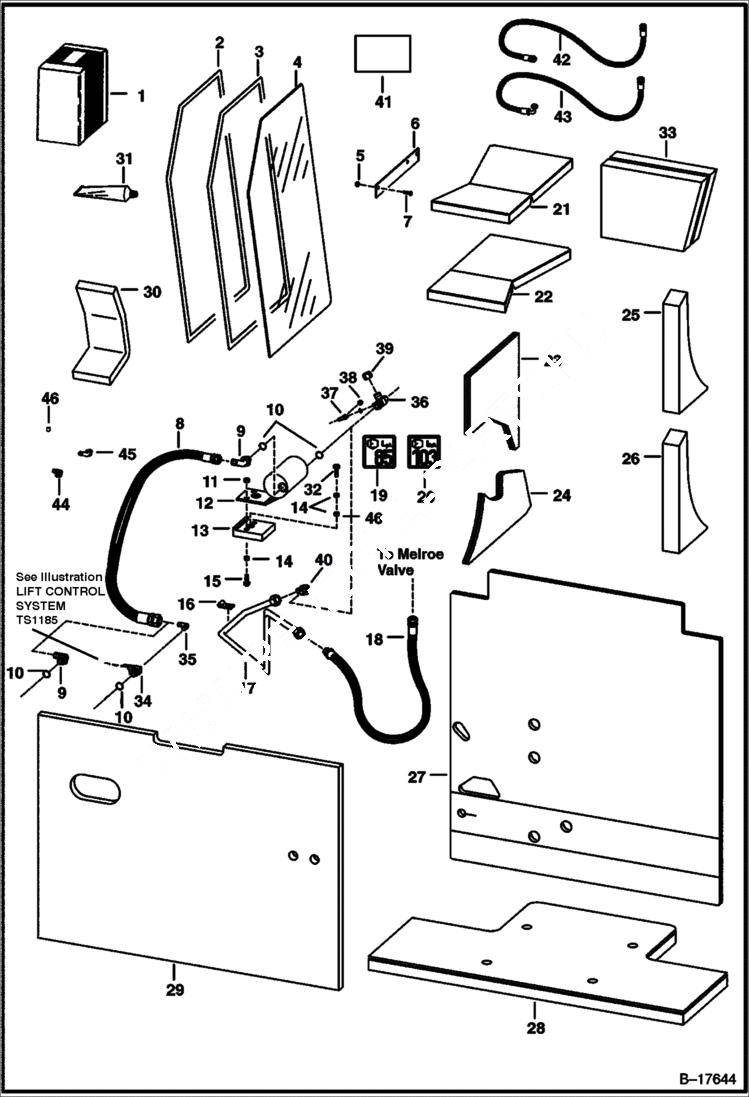

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Sound Option) ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2 - 33

2

6631549

HOOK scotchmate

3

6631548

LOOP scotchmate

4

6702731

WINDOW, CAB cab

5

83D4

NUT 10 Was 61D000004B - B

6

6700875

RETAINER window

7

35C410

BOLT 5 Was 17C000410B - B

8

6662866

HOSE

9

17K8

FITTING W/Ref. 10

9

17K8

FITTING Use on application W/Ref 35 - W/Ref. 10

10

79K12

O RING 10

11

85D6

NUT, 5

12

6659982

MUFFLER hydraulic - Was 6703648 - A

13

MOUNT NLA - rubber - Order 6705333 Mount & Ref. 14 & 32 - Was 6703477 - A

13

6705333

MOUNT rubber

14

6562619

BUSHING

15

35C616

BOLT 5

16

30H42

CLAMP

17

6704618

TUBE muffler

18

6702230

HOSE

18

6662868

HOSE Was 6661073 - A

19

6579385

DECAL sound level warning

20

6579403

DECAL sound level warning

21

6732722

INSULATION crossmember - L.H. - Was 6704721 - A

22

6732723

INSULATION crossmember - R.H. - Was 6704722 - A

23

6719332

INSULATION blower housing-Was 6704725 - A

24

6704769

INSULATION blower housing

25

6704741

INSULATION upright - R.H.

26

6704742

INSULATION upright - L.H.

27

6706515

INSULATION cab back - Was 6704778 - A

28

6704754

INSULATION seat pan

29

6704752

INSULATION rear door

30

6703331

INSULATION air inlet - L.H.

31

6633583

SEALANT, POLYURETHANE 300 ML

32

84G3724

BOLT

33

6705848

INSULATION transmission

34

6700599

ELBOW 90 degree - W/Ref. 10

35

1316049

ELBOW 90 degree

36

6707103

CONNECTOR cross 90 union

37

21K3

CONNECTOR Use W/Ref. 36

38

36K3

CAP Use W/Ref. 36

39

36K8

CAP Use W/Ref. 36

40

17K8

FITTING 90 degree - W/Ref. 10

41

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

42

6707301

HOSE

43

6707302

HOSE

44

6715190

ELBOW Was 6707317 - A

45

6707895

ELBOW 45 degree (for LCS) when using Ref. 12

46

6715744

BUSHING
