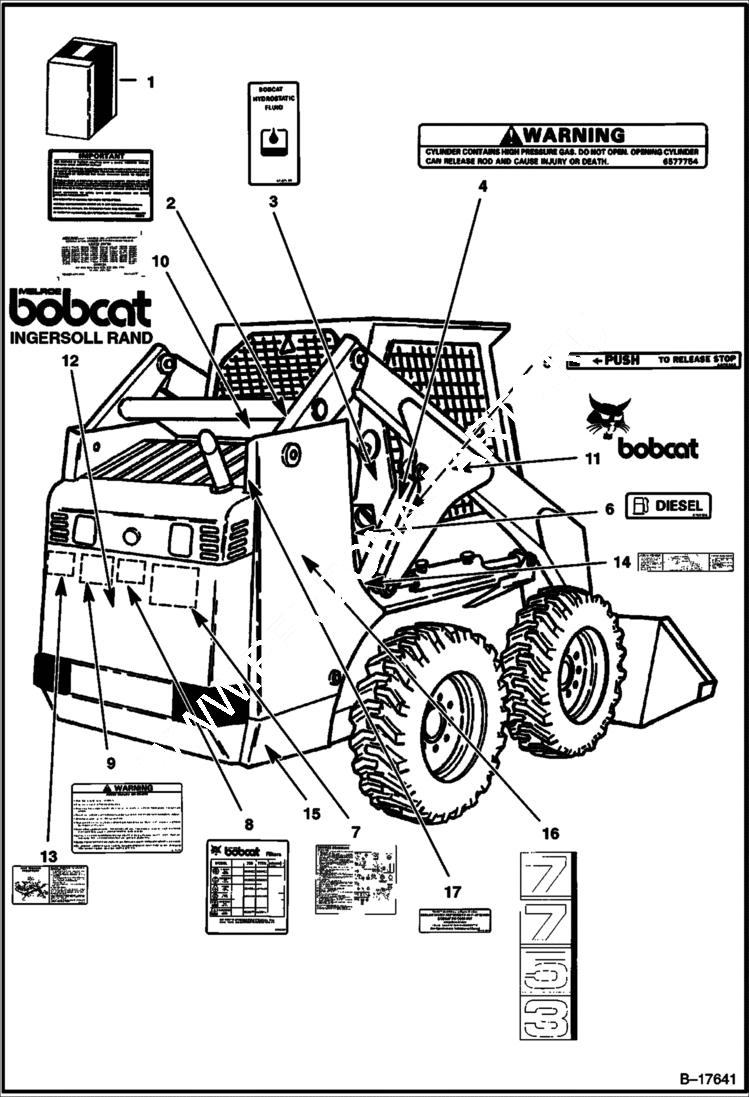

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6702067

KIT See Illustration DECALS/ B17640 DECAL - REF. 2-14 ON THIS PAGE & REF. 2-16

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6700388

DECAL diesel

7

6708212

DECAL service - Was 6703480 - A

8

6709781

DECAL filters - Was 6700237 - A

9

6579511

DECAL warning

10

DECAL NLA - patent - Was 6557224 - C

11

6703645

DECAL R.H. - Bobcat head - for black lift arms

11

6703646

DECAL L.H. - Bobcat head - for black lift arms

11

6557412

DECAL RH - Bobcat head - white lift arms

11

6557413

DECAL LH - Bobcat head - white lift arms

12

DECAL NLA - Bobcat Logo - Was 6727307 - A

13

6705220

DECAL belt tension - for fixed idler

13

6709030

DECAL belt tension - spring loaded idler - Was 6711905 - B,D

14

6706557

DECAL boom stop - Was 6703933 - A

15

DECAL NLA - trim R.H. -Shown - Not in Kit - Was 6578541 - A

15

DECAL NLA - trim L.H. - Not Shown - Not in Kit - Was 6578542 - A

16

6703275

DECAL model no. R.H. - Not in Kit

17

6708929

DECAL, COOLANT propylene glycol

18

6565200

DECAL, FILTER
