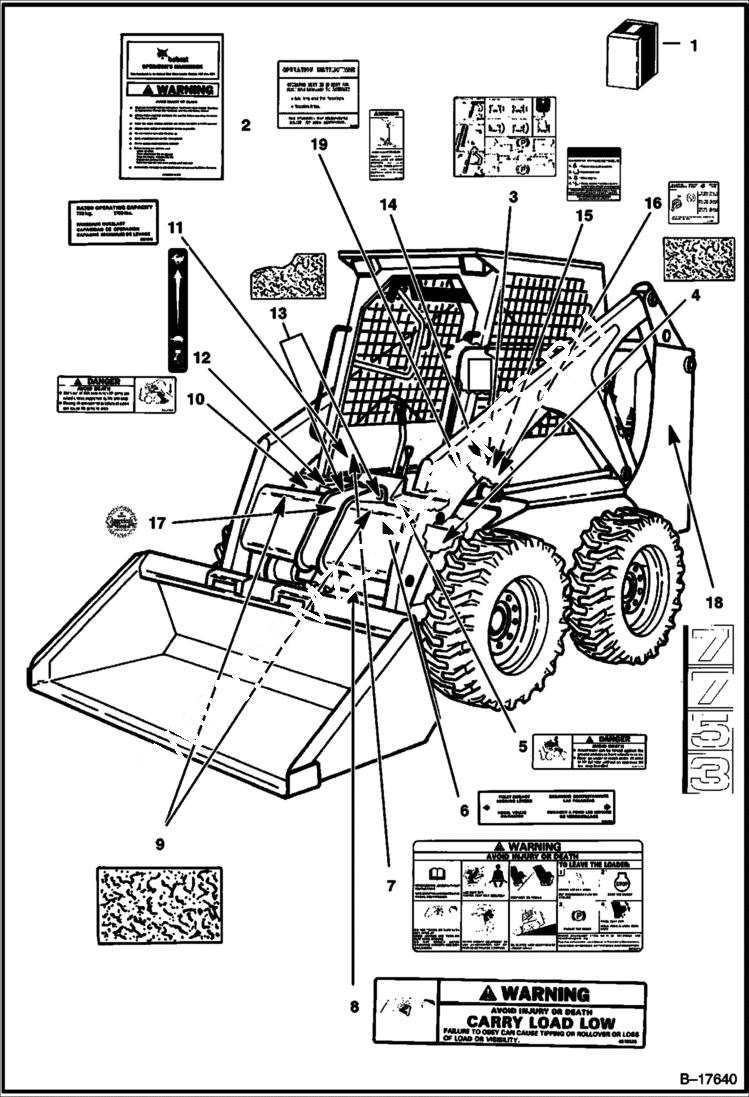

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6702067

KIT See Illustration DECALS/ B17641 DECAL - REF. 2-16 ON THIS PAGE & REF. 2-14

2

6708154

HANDBOOK, OPERATOR'S W/WIRE ROPE Was 6701899 - A

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

3

6703723

DECAL operating - Was 6702553 - A

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6702301

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6579510

DECAL waring

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6702302

DECAL, DANGER

11

6561376

DECAL capacity

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6707523

SAFETY TREAD LH - Was 6577949 - A

13

6707524

SAFETY TREAD RH

14

6705720

DECAL lock shield

15

6707134

DECAL instruction for LCS

16

6708105

DECAL pre-heat - Was 6705712 - A

17

6705088

DECAL America's Best - Not in Kit

18

6703276

DECAL model no. L.H. - Not in Kit

19

6727926

DECAL, OPERATION hand & foot controls - not in kit - A

19

6707255

DECAL operation - W/seat sensor
