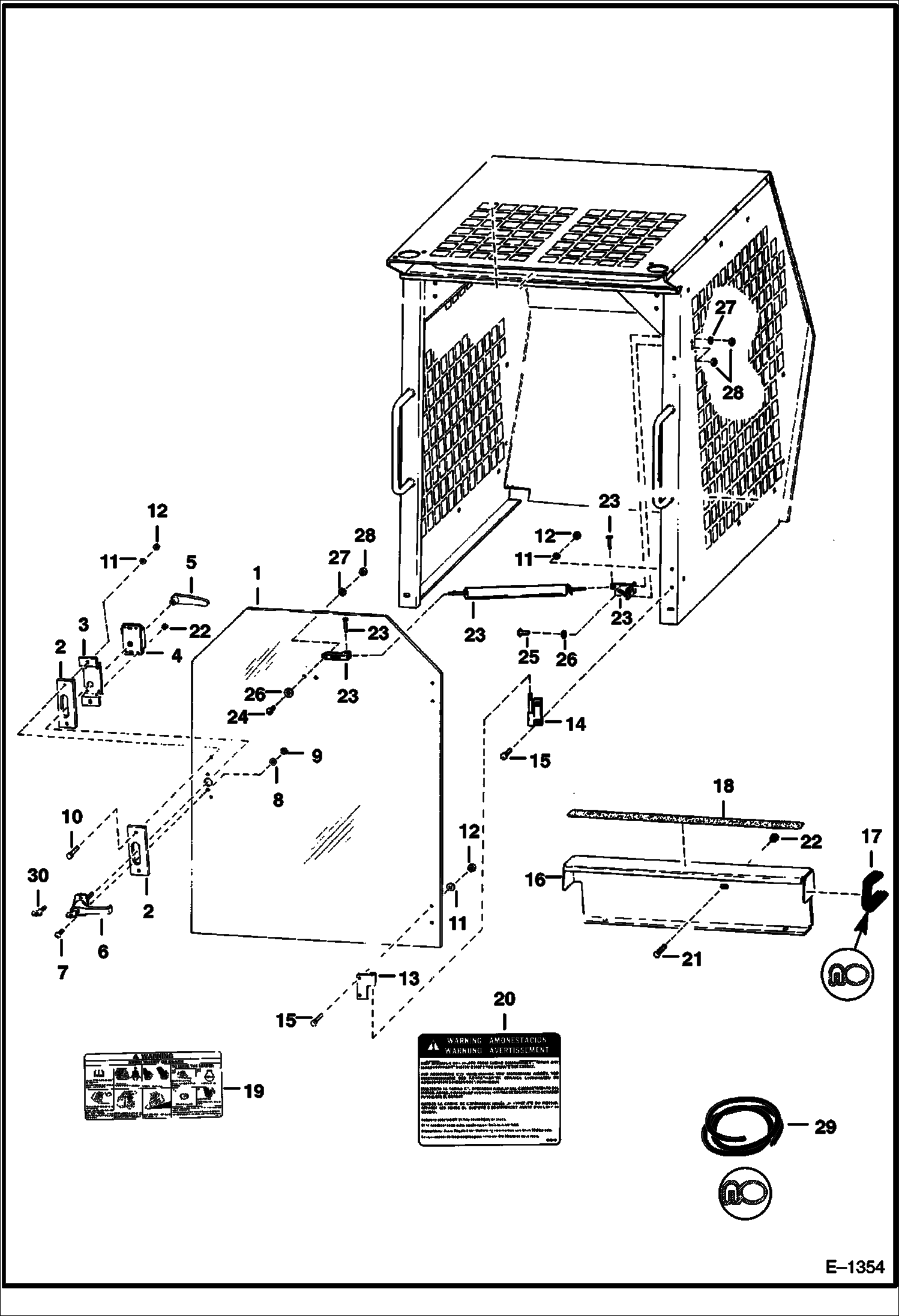

Запчасти Bobcat 700s CAB DOOR ACCESSORIES & OPTIONS

1

DOOR See Illustration CAB DOOR/ B17624 NLA - ORDER 6708973 DOOR KIT, 6708975 SHIELD KIT & 6708225 HARNESS

2

6555054

PLATE

3

6555059

BRACKET

4

6598475

DOOR LATCH

5

6515600

HANDLE

6

1550695

HANDLE outside - W/Key

7

75G1016

BOLT

8

25E10

WASHER

9

12D10

NUT

10

17C516

BOLT

11

25E15

WASHER

12

85D5

NUT 5

13

6555057

HINGE

14

6555055

HINGE

15

10C512

BOLT carriage - Was 6553808 - A

16

6579324

SHIELD

17

SEAL NLA - 6''(153,4 mm) long - Order Ref. 29

18

6564833

SAFETY TREAD

19

6579510

DECAL

20

6563410

DECAL

21

35C616

BOLT 5

22

57D6

NUT 5

23

6564858

CLOSER door

24

85G1212

BOLT

25

85G1208

BOLT

26

12E12

WASHER

27

25E12

WSHR

28

12D12

NUT

29

6555351

SEAL bulk - sold per foot

30

6665409

KEY
