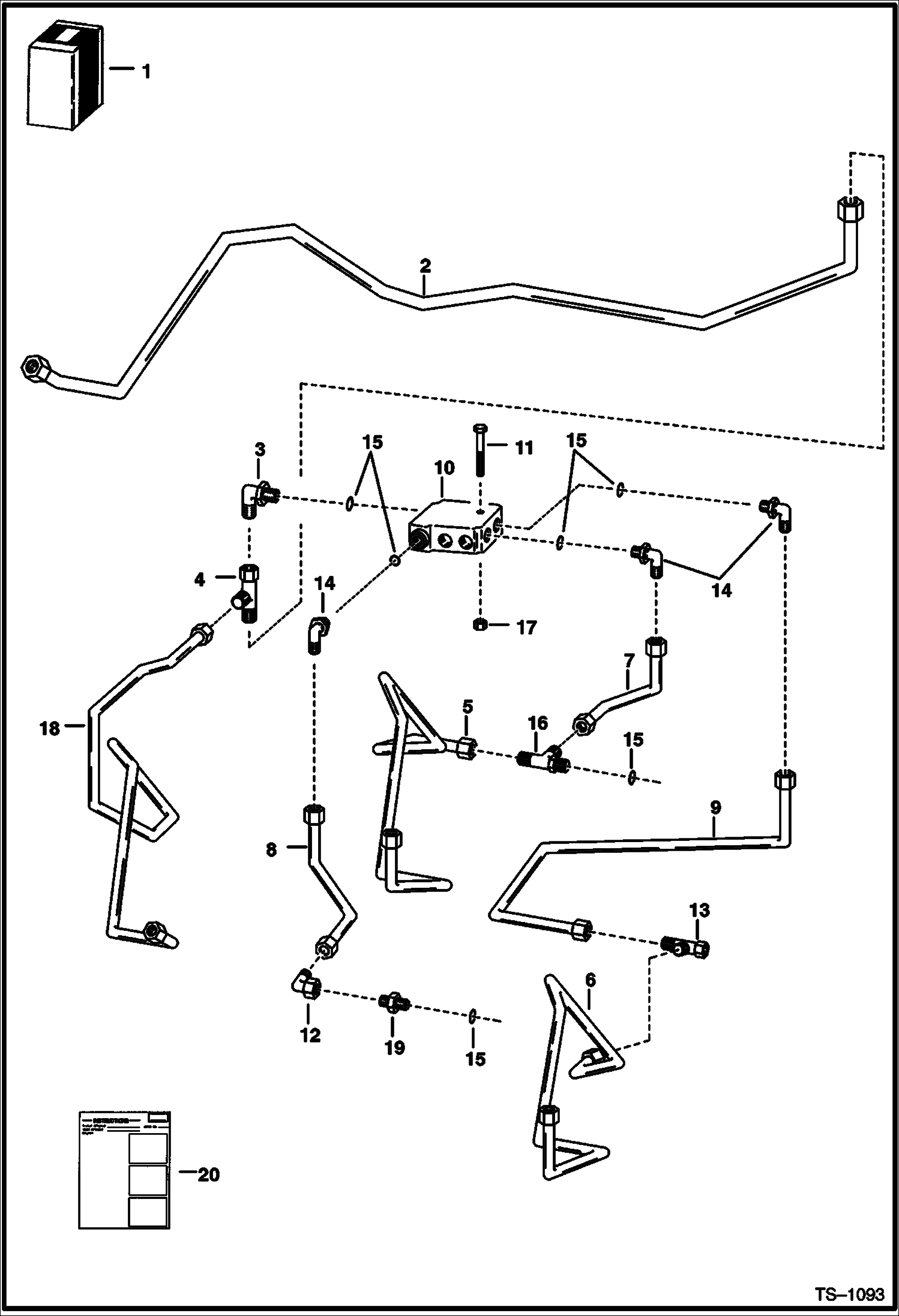

Запчасти Bobcat 700s BUCKET POSITIONING VALVE KIT ACCESSORIES & OPTIONS

1

KIT NLA - Order Ref. 2 - 20 - BPV equipped w/solenoid - See Installation Instruction 6720321 for other parts required for on/off function - Was 6703986 - A

2

6703985

TUBE

3

6634982

ELBOW

4

13K6

TEE

5

6703983

TUBE

6

6703982

TUBE

7

6579929

TUBE

8

6579930

TUBE

9

6579931

TUBE

10

VALVE NLA- Order 6673959 valve - If loader is not equipped with an on/off switch also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 load check- Was 6666341 - A

11

17C536

BOLT

12

11K7

ADAPTER Part of Rear Aux. Option

13

13K7

FITTING W/Ref. 15

14

17K7

ELBOW W/Ref. 15

15

79K10

O RING 10

16

21K7

TEE

17

85D5

NUT 5

18

6703984

TUBE

19

15K7

FITTING Not in Kit - Part of Base Equip.

20

6722059

INSTRUCTIONS
