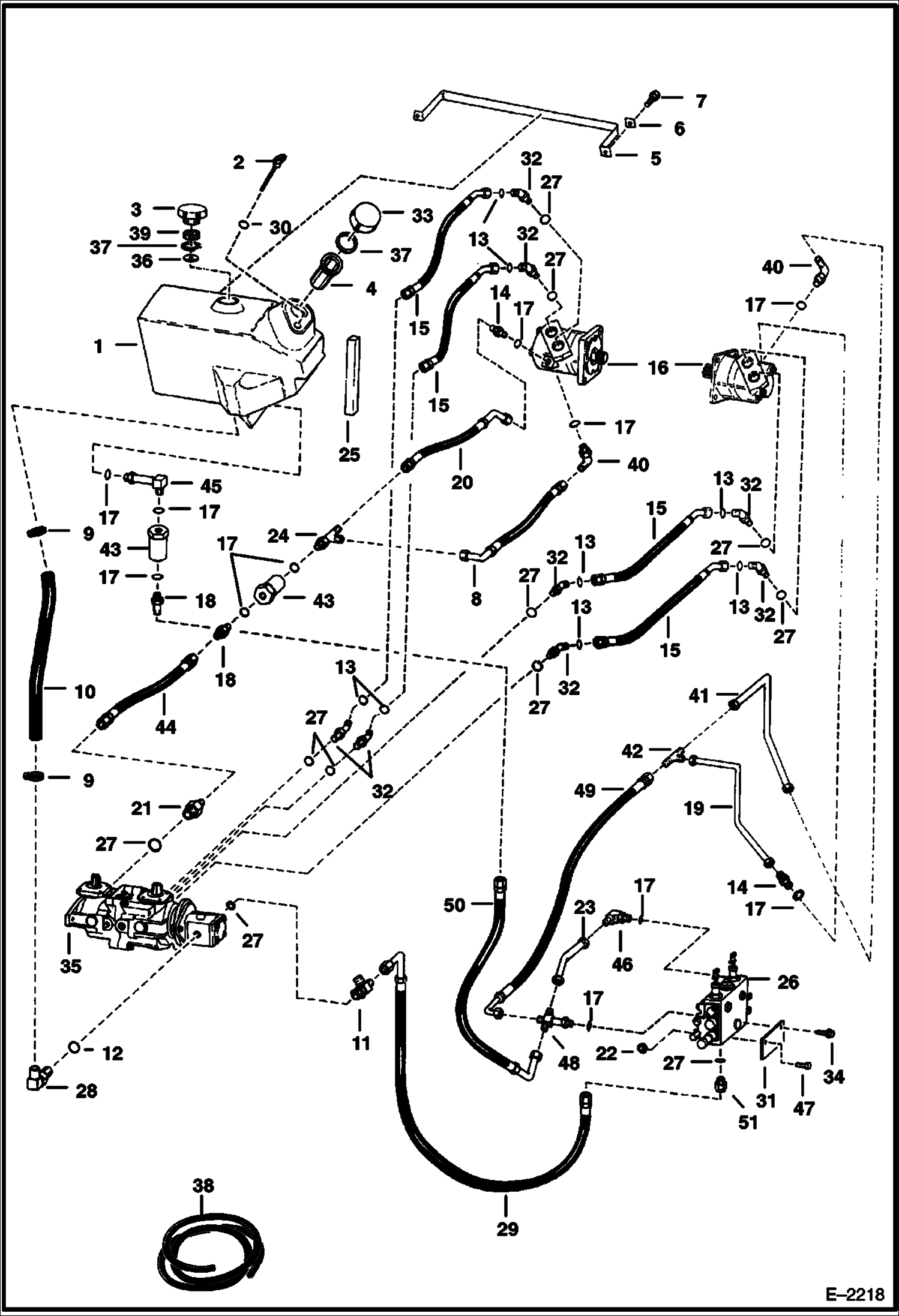

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 5096 35001-39898, 5096 16001-16504) HYDROSTATIC SYSTEM

1

6706451

TANK, HYD

2

6577459

DIPSTICK W/Ref. 30

3

6727475

CAP, OIL HYD breather - Also Order Ref. 37 & 39 - Was 6577785 - A

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6702494

BAND

6

6559447

WASHER

7

84G3712

BOLT 5

8

6578804

HOSE

9

44H20

CLAMP worm gear - Was 6666864 - A

9

5HM42

HOSECLAMP constant tension

9

6672281

CLAMP constant torque

10

6716423

HOSE 1.25'' (31,8 mm) I.D. - Was 6706452 - A

11

6704693

TEE W/Ref. 27 - connects to Ref. 29 on Ill. E2213 - check boss face to determine correct replacement o-ring

12

79K16

O RING 10

13

58K018

O-RING 10

14

6660443

RELIEF VALVE 65 PSI

15

6658106

HOSE, HYD ASSY

16

MOTOR KIT See Illustration HYDROSTATIC MOTOR/ D2124

17

79K6

O RING 10 flat boss face

18

15K5

FITTING W/Ref. 17

19

6706858

TUBE

20

6700025

HOSE

21

6578812

ADAPTER W/Ref. 27

22

85D5

NUT 5

23

6577690

TUBE

24

21K5

TEE W/Ref. 17

25

FOAM STRIP NLA - 16.12'' (409,5 mm) long - Order Ref. 38

26

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219 W/Ref. 22-24 & 34

27

79K12

O RING 10 flat boss face

27

99K12

O RING tapered boss face

28

6714905

ELBOW W/Ref. 12 - Was 6707409 - A

29

6662867

HOSE, HYD ASSY

30

25K20010

O RING 10

31

6704680

COVER outside of mainframe

32

6714902

ELBOW W/Ref. 27 - Was 69E000012B - A

33

6728149

CAP , HYD NON VENTED fill - Also Order Ref. 37 - Was 6532508 - A

34

84G3110

SCREW

35

PUMP See Illustration HYDROSTATIC PUMP/ D1929 See Illustration HYDROSTATIC PUMP/ D1979

36

6701552

BAFFLE

37

6700631

GASKET

38

6511855

SEAL self adhesive - bulk - sold per foot

39

6703427

FOAM FILTER

40

17K5

ELBOW W/Ref. 17

41

6706859

TUBE

42

10K5

TEE

43

6661022

FILTER, OIL HYD IN-LINE

44

6706787

HOSE

45

6715190

ELBOW W/Ref. 17 - Was 6707317 - A

46

6558510

ELBOW See Illustration HYDRAULIC CONTROL VALVE/ E2219 W/Ref. 17

47

17C532

BOLT 5

48

CONNECTOR See Illustration HYDRAULIC CONTROL VALVE/ E2219 NLA - W/Ref. 17 - W/O FLARED END O-RING - WAS 6588188 - A

48

6817553

CROSS W/Ref. 17 - W/ flat boss face - Was 6805241 - A

48

97K6

O RING flared end

49

6706790

HOSE

50

6707301

HOSE

51

15K8

FITTING W/Ref. 27 - flat boss face

51

ADAPTER NLA - W/Ref. 27 - tapered boss face - Was 15KN00008B - A

51

97K12

O'RING flared end

51

15KB1212

FITTING, HYD CONNECTOR W/Ref. 27 - flat boss face
