Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

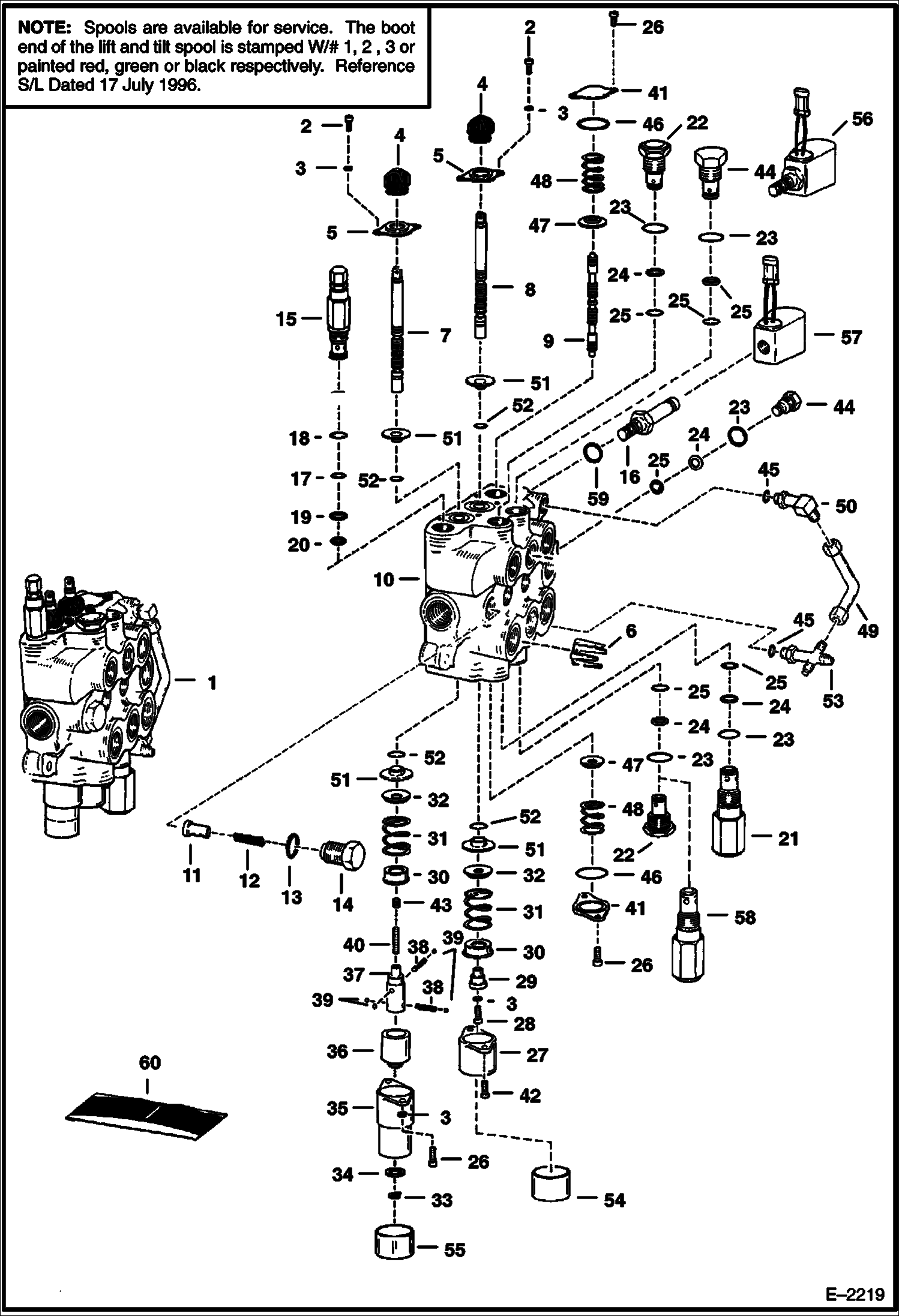

Схема запчастей Bobcat 700s - HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE See BTI307 NLA - Ref. 2 - 55 - W/Long spools - before ordering repair parts, make sure that this is the corret style valve - Also reference valve on Ill. E2255, E2318 & B17196 - valve shown here

2

6588165

SCREW

3

22E4

WASHER

4

6587763

BOOT

5

6592123

RETAINER stamped

6

6534630

RESTRICTOR .134/.141

7

6666576

SPOOL lift - #1 or red - SEE NOTE

7

6666577

SPOOL lift - #2 or green - SEE NOTE

7

6666578

SPOOL lift - (3) black - SEE NOTE

8

6666579

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666580

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666581

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

VALVE NLA - main relief - W/Ref. 17 - 20 - 2950-3050 PSI - press. preset at factory - Was 6676197 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6665758

VALVE W/Ref. 59

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6599161

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25

22

6667549

VALVE anti-cavity check - W/Ref. 23-25 - Was 6661345 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING back-up washer not required

26

6588982

SCREW

27

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - A

28

6588166

SCREW

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW

41

6588981

END CAP .62'' thick

42

6588164

SCREW

43

PLUG NLA - plastic - Order 6596807 Plug & (2) of 54K020002B O-Ring - Was 6592752 - A

43

6596807

PLUG plastic - 0.46'' long

43

54K20002

O'RING 10

44

6592720

PLUG W/Ref. 23-25

45

79K6

O RING 10 flat boss face

46

58K124

O RING 10

47

6537096

WASHER

48

6588197

SPRING

49

6577690

TUBE

50

6558510

ELBOW W/Ref. 45

51

6538466

BUSHING

52

6665089

SEAL See BTI374 - lip seal

52

6646372

SEAL See BTI374 - quad ring seal

53

CONNECTOR NLA - W/Ref. 45 - W/O flared end O-ring - Was 6588188 - A

53

6817553

CROSS W/Ref. 45 - flat boss face - Was 6805241 - A

53

97K6

O RING flared end

54

6662848

CAP

55

6631704

CAP Use W/7101345 Bonnet

56

6653395

VALVE, SOLENOID Ref. 16 & 57

56

6586459

SEAL KIT

57

6717708

COIL, 14 VOLT 14 volt - W/nut - Was 6665759 - A

57

6679961

NUT

58

6664373

VALVE optional - port relief & anti-cav. - W/Ref. 23 - 2500 PSI - Use in tilt cylinder base end port

59

79K7

O RING 10

60

6816250

KIT, SEAL See BTI374 - Ref. 2, 4, 42, 43 & 52 - for one spool - Was 6803605 - A

60

6632279

KIT, SEAL Ref. 17 - 20

60

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

60

6816715

KIT, SEAL See BTI374 - Ref. 4, 13, 17-20, 23-25, 43, 45, 46, 52 & 59 - Was 6596311 - A
