Запчасти Bobcat 700s AUXILIARY HYDRAULICS (S/N 5096 40660 & Above, 5096 16542-34999) HYDRAULIC SYSTEM

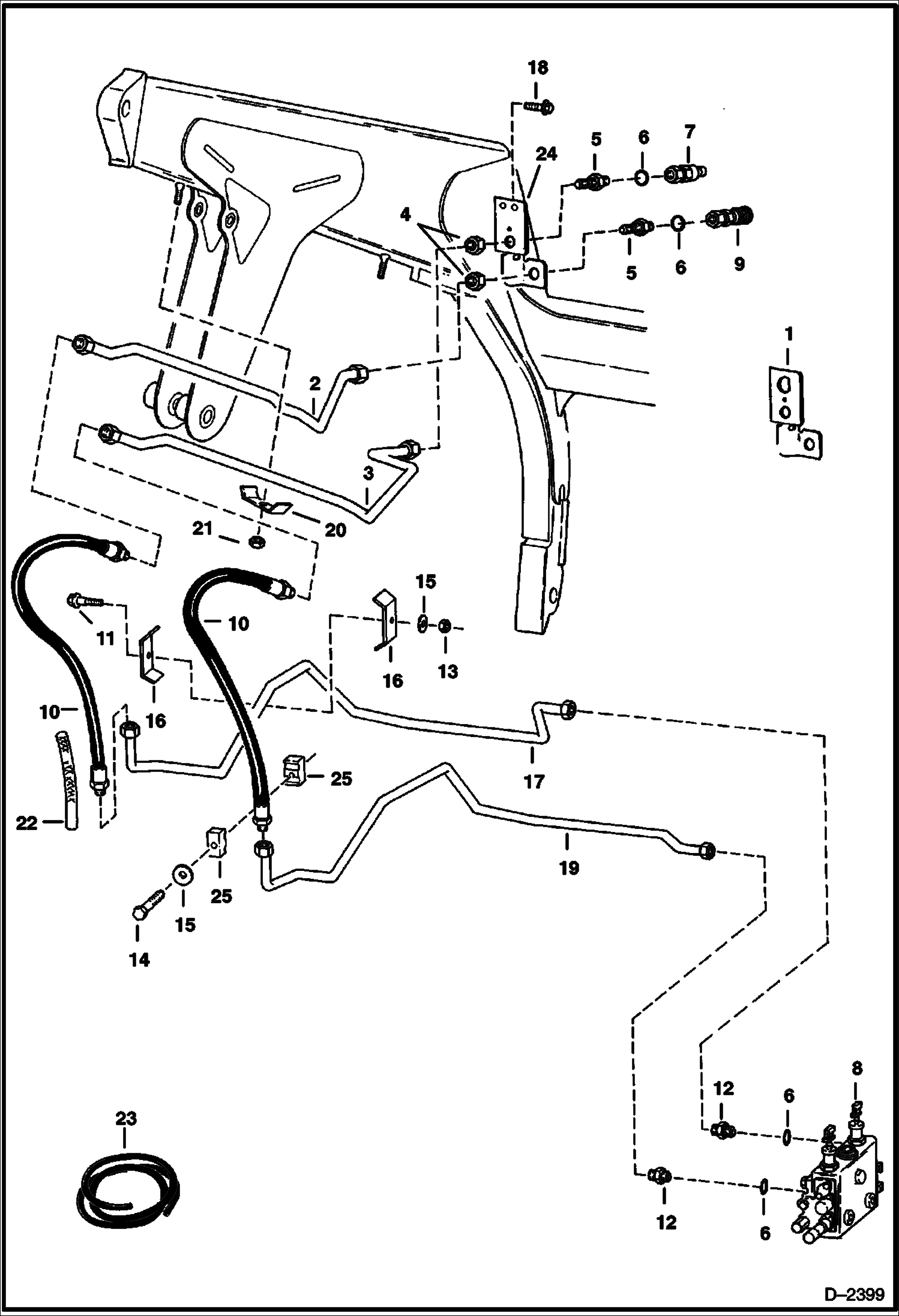

Схема запчастей Bobcat 700s - AUXILIARY HYDRAULICS (S/N 5096 40660 & Above, 5096 16542-34999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

MOUNT NLA - for FF couplers - Order Ref. 24 - Was 6711672 - A

2

6711745

TUBE

3

6711744

TUBE

4

86F7

LOCK NUT

5

6711625

FITTING W/Ref. 6 - flat boss face

5

CONNECTOR NLA - W/Ref. 6 - flat boss face

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K12

O RING 10 flat boss face

6

99K12

O RING tapered boss face

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

HOSE NLA - Use W/Ref. 22 - Order 6715930 Hose - Was 6703814 - A

10

6715930

HOSE W/cover

11

84G3732

BOLT

12

15K8

FITTING W/Ref. 13 - flat boss face

12

ADAPTER NLA - W/Ref. 13 - tapered boss face - Was 15KN00008B - A

12

97K12

O'RING flared end

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

13

95D6

NUT Was 91D000006B - A

14

37C540

BOLT Was 35C000540B - B

15

872229

WASHER

16

6592506

CLAMP

17

6712961

TUBE

18

84G3112

BOLT 5

19

6712962

TUBE

20

6502203

CLAMP

21

83D5

NUT 5

22

COVER NLA - 30'' (762 mm) long - Order Ref. 23

23

6705749

SHIELD bulk - Sold Per Foot - 1.85'' (46,9 mm) ID poly corrugated

24

6713850

MOUNT

25

6701892

CLAMP

Выбрано товаров: 34
