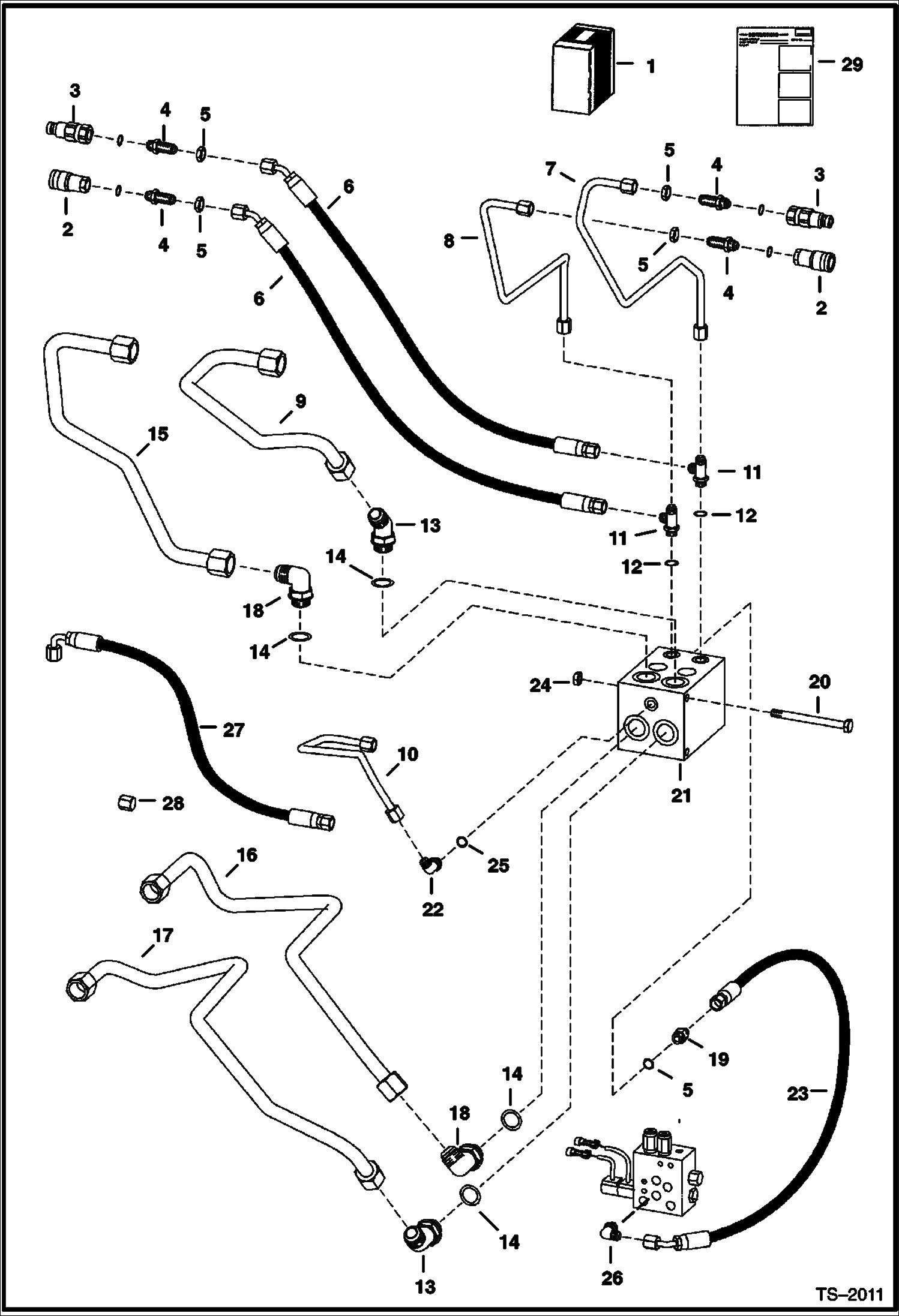

Запчасти Bobcat 700s REAR AUXILIARY (S/N 500K11038 & Below, 517619258 & Below, 518012218 & Below, 518112089 & Below, 519018909 & Below, 519212154 & Below) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-29 - Order components - Was 6718289 - D

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6716089

CONNECTOR

5

86F5

NUT

6

6718286

HOSE

7

6718204

TUBE

8

6718203

TUBE

9

6718190

TUBE

10

6718207

TUBE

11

TEE NLA - W/Ref. 12 - tapered boss face - Was 21KV00005B - A

11

97K6

O RING flared end

11

21KB0606

FTG HYD STRAIGHT TEE flat boss face - W/Ref. 12

12

99K6

O RING tapered boss face

12

79K6

O RING 10 flat boss face

13

ELBOW NLA - W/Ref. 14 - tapered boss face - Was 18KV00008B - A

13

97K12

O'RING flared end

13

18KB1212

FITTING, HYD ELBOW W/Ref. 14 - flat boss face

14

99K12

O RING tapered boss face

14

79K12

O RING 10 flat boss face

15

6718191

TUBE

16

6718192

TUBE

17

6718193

TUBE

18

ELBOW NLA - W/Ref. 14 - tapered boss face - Was 17KV00008B - A

18

97K12

O'RING flared end

18

17KB1212

FITTING, HYD ELBOW W/Ref. 14 - flat boss face

19

ADAPTER NLA - W/Ref. 12 - tapered boss face - Was 15KV00005B - A

19

97K6

O RING flared end

19

15KB0606

FITTING, HYD CONNECTOR flat boss face

20

17C680

BOLT

21

6675073

VALVE, AUX REAR See Illustration REAR AUXILIARY VALVE/ TS1362 WAS 6665572 - A

22

ELBOW NLA - W/Ref. 25 - tapered boss face - Was 6718182 - A

22

97K6

O RING flared end

22

17KB0604

ELBOW UNION W/Ref. 25 - flat boss face

23

6718208

HOSE

24

83D6

NUT 5

25

99K4

O'RING tapered boss face

25

79K4

O RING 10 flat boss face

26

ELBOW NLA - W/Ref. 12 - tapered boss face - Was 17KV00005B - A

26

97K6

O RING flared end

26

17KB0606

FITTING W/Ref. 12 - flat boss face

27

6714808

HOSE

28

36K5

CAP

29

6900837

INSTRUCTIONS Was 6900877 - B,D
