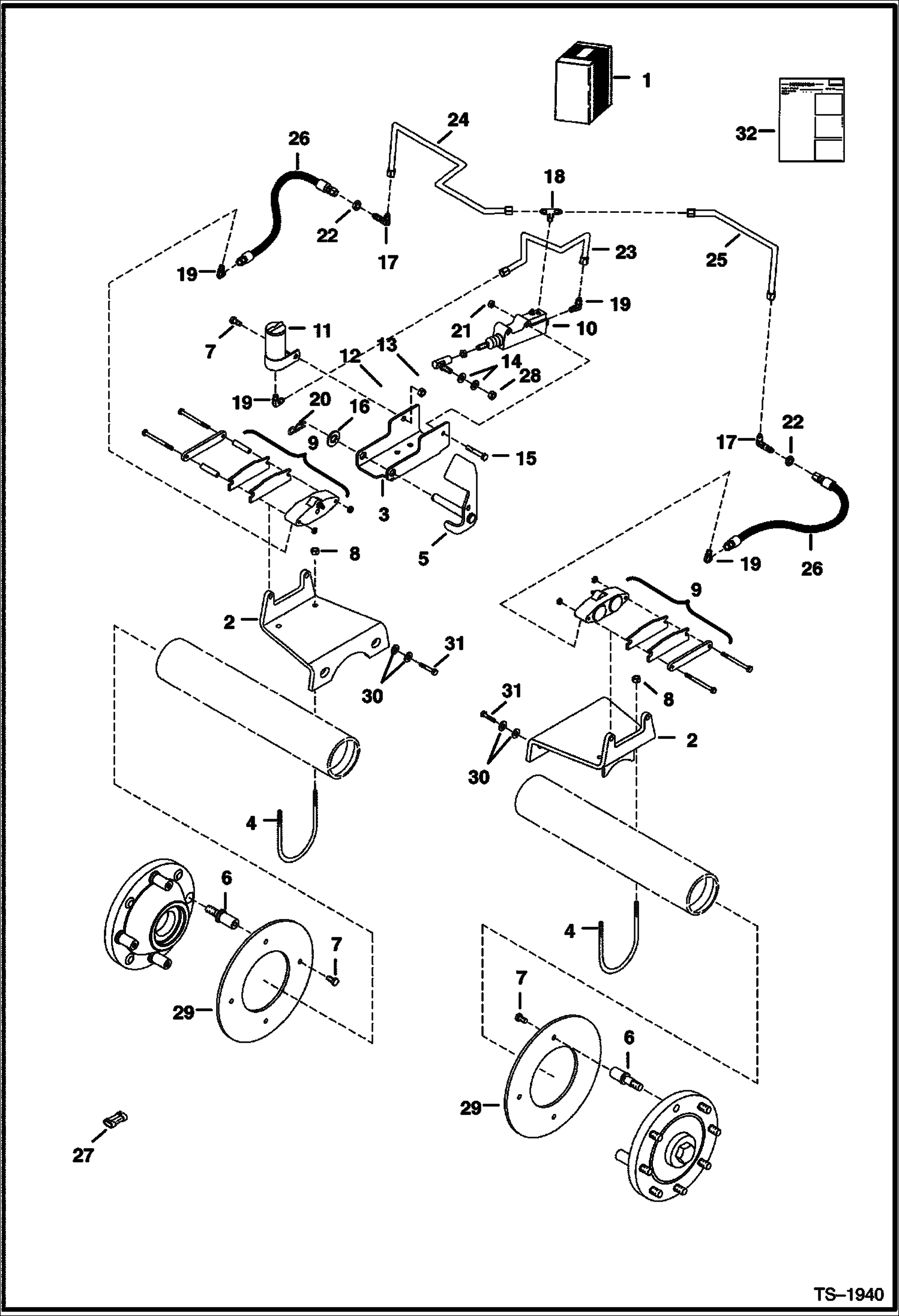

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Caliper Brake Kit) ACCESSORIES & OPTIONS

1

6719150

KIT Ref. 2-32

2

6718728

MOUNT ASSY. caliper - Was 6710469 - B,D

3

6709236

MOUNT pedal

4

6709237

CLAMP

5

6709239

PEDAL ASSY. brake

6

6709229

BOLT wheel

7

17C612

BOLT 5

8

95D6

NUT Was 91D000006B - A

9

6666932

BRAKE See Illustration EUROPEAN ACCESSORIES/ B14851

10

6666933

CYLINDER See Illustration EUROPEAN ACCESSORIES/ B14851

11

6661117

TANK

12

6599744

BALL JOINT

13

8D6

NUT 5

14

25E17

WASHER 5

15

17C532

BOLT 5

16

25E25

WASHER 10

17

45K3

FITTING Was 45KV00003B - B

17

97K4

O'RING flared end

18

TEE NLA - Was 98F000003B - A

19

83F3

ELBOW 5

20

1318565

COTTER PIN

21

91D5

NUT 5

22

86F3

LOCKNUT

23

6709400

TUBE

24

6718205

TUBE Was 6709409 - B,D

25

6718206

TUBE Was 6709410 - B,D

26

6709547

HOSE Was 6709545 - B

27

6667139

CAP

28

62D6

NUT 5

29

6709234

DISC brake

30

25E11

WASHER Was 27E000008B - B,D

31

31C824

BOLT 10

32

6900934

INSTRUCTIONS Was 6724380 - B
