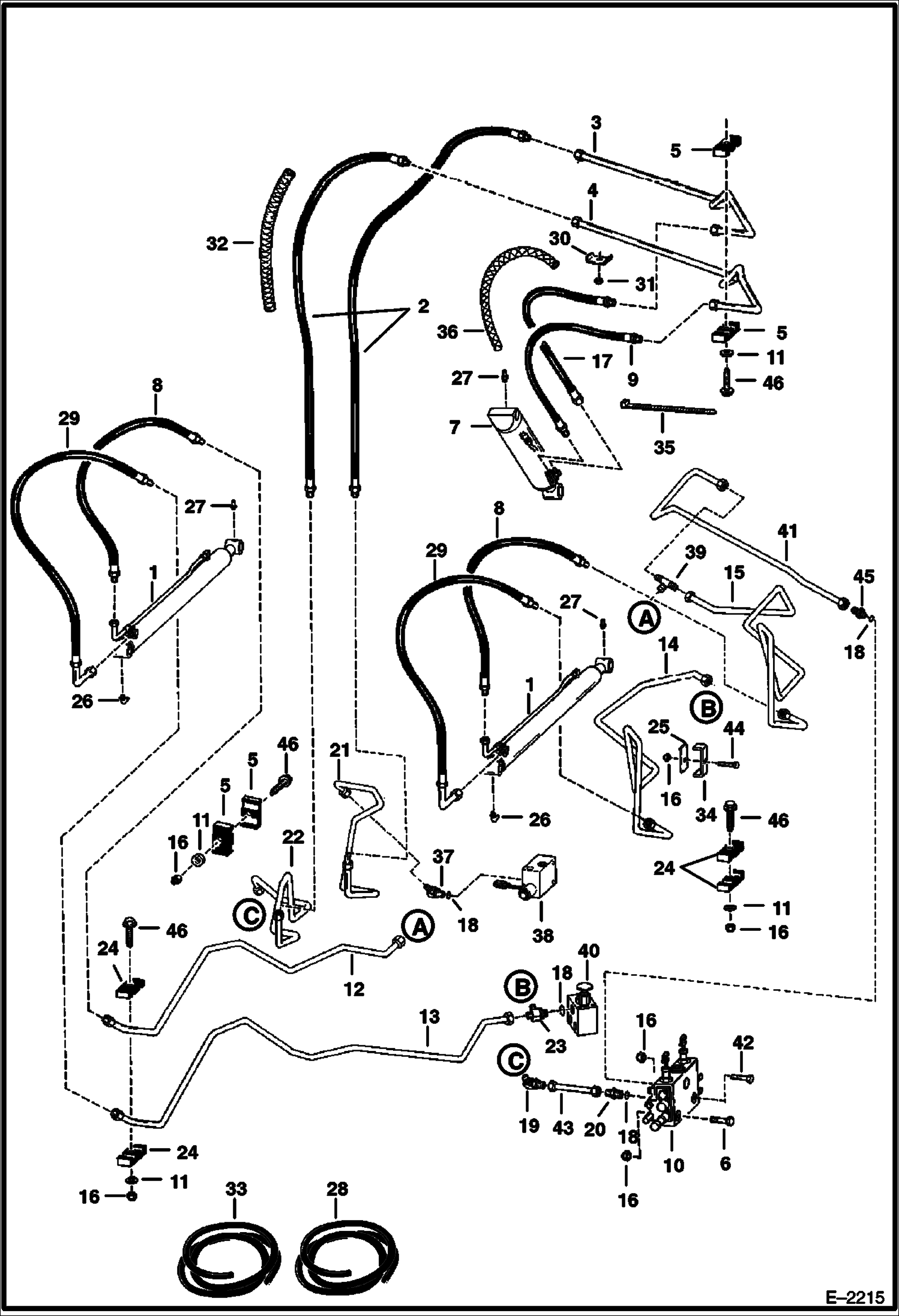

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5096 35001-40659, 5096 16001-16541) HYDRAULIC SYSTEM

1

6537254

CYLINDER See Illustration LIFT CYLINDER/ B17293 - lift

2

HOSE NLA - Use W/Ref. 32 - Order 6715986 Hose - Was 6703562 - A

2

6715986

HOSE W/Cover

3

6703920

TUBE

4

6703921

TUBE

5

6701893

CLAMP

6

17C532

BOLT 5

7

CYLINDER - tilt

8

6702674

HOSE

9

6704335

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219

11

872229

WASHER

12

6706638

TUBE lift

13

6706640

TUBE lift

14

6706642

TUBE lift - may need to rotate Ref. 23

15

6708213

TUBE lift

16

85D5

NUT 5

17

6704336

HOSE

18

79K10

O RING 10 flat boss face

18

99K10

O'RING tapered boss face

19

77F7

ELBOW Was 77K000007B - B,D

20

15K7

FITTING W/Ref. 18 - flat boss face

20

15KB1010

FITTING, HYD CONNECTOR W/Ref. 18 - tapered boss face - Was 15KV00007B - A

20

97K10

O-RING 10 flared end

21

6706647

TUBE tilt

22

6706646

TUBE tilt

23

6578183

TEE See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 - W/Ref. 18

24

6701892

CLAMP

25

6706784

PAD

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6656155

HOSE COVER bulk - sold per foot

29

6702673

HOSE

30

6502203

CLAMP

31

85D6

NUT, 5

32

COVER NLA - 30'' (762 mm) long - Order Ref. 33

33

6705749

SHIELD bulk - Sold Per Foot -1.85'' (46,9 mm) I.D. poly corrugated

34

6706783

CLAMP

35

6610510

TIE

36

COVER NLA - 18'' (457,2 mm) long - Order Ref. 28

37

17K7

ELBOW W/Ref. 18

38

6664849

VALVE See Illustration TILT LOCK VALVE/ C3387 - tilt lock

39

10K6

FITTING

40

6664850

VALVE See Illustration LIFT LOCK VALVE/ C3386 - lift lock

41

6705141

TUBE lift

42

17C540

BOLT

43

6705069

TUBE tilt

44

35C536

BOLT

45

731794

CONNECTR W/Ref 18 - flat boss face

45

6715184

ADAPTER W/Ref.18 - tapered boss face

45

97K8

O-RING flared end

46

84G3728

BOLT
