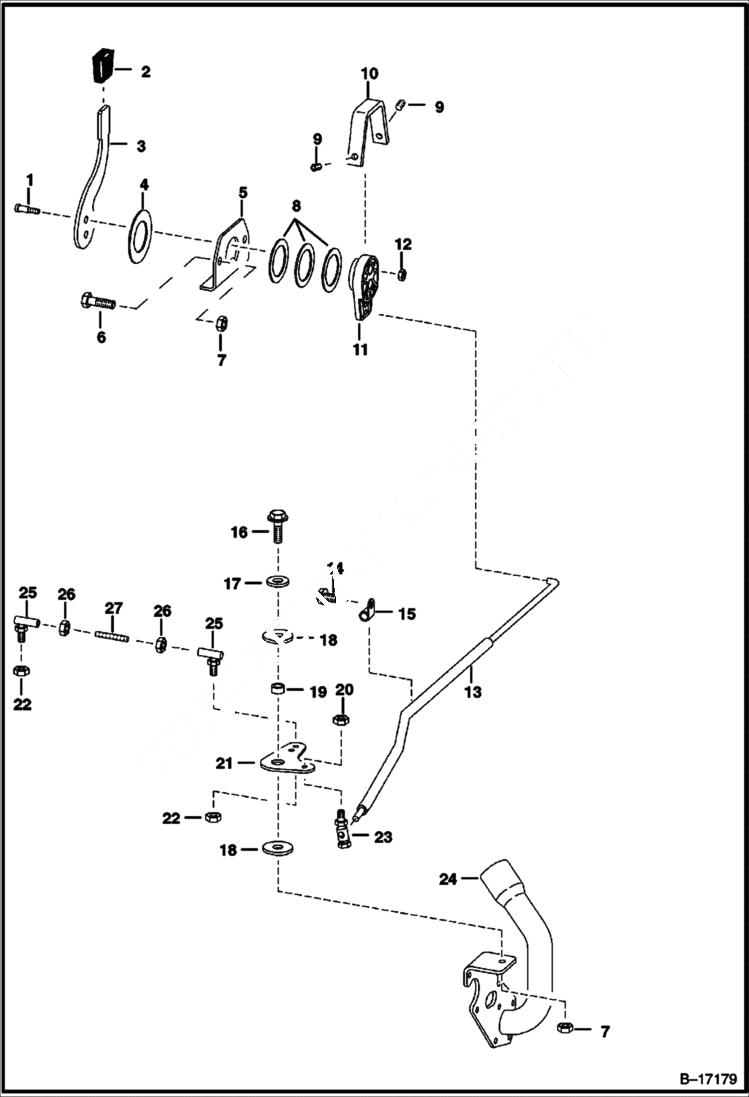

Запчасти Bobcat 700s THROTTLE POWER UNIT

1

38C610

BOLT shoulder

2

6564452

GRIP

3

6705452

LEVER

4

6567962

WASHER

5

6576262

MOUNT

6

17C626

BOLT

7

95D6

NUT Was 91D000006B - A

8

6630945

WASHER

9

6706572

SET SCREW

10

6576261

COVER Was 6734520 - A

11

LEVER NLA - 2-hole rod attachment - Order 6734416 lever - Was 6709022 - A

11

6734416

LEVER 3-hole rod attachment

12

85D5

NUT 5

13

6717566

ROD

14

84G3712

BOLT 5

15

31H38

CLAMP

16

84G3716

SCREW 5

17

25E18

WASHER

18

6700170

WASHER plastic

19

6564343

SPACER

20

59D4

NUT 5 Was 85D000004B - B

21

6578268

BELLCRANK

22

66D4

NUT Was 86D000004B - B

23

6557291

BALL JOINT

24

6719048

MOUNT See Illustration GEARCASE/ B13160 FUEL SHUTOFF SOLENOID & OIL FILL

25

6554858

BALL JOINT

26

62D4

NUT

27

6576252

ROD
