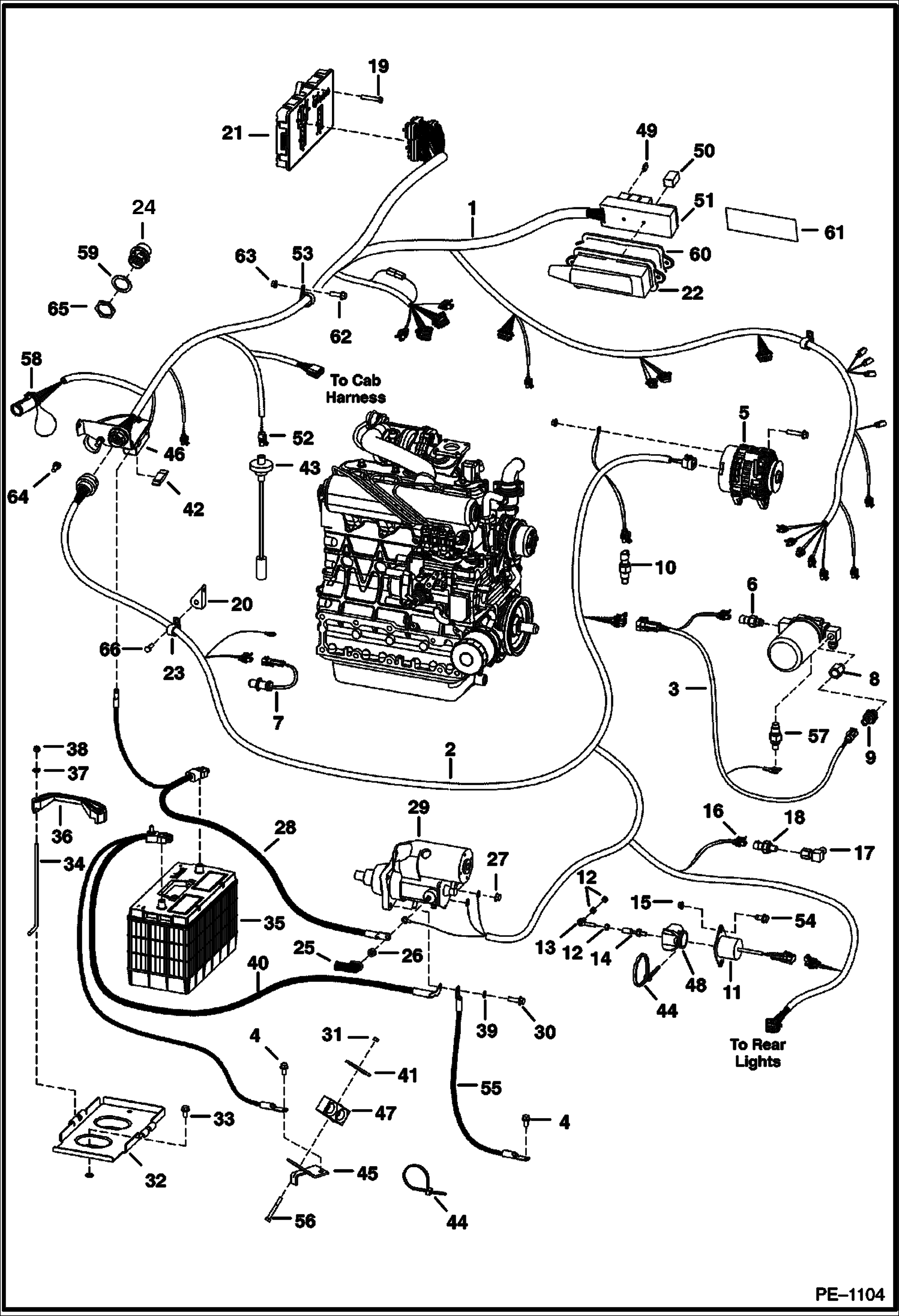

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 500K10038 & Below, 517617999 & Below, 518019999 & Below, 518111999 & Below, 519015999 & Below, 519211999 & Below) ELECTRICAL SYSTEM

1

6718912

HARNESS See Illustration CONTROLS ELECTRICAL/ PE1041 MAIN FRAME - W/Ref. 49-51 & 53

1

6718913

HARNESS See Illustration CONTROLS ELECTRICAL/ PE1042 MAIN FRAME - AHC - W/Ref. 49-51 & 53

2

6718871

HARNESS engine - W/Ref. 20 & 66

3

6715975

HARNESS filter

4

84G3712

BOLT 5

5

ALTERNATOR See Illustration ALTERNATOR/ C3312

6

6718417

SENDER hyd. temp. - Was 6727869 - D

7

6684037

SENSOR rpm - Was 6658260 - B

8

6718948

SNUBBER W/filter

8

6675278

FILTER

9

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

10

6718415

SWITCH eng. temp.

11

6681513

SOLENOID fuel shut off - Was 6667993 - A

12

62D4

NUT

13

6578363

ROD END swivel

14

6578366

BALL JOINT

15

61D4

NUT 5

16

6672750

CONNECTOR 3-pin

17

6707040

ELBOW

18

6674315

SENSOR eng oil pressure

19

43C616

BOLT Was 35C000616B - B

20

6714979

BRACKET

21

CONTROLLER See BTI339 NLA - Bobcat - Was 6678068 - A

21

CONTROLLER NLA - 4 connectors - w/o boost - Order 6682421 - Was 6678673 - A

21

6682421

CONTROLLER, BOBCAT 4 connecters - w/ boost

22

6718659

HOUSING fuse block

23

6675171

CLAMP

24

6664584

CONNECTOR 21-pin

25

6560172

COVER

26

4DM10

NUT

27

4DM5

NUT

28

6719060

CABLE pos. - 29''(736,6 mm) long

28

6727528

CABLE pos. - 33''(838,2 mm) long

29

STARTER See Illustration STARTER/ D2297

30

35C620

BOLT 5

31

91D5

NUT 5

32

6718260

BATTERY PAN

33

84G3716

SCREW 5

34

6576280

BOLT

35

6674687

BATTERY, DRY 600 AMP

36

6569203

CLAMP

37

25E15

WASHER

38

59D5

NUT 5

39

6E6

WASHER

40

6719059

CABLE ground - 19''(482,6 mm) long

40

6727527

CABLE ground - 23''(584,2 mm) long

41

6715132

RETAINER

42

6675155

FUSE, 100A mega

42

6675154

HOLDER high amp fuse

43

7179837

SENSOR FUEL W/gasket - Was 6680436 - A

43

6717579

GASKET

44

6610510

TIE

45

6719230

BRACKET Use W/Ref. 28 (6719060 Cable) & Ref. 40 (6719059 Cable)

45

6715131

BRACKET Use W/Ref. 28 (6727528 Cable) & Ref. 40 (6727527 Cable) - Was 6727508 - A

46

6726503

BRACKET Was 6718970 - A

47

6715197

CLAMP

48

6664286

BOOT Also Order Ref. 44

49

6654806

FUSE, 15A

49

6702444

FUSE 25A 5

49

6718034

FUSE, 30A

50

6679820

RELAY switch - Was 6674376 - A

51

6673200

FUSE BLOCK

52

6646383

CONNECTOR fuel sender

52

6648330

TERMINAL female - Was 6632946 - A

53

6674673

CLAMP

54

17C410

BOLT 10

55

6565170

CABLE Was 6713821 - B,D

56

17C540

BOLT Was 6716744 - A

57

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ B17469 - hyd. chg. pressure

58

6667533

COVER diagnostics

59

6664971

WASHER

60

6725302

GASKET See Illustration PANELS/ PE1018

61

DECAL See Illustration PANELS/ PE1018 - NLA - fuse/relay - 2.10'' X 9.40'' (53,3 mm X 238,8 mm) - Order 6718774 decal

61

6718774

DECAL See Illustration PANELS/ PE1018 - 2'' X 7'' (50,8 mm X 177,8 mm)

62

35C616

BOLT 5

63

95D6

NUT Was 91D000006B - A

64

57D6

NUT 5 Was 59D000006B - B

65

6664972

NUT

66

17C512

BOLT 5
