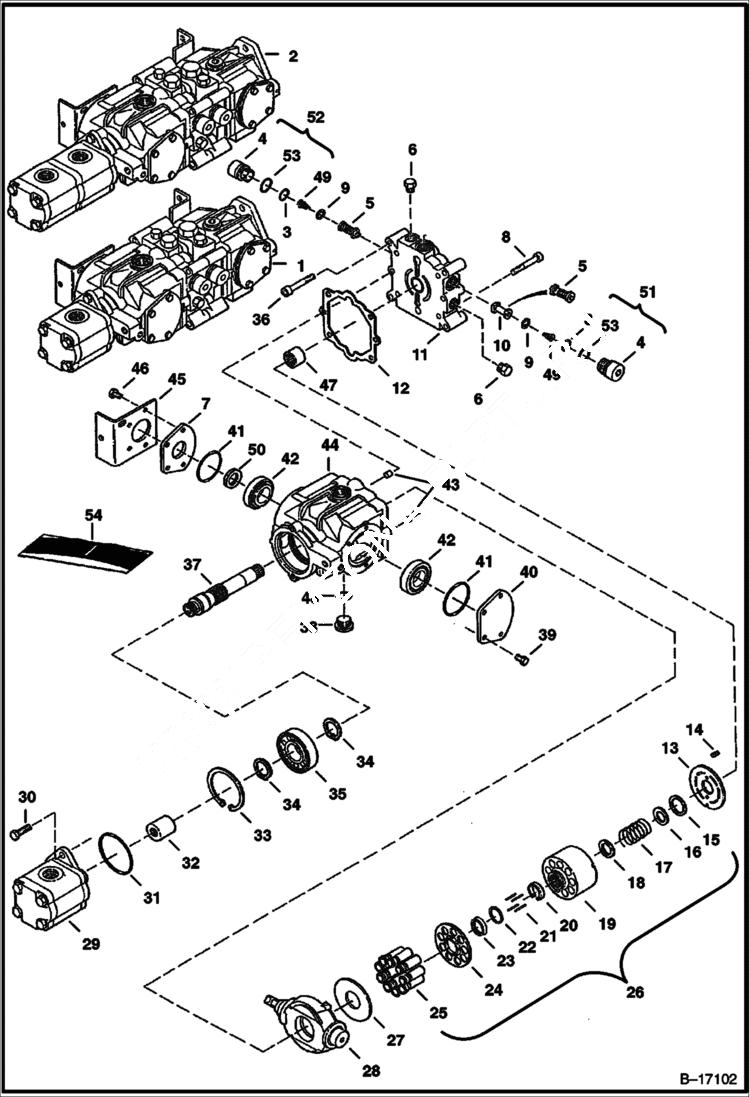

Запчасти Bobcat 700s HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

PUMP, HYD TANDEM NLA - Model 4445070 - W/aluminum gear pump - Order 7001067 pump & 6675343 gear pump - must use 6576196 bracket & 6706096 bracket from original pump - Was 6674378 - A

1

PUMP NLA - Model 4445096 - W/cast iron gear pump - Order 6686702 pump or 6686702REM pump - must use 6576196 bracket & 6706096 bracket from original pump - Was 6677647 - A

1

PUMP NLA - Model 4445132 - W/cast iron gear pump - Order 6686702 pump or 6686702REM pump - must use 6576196 bracket & 6706096 bracket from original pump - Was 6681635 - A

1

PUMP NLA - Model 4445160 - W/cast iron gear pump - Order 6686702 pump or 6686702REM pump - must use 6576196 bracket & 6706096 bracket from original pump - Was 6685032 - A

1

PUMP NLA - Model 4445192 - Order 6686702 pump or 6686702REM pump - must use 6576196 bracket & 6706096 bracket from original pump - Was 6687632 - A

1

6686702

PUMP, HYD TANDEM Model 4445187

1

6686702REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

PUMP NLA - Model 4445071 - W/double aluminum, gear pump for high flow - must use 6576196 bracket & 6706096 bracket from original pump - Order 7001067 pump & 6675344 gear pump - Was 6674379 - A

2

PUMP NLA - Model 4445097 - W/double gear pump for high flow - Order 6686704 pump and replace new mounting brackets with brackets from original pump - Was 6681636 - A

2

PUMP NLA - Model 4445161 - W/double cast iron gear pump for high flow - Order 6686704 pump or 6685033REM pump - Was 6685033 - A

2

6685033REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

PUMP NLA - Model 4445202 - W/double cast iron gear pump for high flow - Order 6686704 pump - Was 6687633 - A

2

PUMP NLA - Model 4445186 - W/double gear pump for high flow - must use 6576196 bracket & 6706096 bracket from original pump - Order 7001069 pump & 6686705 gear pump - Was 6686704 - A

3

79K8

O RING 10

4

PLUG NLA - Order Ref. 51 or 52

5

RELIEF VALVE NLA - 5000 PSI (345 bar) - Order Ref. 52

6

6645086

PLUG

7

6657067

COVER Was 6675338 - A

8

6650637

BOLT

9

RETAINER NLA - Order Ref. 51 or 52

10

CHECK VALVE NLA - poppet - Order Ref. 51

11

6669405

CAP, END

12

6650634

GASKET

13

See BTI361 NLA - For Models 4445070, 4445071, 4445096, 4445097, 4445132, 4445160 & 4445161 Pump - Was 6675339 - A

13

6687773

PLATE, PUMP HYD For Models 4445192 & 4445202 Pump

14

6650636

PIN

15

RETAINER NLA - Order Ref. 26

16

WASHER NLA - Order Ref. 26

17

SPRING NLA - Order Ref. 26

18

WASHER NLA - Order Ref. 26

19

BLOCK NLA - Order Ref. 26

20

6650630

RETAINER

21

6650629

PIN

22

6666338

WASHER

23

RETAINER NLA - Order Ref. 26

24

RETAINER NLA - Order Ref. 26

25

PISTON ASSY NLA - Order Ref. 26

26

6671512

GROUP, ROTARY Was 6675341 - B,D

27

6650627

PLATE

28

6685344

SWASHPLATE W/threaded shaft hole - Was 6671513 - A

29

GEAR PUMP See Illustration GEAR PUMP/ TS1022 SINGLE - ALUMINUM - For Ref. 1 (6674378 PUMP)

29

GEAR PUMP See Illustration GEAR PUMP/ TS1022 SINGLE - CAST IRON - For Ref. 1 (6677647 PUMP)

29

GEAR PUMP See Illustration HIGH FLOW HYDRAULICS/ TS1078 DOUBLE - ALUMINUM - For Ref. 2 (6674379 PUMP)

29

GEAR PUMP See Illustration HIGH FLOW HYDRAULICS/ TS1078 DOUBLE CAST IRON -For Ref. 2 (6677648 PUMP)

30

6666339

BOLT

31

6645080

O-RING For Ref. 1

31

6660339

GASKET For Ref. 2

32

6671509

COUPLER

33

669863

RING, SNAP

34

658128

RING, SNAP

35

654299

BEARING

36

6652018

BOLT

37

6669407

SHAFT

38

47K8

PLUG W/Ref. 48

39

6650668

BOLT

40

6657068

COVER

41

6660814

O-RING

42

6669411

BEARING

43

6675342

PIN

44

6669403

HOUSING

45

6576196

MOUNT

46

6650668

BOLT

47

6650635

BEARING

48

79K12

O RING 10

49

SPRING NLA - Order Ref. 51 or 52

50

6678226

SEAL, OIL Was 6673881 - A

51

6670684

CHECK VALVE

52

6671510

RELIEF VALVE

53

6657028

O-RING

54

6671516

KIT, SEAL Ref. 3, 12, 41 & 53 - Also includes Ref. 7, 9, 13, 34, 35, 42, 43, 45 & 46 on previous page
