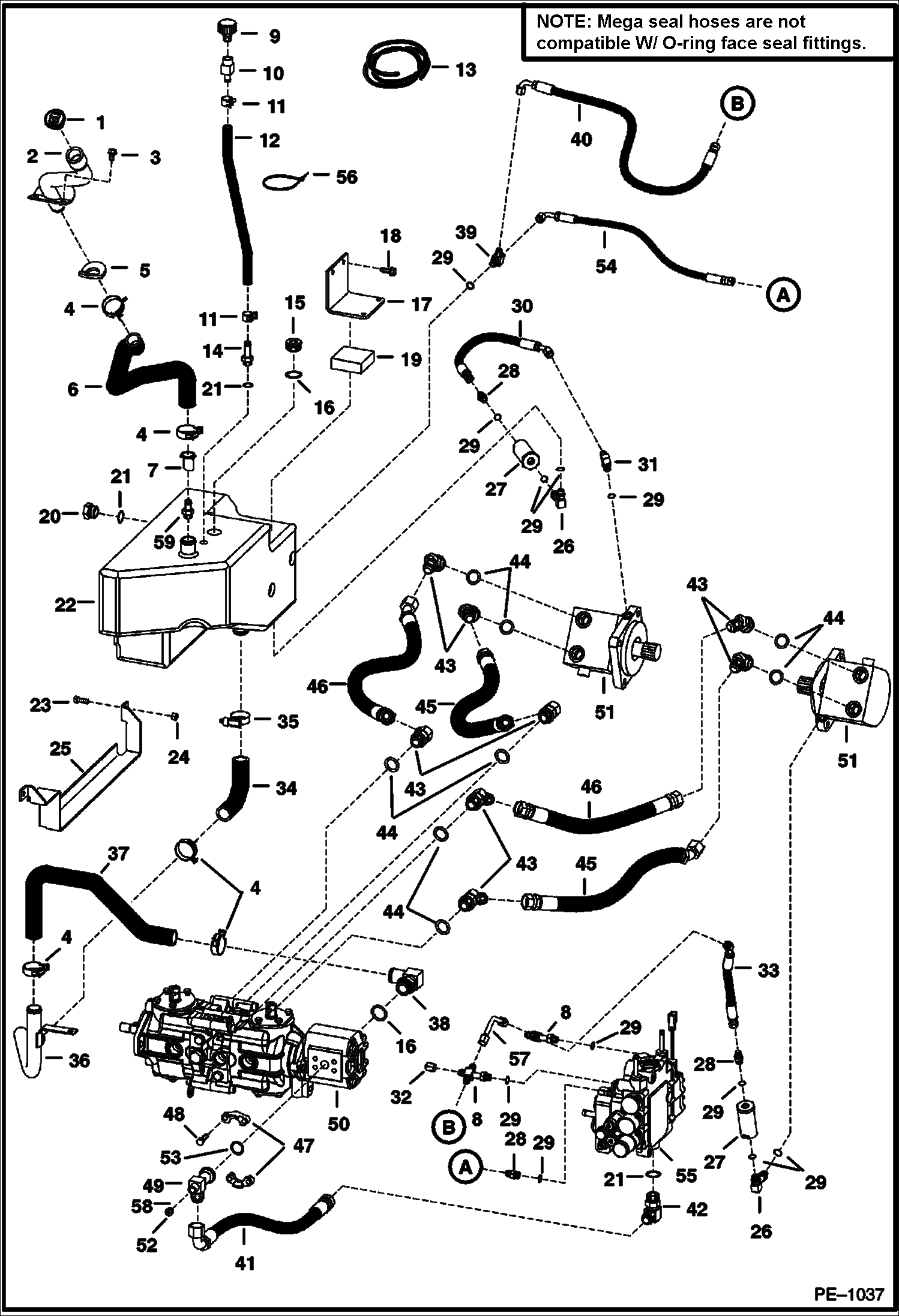

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 500K11038 & Below, 517619258 & Below, 518012218 & Below, 518112089 & Below, 519018909 & Below, 519212154 & Below) HYDROSTATIC SYSTEM

1

6717827

CAP

2

6717830

TUBE

3

84G3710

SCREW

4

5HM42

HOSECLAMP

5

6718772

GASKET

6

6718020

HOSE

7

6726258

SCREEN

7

6726258

SCREEN

7

6726258

SCREEN

7

6726258

SCREEN

7

6726258

SCREEN

8

6817553

CROSS See Illustration HYDRAULIC CONTROL VALVE/ B17144 W/Ref. 29 - flat boss face - Was 6817553 - A

8

97K6

O RING flared end

9

7025626

VENT, BREATHER - Was 6684923 - A

10

6717389

ADAPTER

11

5HM20

CLAMP

12

HOSE NLA - 17.25''(438,1 mm) long - Order Ref. 13

13

6578171

HOSE, BULK / FOOT bulk - sold per foot - Was 6654057 - B

14

1310706

FITTING HOSE

15

47K10

PLUG W/Ref. 16

16

99K16

O-RING tapered boss face

16

79K16

O RING 10 flat boss face

17

6718498

BRACKET

18

84G3716

SCREW 5

19

6716449

PAD bumper

20

6665915

GAUGE W/Ref. 21 - flat boss face

20

6734563

WASHER KIT

20

6734561

WASHER

20

25K30118

O RING 10

21

99K12

O RING tapered boss face

21

79K12

O RING 10 flat boss face

22

TANK See BTI346 NLA - W/threaded inlet port - Use W/Ref. 7 - Was 6717112 - B

22

TANK See BTI346 - NLA - W/O threaded inlet port - Was 6717112 - A

23

17C616

BOLT 5

24

61D6

NUT 5

25

6717145

BRACKET

26

6715190

ELBOW W/Ref. 29 - check boss face to determine correct replacement o-ring

27

6661022

FILTER, OIL HYD IN-LINE

28

15KB0606

FITTING, HYD CONNECTOR W/Ref. 29 - check boss face to determine correct replacement O-ring

28

97K6

O RING flared end

28

21KB0606

FTG HYD STRAIGHT TEE See Illustration HIGH FLOW HYDRAULICS/ PE1057 - W/Ref. 29 - check boss face to determine correct replacement o-ring - Was 21KV00005B - A

28

97K6

O RING flared end

29

99K6

O RING tapered boss face - B

29

79K6

O RING 10 flat boss face

30

6704631

HOSE

31

17KB0606

FITTING W/Ref. 29 - check boss face to determine correct replacement o-ring - Was 17KV00005B

31

97K6

O RING flared end

32

36K5

CAP

33

6728079

HOSE Was 6717332 - A

34

6717905

HOSE

35

6672281

CLAMP

36

6717909

TUBE

37

6717908

HOSE

38

6715191

ELBOW W/Ref. 16 - check boss face to determine correct replacement o-ring

39

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 29 - check boss face to determine correct replacement o-ring - Was 21KV00005B - A

39

97K6

O RING flared end

39

6578209

TEE for High Flow Hyd - W/Ref. 29 - check boss face to determine correct replacement o-ring - Was 6718250 - A

39

97K6

O RING flared end

40

6714808

HOSE W/O front aux. - Was 6711166 - B

40

6717385

HOSE See Illustration AUXILIARY HYDRAULICS/ PE1055 W/ FRONT AUX.

41

6717144

HOSE

42

17KB1212

FITTING, HYD ELBOW W/Ref. 21 - check boss face to determine correct replacement o-ring - Was 17KV00008B

42

97K12

O'RING flared end

43

6737453

ELBOW W/Ref. 44 - check boss face to determine correct replacement o-ring - Was 6718181 - A

43

99K12

O RING tapered boss face

44

79K12

O RING 10 flat boss face - Was 58K000018B - B

45

6675144

HOSE, HYD ASSY mega seal - SEE NOTE

46

6736200

HOSE mega seal - SEE NOTE - Was 6675143 - A

47

19J12

CLAMP

48

17C620

BOLT

49

7103953

TEE split flange - Was 6717662 - A

50

PUMP See Illustration HYDROSTATIC PUMP/ B17103

51

MOTOR See Illustration HYDROSTATIC MOTOR/ C3431

52

90KV5

PLUG W/Ref. 58

53

58K214

O RING 10

54

6716391

HOSE

55

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17144

56

6610510

TIE

57

6577690

TUBE See Illustration HYDRAULIC CONTROL VALVE/ B17144

58

95K6

O'RING

59

6717815

ADAPTER
