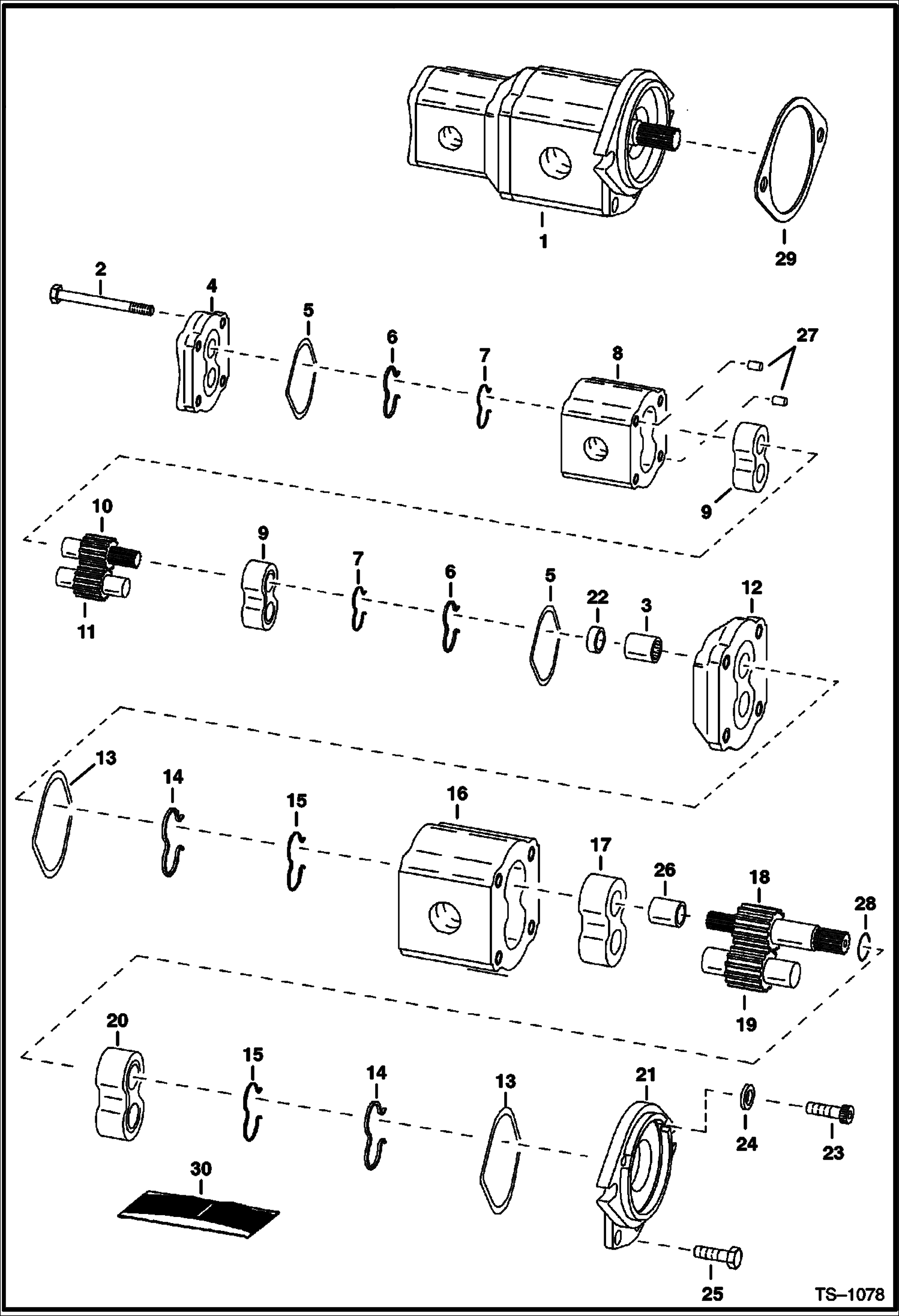

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (Double Gear Pump) HIGH FLOW HYDRAULICS

1

6675344

PUMP See Illustration HYDROSTATIC PUMP/ B17103 MODEL B5501-37614 - USE W/6674379 PUMP

2

BOLT NSS

3

COUPLER NSS

4

COVER NSS

5

O-RING NSS - seal

6

SEAL NSS

7

RING NSS

8

BODY NSS

9

BEARING NSS

10

GEAR NSS - drive

11

GEAR NSS

12

COVER NSS

13

O-RING NSS - seal

14

SEAL NSS

15

RING NSS

16

BODY NSS

17

BEARING NSS

18

GEAR NSS - drive

19

GEAR NSS - idler

20

BEARING NSS

21

COVER NSS

22

BUSHING NSS

23

BOLT NSS

24

SEAL NSS

25

BOLT NSS

26

SPACER NSS

27

DOWEL NSS

28

RING NSS - retaining

29

6660339

GASKET

30

6678853

SEAL KIT Ref. 5-7, 13-15, 24 & 28 - Use W/Ref. 1 (6675344 Pump) - Was 6674370 - A
